Panasonic SA-AK22 - Installation of the Disc Tray after Replacement

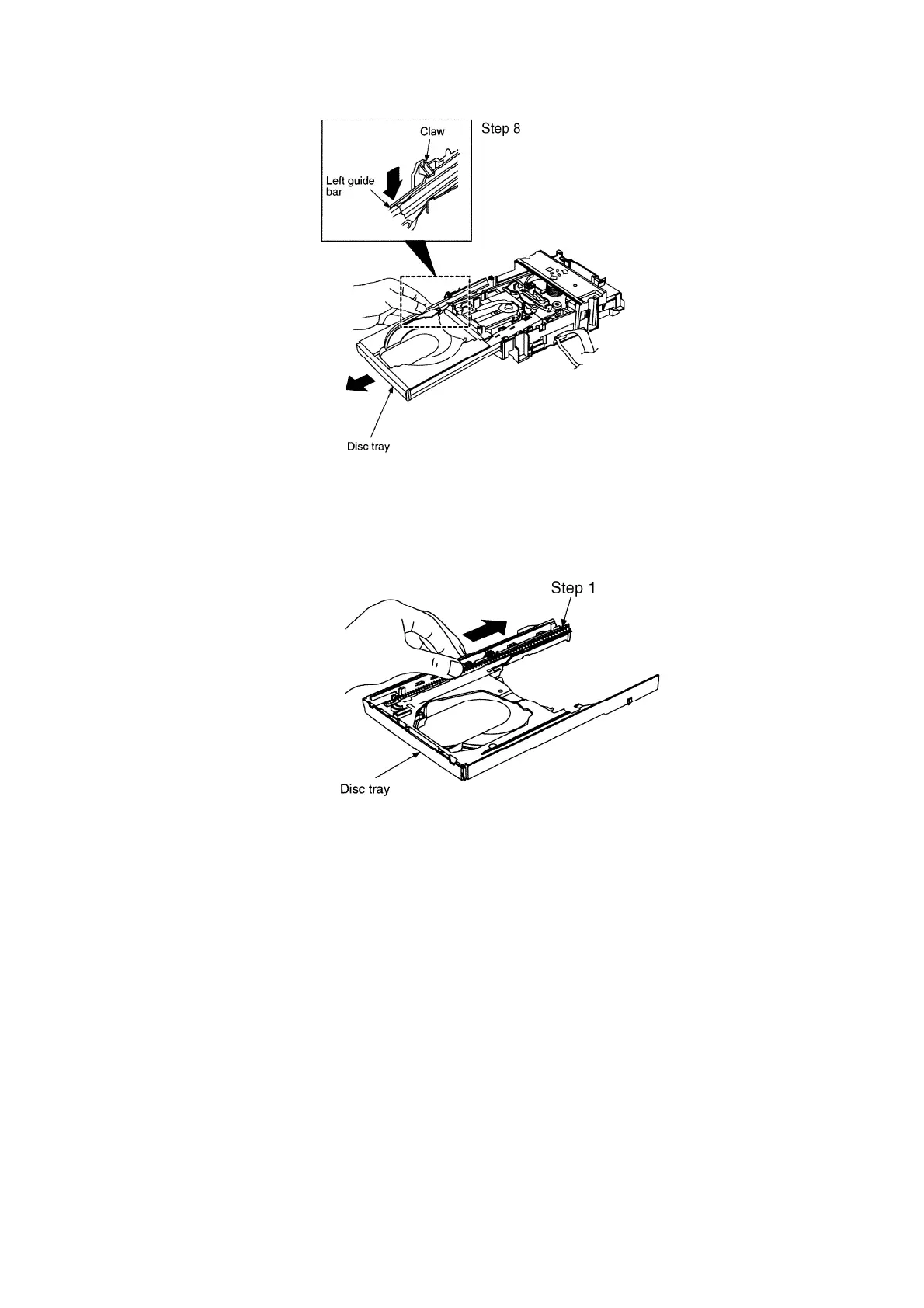

Step 8 With forcing the left guide bar manually because the left guide bar interfers with claw, draw the
disc tray.
- Installation of the disc tray after replacement
Step 1 Slide the drive rack fully in the direction of arrow.
27
