Panasonic SA-AK22 - Traverse Unit and Disc Tray Procedures

8.3. Disassembly and assembly of the Traverse Unit

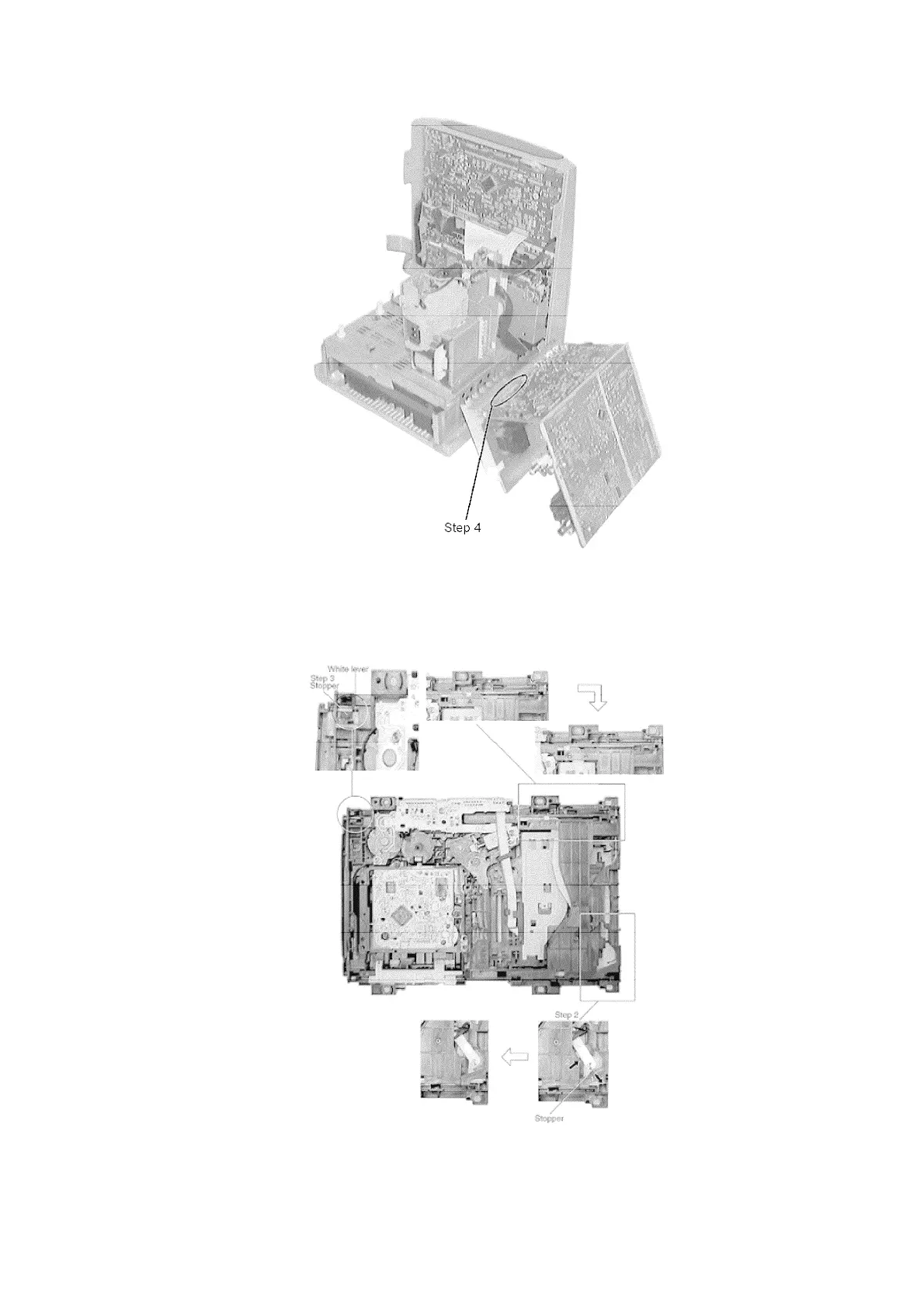

Step 1 Push the lever from position A to B.
Step 2 Pull the stopper (black) in the direction of arrow 1 and push the lever in the direction of arrow 2.
Step 3 Push the stpeer (black) down until the white lever eject out.
Step 4 Lift up the traverse unit and slide out the unit as shown.
- Replacement of Traverse Unit
23
