Panasonic SA-AK22 - Checking for Panel, Main and Deck P.C.B.

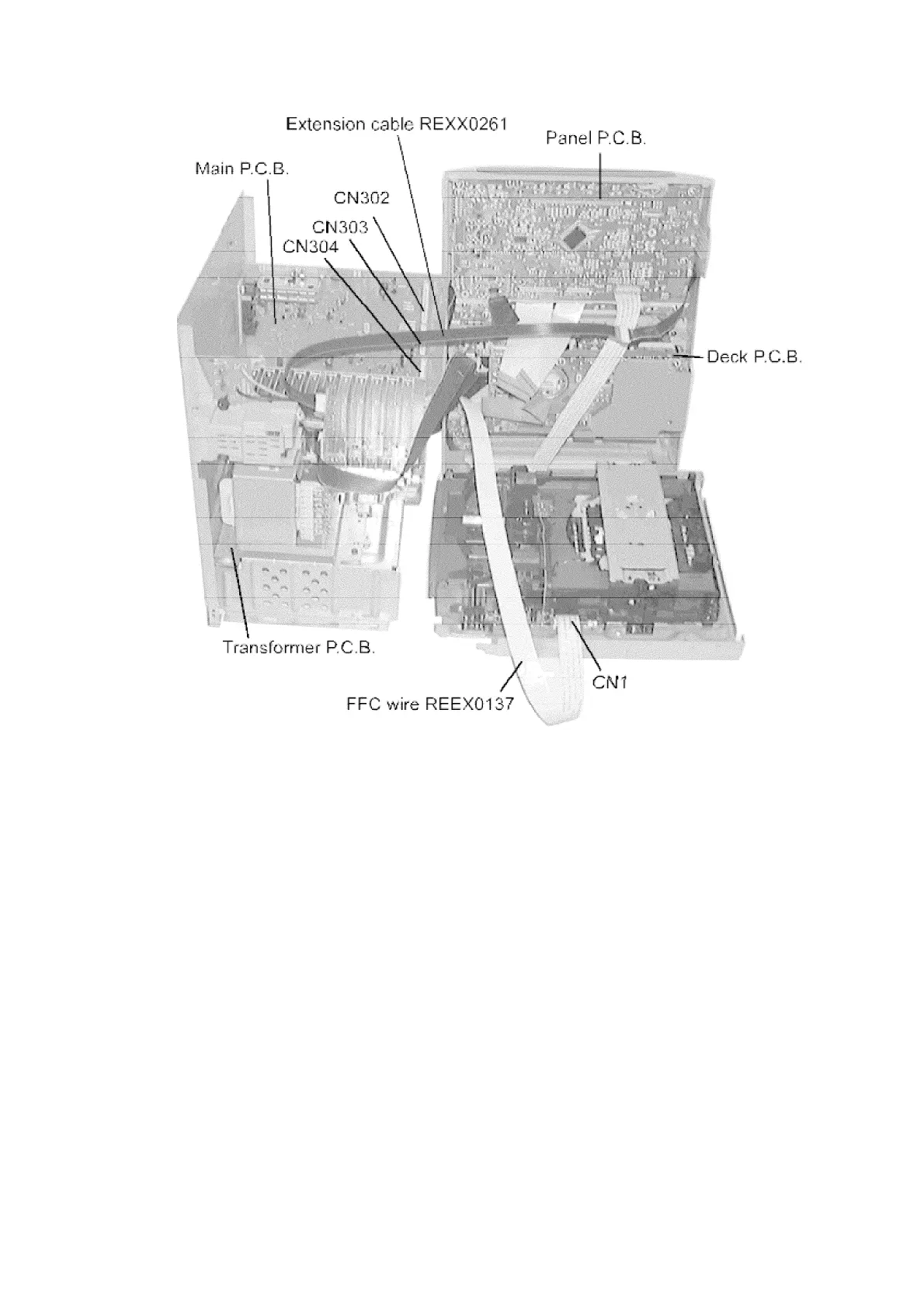

Step 12 Connect back the wire to CN302, CN303 and CN304. Use the extension wire (REXX0261) to
connect to CN502. Use a FFC wire (REEX0137) to connect CN1 to CN309.
8.1.2. Checking for Panel, Main and Deck P.C.B.
