Step 3 Desolder the 4 legs of the 2 motors and pull out the Servo P.C.B.

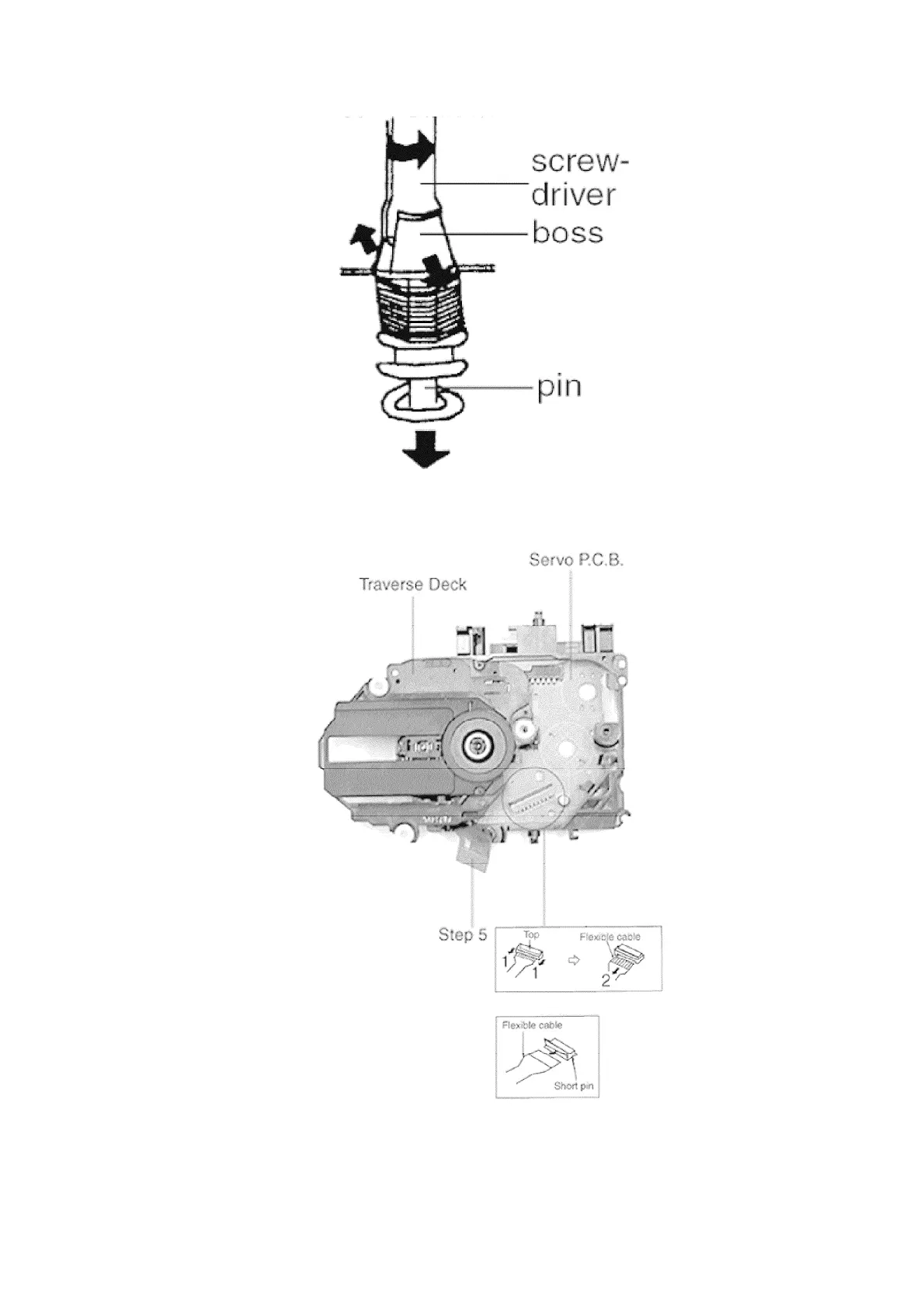

Step 4 Widen the 3 bosses with a flat screwdriver and pull out the 3 pins. Then remove the Traverse
Deck.
Step 5 Remove the flexible cable CN 701.
- Removal of the flexible cable. Push the top of the connector in the
direction of the arrow 1, and then pull out the flexible cable in the
20
