Panasonic SA-MAX7000E - Electrical Replacement Parts

37

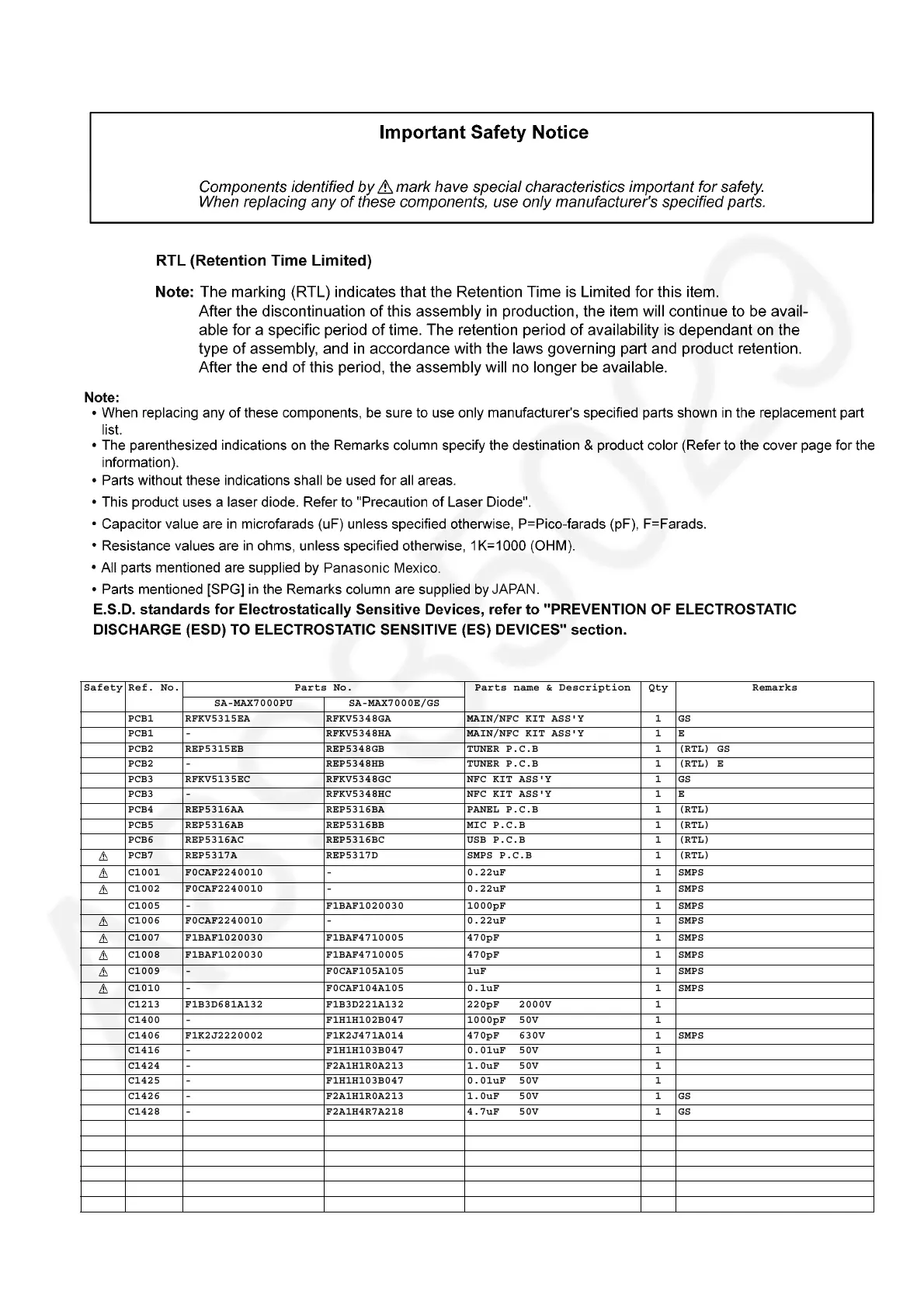

8.6. Electrical Replacement Part List
Safety Ref. No. Parts No. Parts name & Description Qty Remarks
SA-MAX7000PU SA-MAX7000E/GS
PCB1 RFKV5315EA RFKV5348GA MAIN/NFC KIT ASS'Y 1 GS
PCB1 - RFKV5348HA MAIN/NFC KIT ASS'Y 1 E
PCB2 REP5315EB REP5348GB TUNER P.C.B 1 (RTL) GS
PCB2 - REP5348HB TUNER P.C.B 1 (RTL) E
PCB3 RFKV5135EC RFKV5348GC NFC KIT ASS'Y 1 GS
PCB3 - RFKV5348HC NFC KIT ASS'Y 1 E
PCB4 REP5316AA REP5316BA PANEL P.C.B 1 (RTL)
PCB5 REP5316AB REP5316BB MIC P.C.B 1 (RTL)
PCB6 REP5316AC REP5316BC USB P.C.B 1 (RTL)
PCB7 REP5317A REP5317D SMPS P.C.B 1 (RTL)
C1001 F0CAF2240010 - 0.22uF 1 SMPS
C1002 F0CAF2240010 - 0.22uF 1 SMPS
C1005 - F1BAF1020030 1000pF 1 SMPS
C1006 F0CAF2240010 - 0.22uF 1 SMPS
C1007 F1BAF1020030 F1BAF4710005 470pF 1 SMPS
C1008 F1BAF1020030 F1BAF4710005 470pF 1 SMPS
C1009 - F0CAF105A105 1uF 1 SMPS
C1010 - F0CAF104A105 0.1uF 1 SMPS
C1213 F1B3D681A132 F1B3D221A132 220pF 2000V 1
C1400 - F1H1H102B047 1000pF 50V 1
C1406 F1K2J2220002 F1K2J471A014 470pF 630V 1 SMPS
C1416 - F1H1H103B047 0.01uF 50V 1
C1424 - F2A1H1R0A213 1.0uF 50V 1
C1425 - F1H1H103B047 0.01uF 50V 1
C1426 - F2A1H1R0A213 1.0uF 50V 1 GS
C1428 - F2A1H4R7A218 4.7uF 50V 1 GS
C1429 - F2A1HR10A015 0.10uF 50V 1 GS
C1430 - F1H1H470B052 47pF 50V 1 GS
C1431 - F1H1H472B047 4700pF 50V 1 GS
C1432 - F2A1H4R7A213 4.7uF 50V 1
C1434 - F2A1C100A207 10uF 16V 1
C1435 - F2A1C1000096 10uF 16V 1
