Panasonic SA-MAX7000E - Critical Safety Parts

6

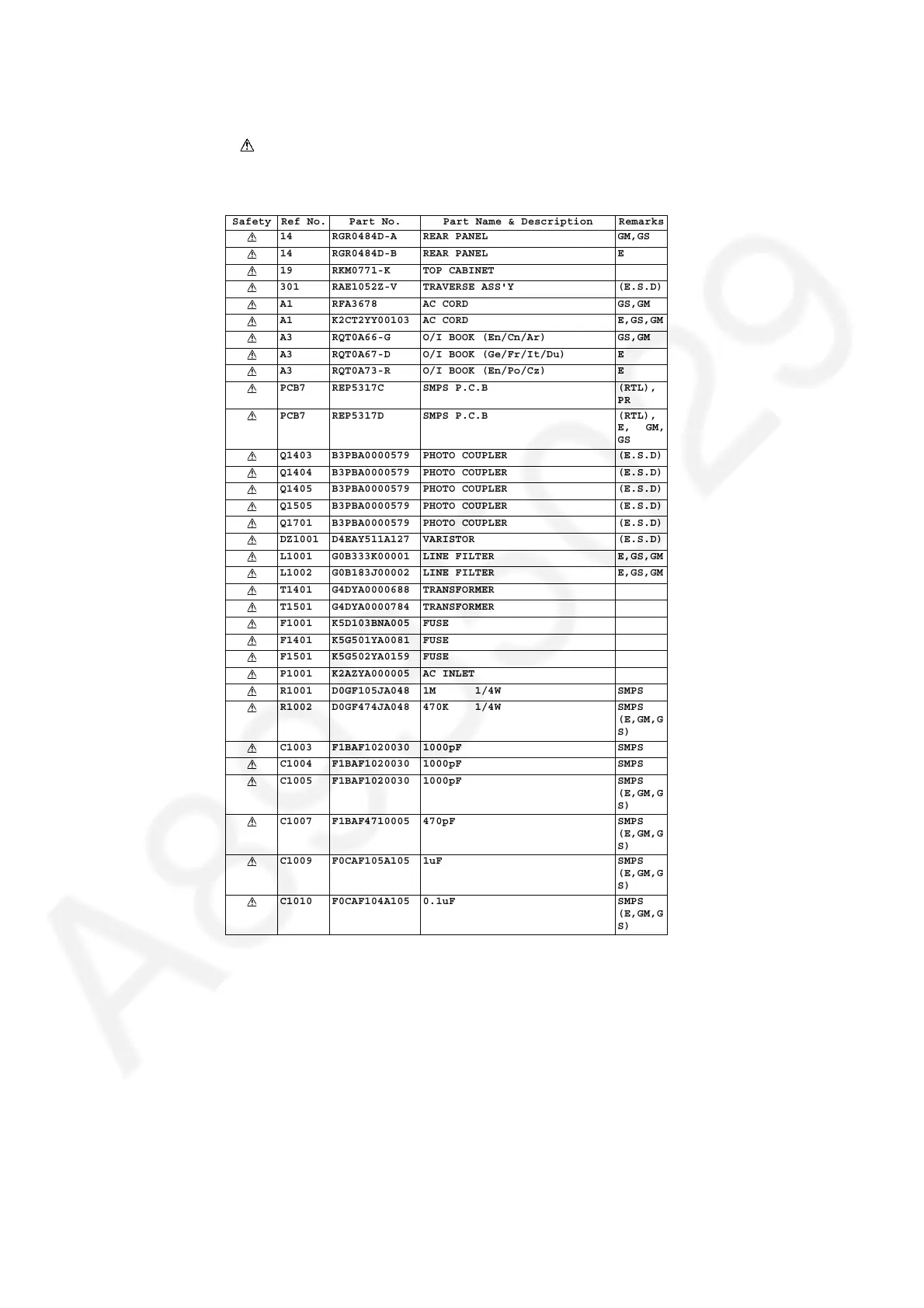

2.5. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
14 RGR0484D-A REAR PANEL GM,GS
14 RGR0484D-B REAR PANEL E
19 RKM0771-K TOP CABINET
301 RAE1052Z-V TRAVERSE ASS'Y (E.S.D)
A1 RFA3678 AC CORD GS,GM
A1 K2CT2YY00103 AC CORD E,GS,GM
A3 RQT0A66-G O/I BOOK (En/Cn/Ar) GS,GM
A3 RQT0A67-D O/I BOOK (Ge/Fr/It/Du) E
A3 RQT0A73-R O/I BOOK (En/Po/Cz) E
PCB7 REP5317C SMPS P.C.B (RTL),
PR
PCB7 REP5317D SMPS P.C.B (RTL),
E, GM,
GS
Q1403 B3PBA0000579 PHOTO COUPLER (E.S.D)
Q1404 B3PBA0000579 PHOTO COUPLER (E.S.D)
Q1405 B3PBA0000579 PHOTO COUPLER (E.S.D)
Q1505 B3PBA0000579 PHOTO COUPLER (E.S.D)
Q1701 B3PBA0000579 PHOTO COUPLER (E.S.D)
DZ1001 D4EAY511A127 VARISTOR (E.S.D)
L1001 G0B333K00001 LINE FILTER E,GS,GM
L1002 G0B183J00002 LINE FILTER E,GS,GM
T1401 G4DYA0000688 TRANSFORMER
T1501 G4DYA0000784 TRANSFORMER
F1001 K5D103BNA005 FUSE
F1401 K5G501YA0081 FUSE
F1501 K5G502YA0159 FUSE
P1001 K2AZYA000005 AC INLET
R1001 D0GF105JA048 1M 1/4W SMPS
R1002 D0GF474JA048 470K 1/4W SMPS
(E,GM,G
S)
C1003 F1BAF1020030 1000pF SMPS
C1004 F1BAF1020030 1000pF SMPS
C1005 F1BAF1020030 1000pF SMPS
(E,GM,G
S)
C1007 F1BAF4710005 470pF SMPS
(E,GM,G
S)
C1009 F0CAF105A105 1uF SMPS
(E,GM,G
S)
C1010 F0CAF104A105 0.1uF SMPS
(E,GM,G
S)
