Panasonic SA-PM21PC - Headphone PCB Disassembly; Front Panel Assembly Disassembly

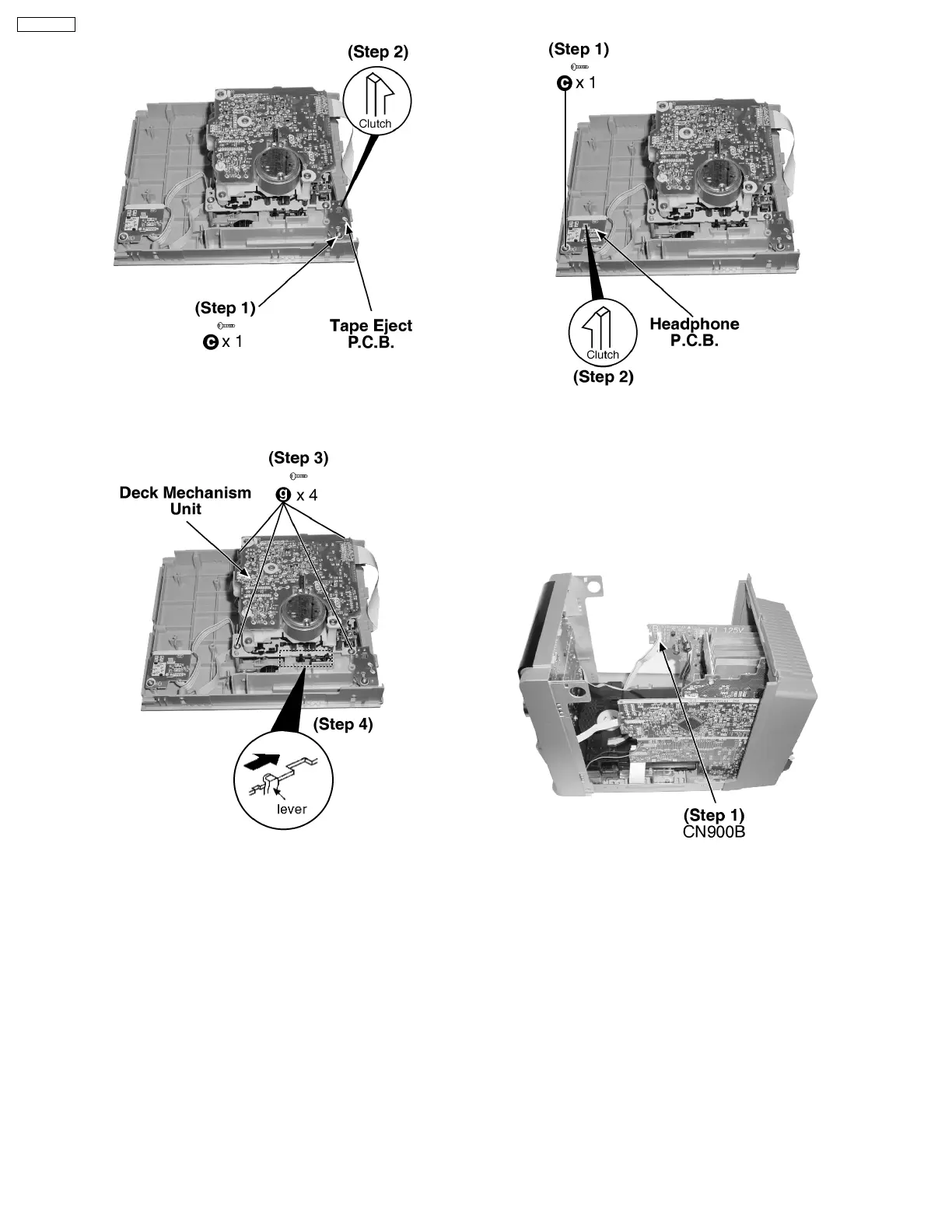

Step 1 : Remove 1 screw.
Step 2 : Release the clutch.
Step 3 : Remove 4 screws.
Step 4 : Push the lever as arrow shown to open the cassette lid
and remove the deck mechanism unit.
10.5. Disassembly of Headphone
P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
Step 1 : Remove 1 screw.
Step 2 : Release the clutch.
10.6. Disassembly of Front Panel
Assembly
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
Step 1 : Detach the connector CN900B .
