Panasonic SA-PM21PC - Speaker Terminal PCB Disassembly; Transformer PCB Disassembly

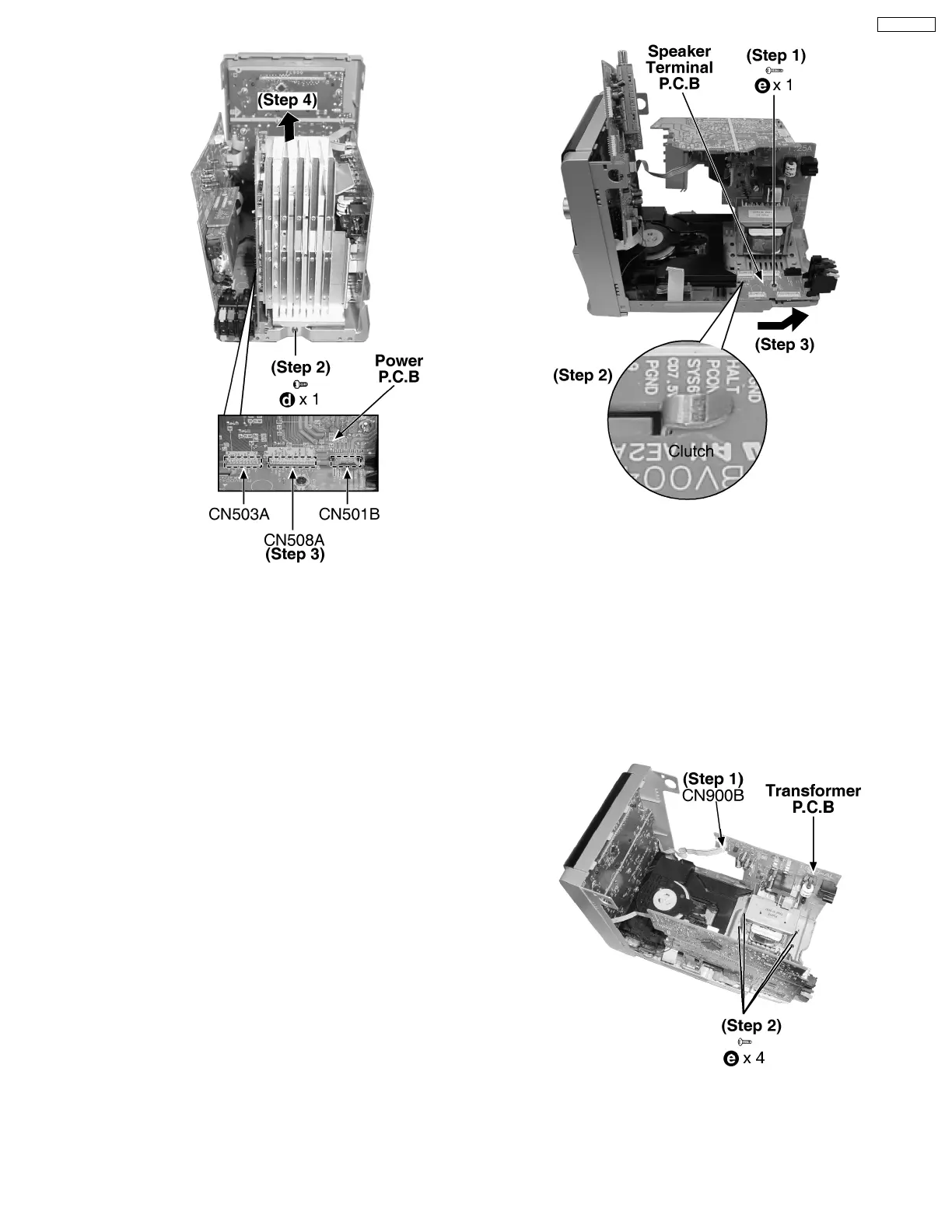

Step 2 : Remove 1 screw.
Step 3 : Detach the connector CN503A, CN508A, CN501B.
Step 4 : Remove the Power P.C.B as arrow shown.
10.12. Disassembly of Speaker
Terminal P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 2) of Item 10.8.
· Follow the (Step 1) - (Step 2) of Item 10.10.
· Follow the (Step 2) - (Step 4) of Item 10.11.
Step 1 : Remove 1 screw.
Step 2 : Release the clutch.
Step 3 : Remove the Speaker Terminal P.C.B as arrow shown.
10.13. Disassembly of Transformer
P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 2) of Item 10.8.
· Follow the (Step 1) - (Step 4) of Item 10.11.
Step 1 : Detach the connector CN900B.
Step 2 : Remove 4 screws.
17
SA-PM21PC
