Panasonic SA-PM21PC - Panel PCB Disassembly; Rear Cabinet Disassembly; Tuner Pack Disassembly

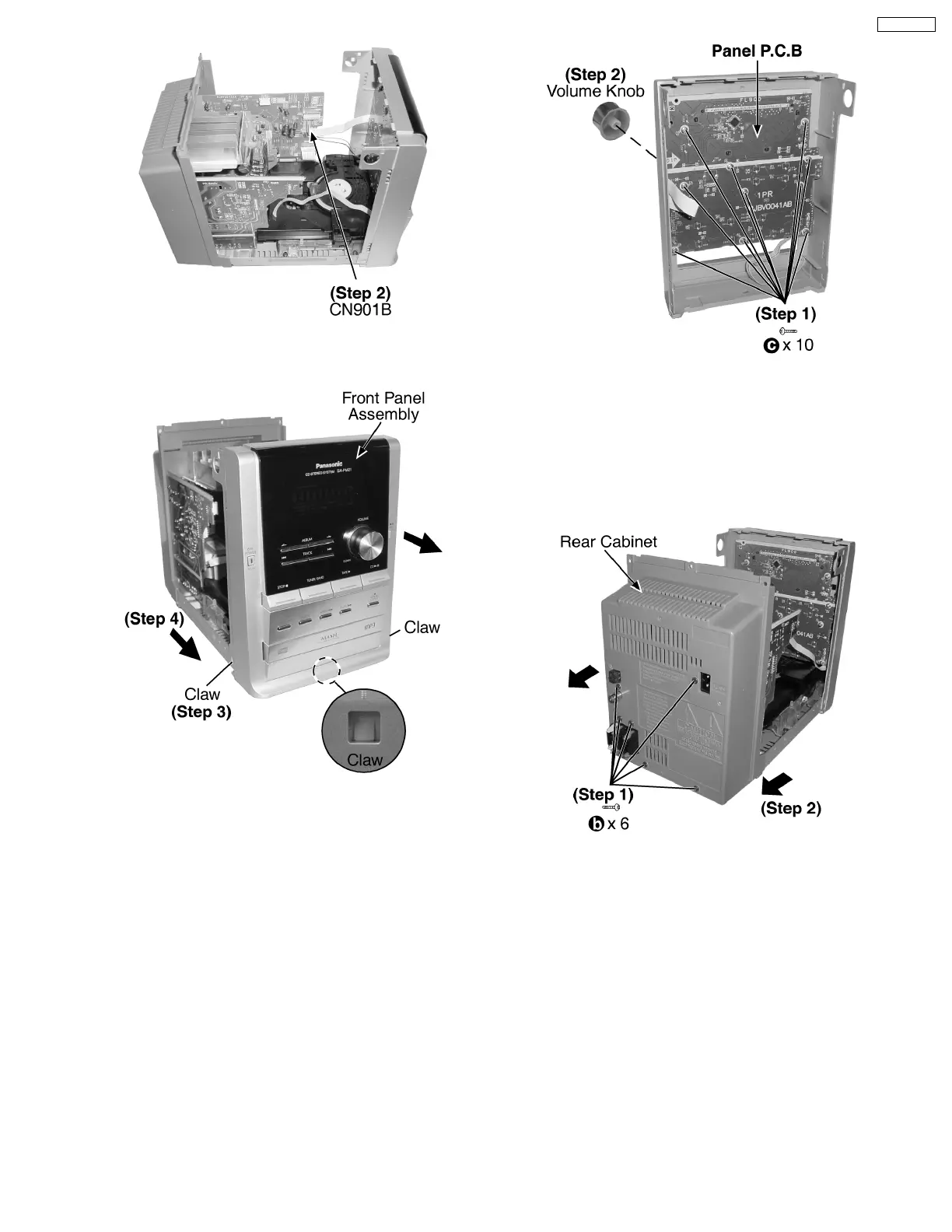

Step 2 : Detach the FFC CN901B.
Step 3 : Release 3 Claws.
Step 4 : Remove the front panel assembly as arrow shown.
10.7. Disassembly of Panel P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 4) of Item 10.6.
Step 1 : Remove 10 screws.
Step 2 : Remove the Volume Knob.
10.8. Disassembly of Rear Cabinet
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
Step 1 : Remove 6 screws.
Step 2 : Remove the rear cabinet as arrow shown.
10.9. Disassembly of Tuner Pack
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 2) of Item 10.8.
15
SA-PM21PC
