Panasonic SA-PM21PC - Main PCB Disassembly; Power PCB Disassembly

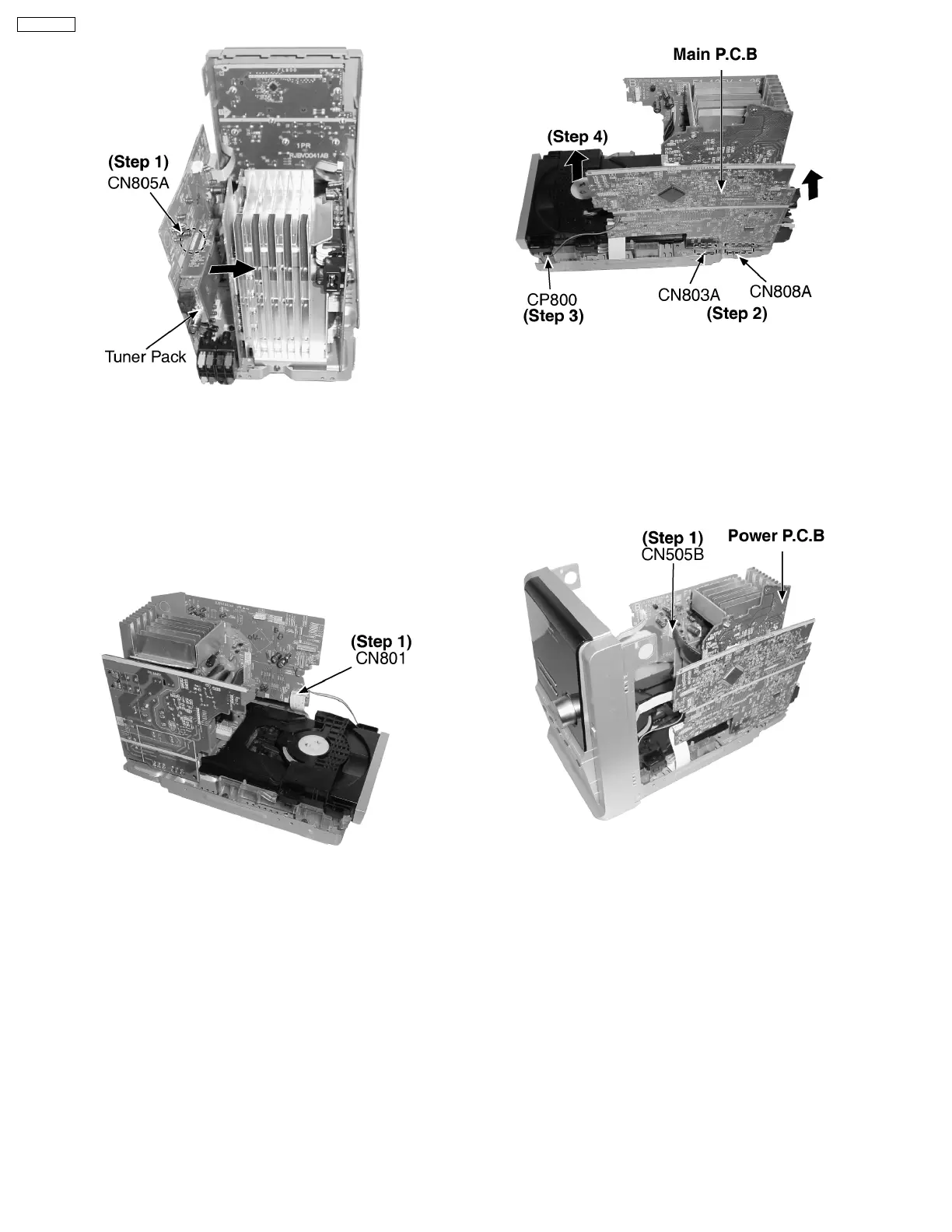

Step 1 : Detach the connector CN805A and remove the tuner
pack as arrow shown.
10.10. Disassembly of Main P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 4) of Item 10.6.
· Follow the (Step 1) - (Step 2) of Item 10.8.
Step 1 : Detach the FFC CN801.
Step 2 : Detach the connector CN803A, CN808A.
Step 3 : Detach the connector CP800.
Step 4 : Remove the Main P.C.B as arrow shown.
10.11. Disassembly of Power P.C.B
· Follow the (Step 1) - (Step 6) of Item 10.2.
· Follow the (Step 1) - (Step 4) of Item 10.3.
· Follow the (Step 1) - (Step 2) of Item 10.8.
Step 1 : Detach the connector CN505B.
16
SA-PM21PC
