11 Assembling and Disassembling
11.1 Disassembly flow chart

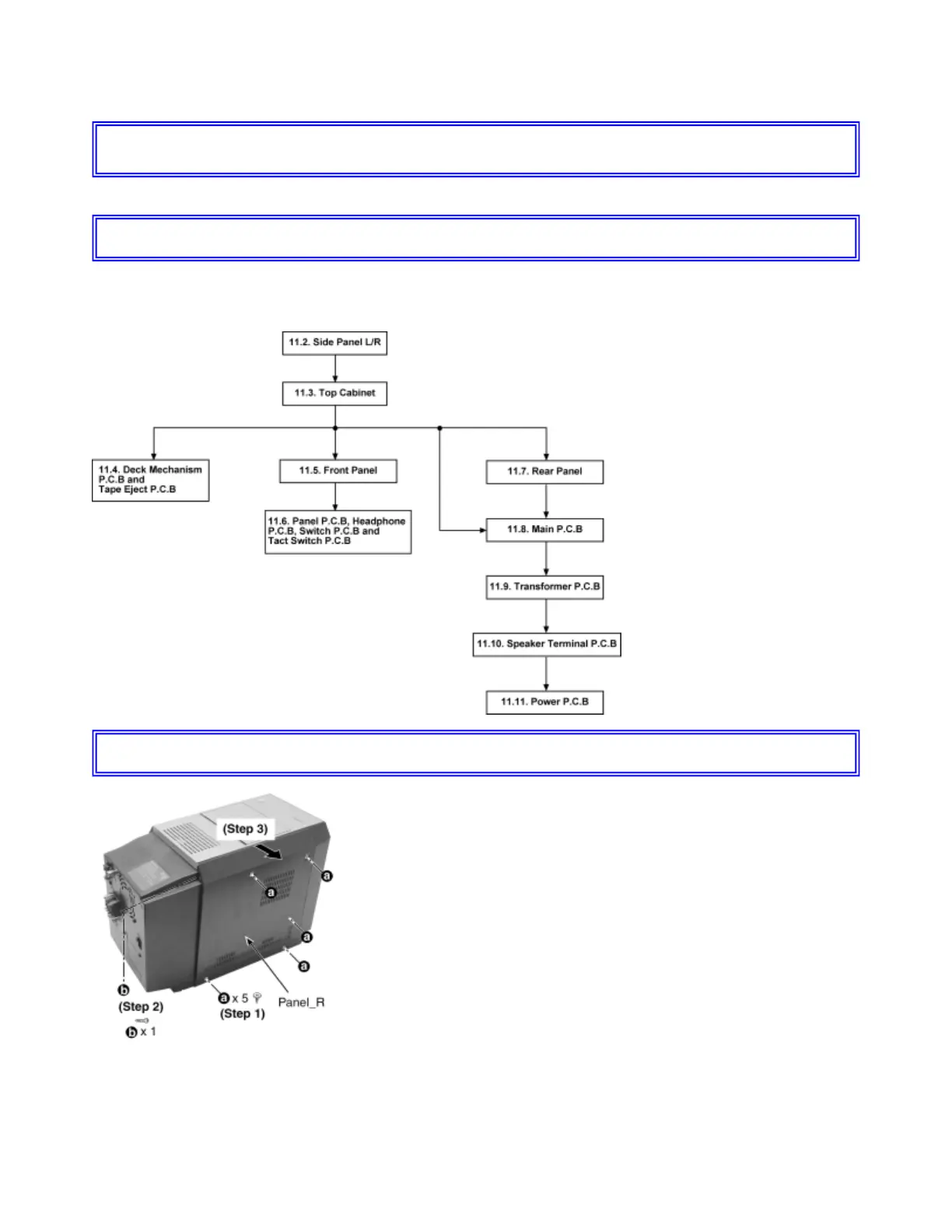

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out
the servicing.
To assemble the unit, reverse the steps shown in the chart below.
11.2 Disassembly of Side Panel L & R
Step 1 : Remove all the screws.
Step 2 : Remove the screw.
Step 3 : Remove the Panel_R as arrow shown.
To Next Page
