11.20 Procedure for removing CD loading
mechanism
1. Turn off by pressing power SW in the body.
2. Unplug AC power cord after the indication of [GOOD-BYE], then disassemble the body.
3. Disassemble the body, and take out CD loading mechanism.
4. Perform disassembly according to the following procedure for disassembly.
11.21 CR16 mechanism disassembly procedure
11.21.1 Gear for servicing information
z This unit has a gear which used for checking items (open/close of disc tray, up/down operation of traverse unit by
manually) when servicing. (For gear information, that is described on the items for disassembly procedures.)
z For preparation of gear (for servicing), perform the procedures as follows.
z In case of re-servicing the same set, the “ gear for servicing” may be took off because it had been used. So, the “gear
for servicing” must be stored.

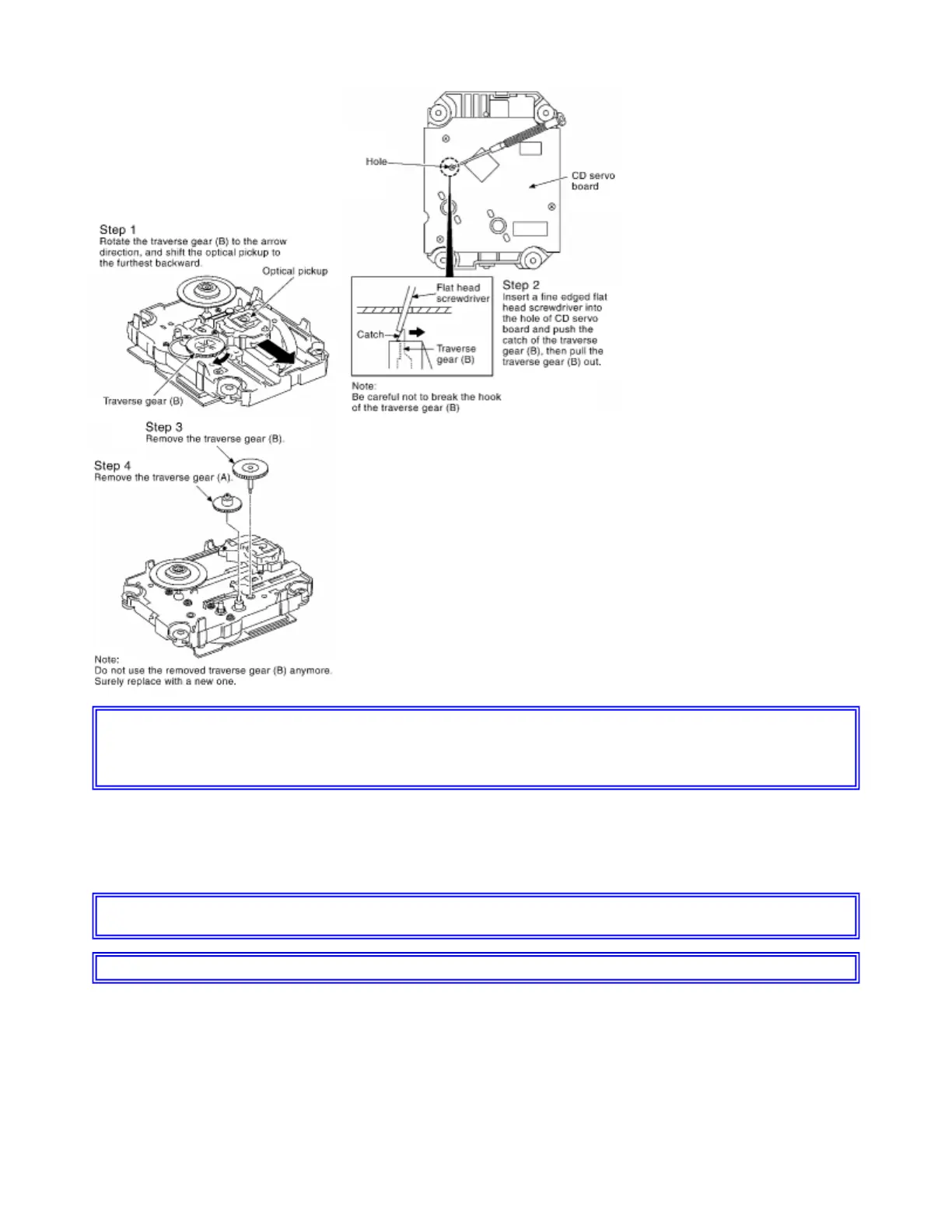

1. Remove the gear attached to top cover of CD loading mechanism.
