Panasonic SA-PM29P - Page 87

M
M

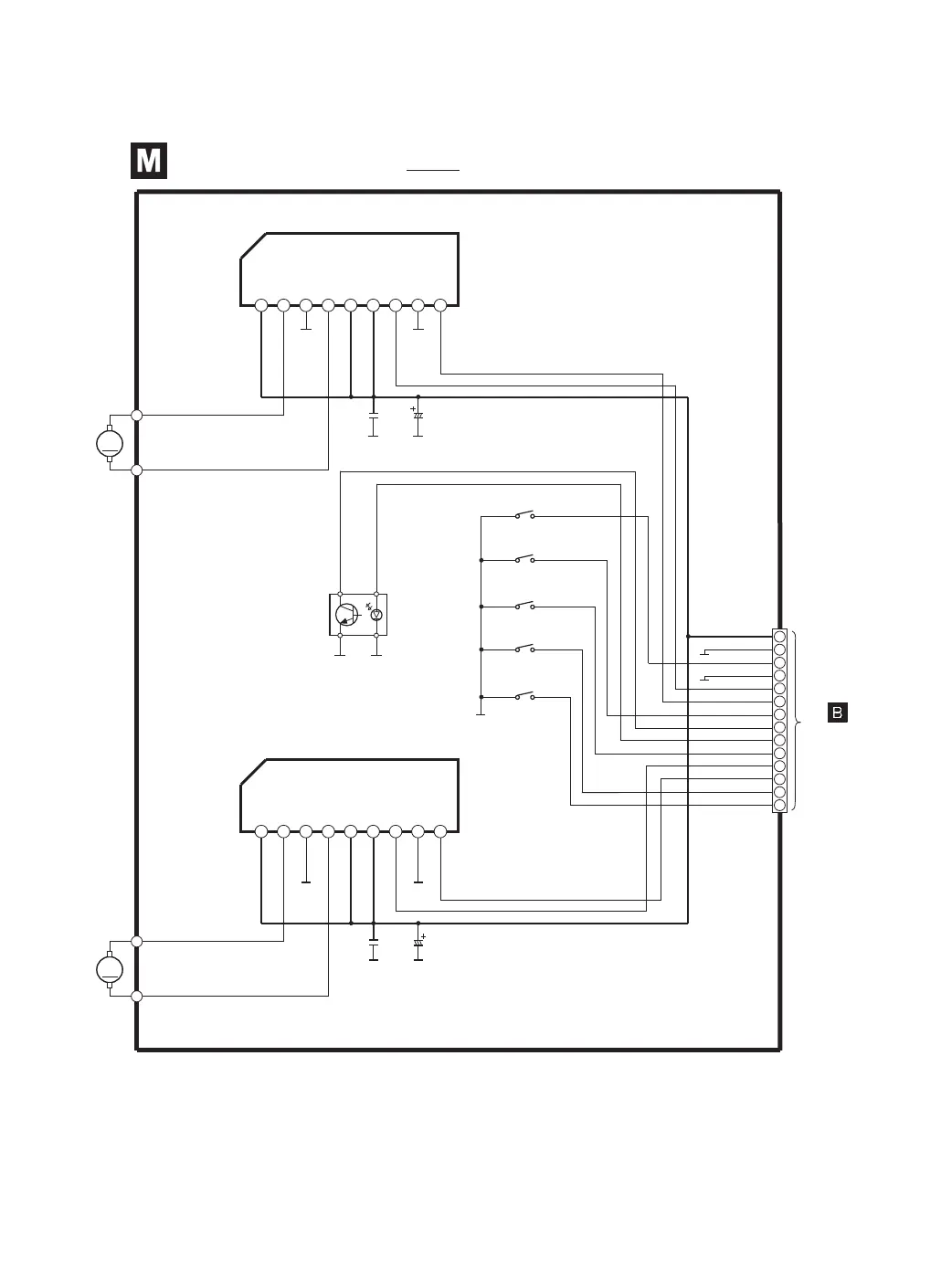

CD LOADING CIRCUIT
SCHEMATIC DIAGRAM-16
RM11
UP/DOWN
MOTOR
RM21
LOADING
MOTOR
C11
0.01
C12
16V100
C21
0.01
C22
16V100
Q1
B3NAA0000068
SENSOR
VREF OUT2 RNF OUT1 VM VCC F_IN GND R_IN
VREF OUT2 RNF OUT1 VM VCC F_IN GND R_IN
IC11
C0GAG0000007
UP/DOWN MOTOR DRIVE
IC21
C0GAG0000007
LOADING MOTOR DRIVE
S3
BOTTOM
S4
OPEN
S1
STOCK
S2
PLAY
: +B SIGNAL LINE
TO
MAIN CIRCUIT
(CN305) ON
SCHEMATIC
DIAGRAM-6
CN1
S5
CHANGE
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
+7.5V
PGND
CR16 SWITCH
DNGD
UP/DOWN F
UP/DOWN R
BOTTOM SW
POSTION SENS
LED
OPEN SW
LOAD F
LOAD R
STOCK SW
PLAY SW
14
13
12
11
10
2
4
6
8
9
7
5
3
1
