8.3. Main Component Replacement
Procedure

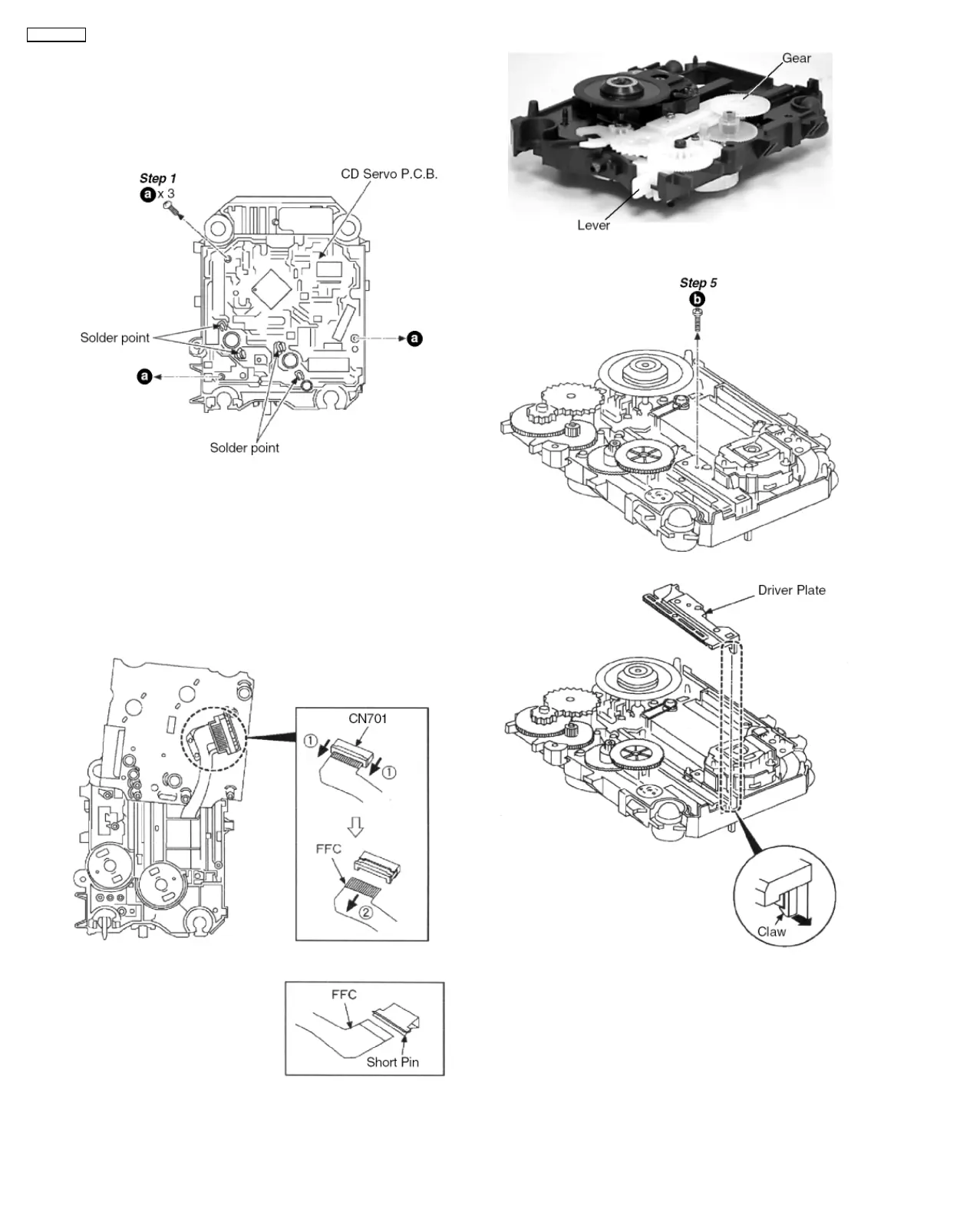

8.3.1. Replacement of the CD Servo
P.C.B. and Optical Pick-up Unit.
Step 2
Desolder the 4 legs of 2 motors and flip over the CD
Servo P.C.B.
Step 3
Remove the flexible cable at CN701.
• Removal of the flexible cable
Push the top of the connector in the direction of the arrow
1 and then pull out the flexible cable in the direction of the
arrow 2.
NOTE :
Insert a short pin into the flexible cable.
Step 4
Push the lever in and turn the gear clock wise fully.
Step 6
Release the claw and remove the Driver Plate.
