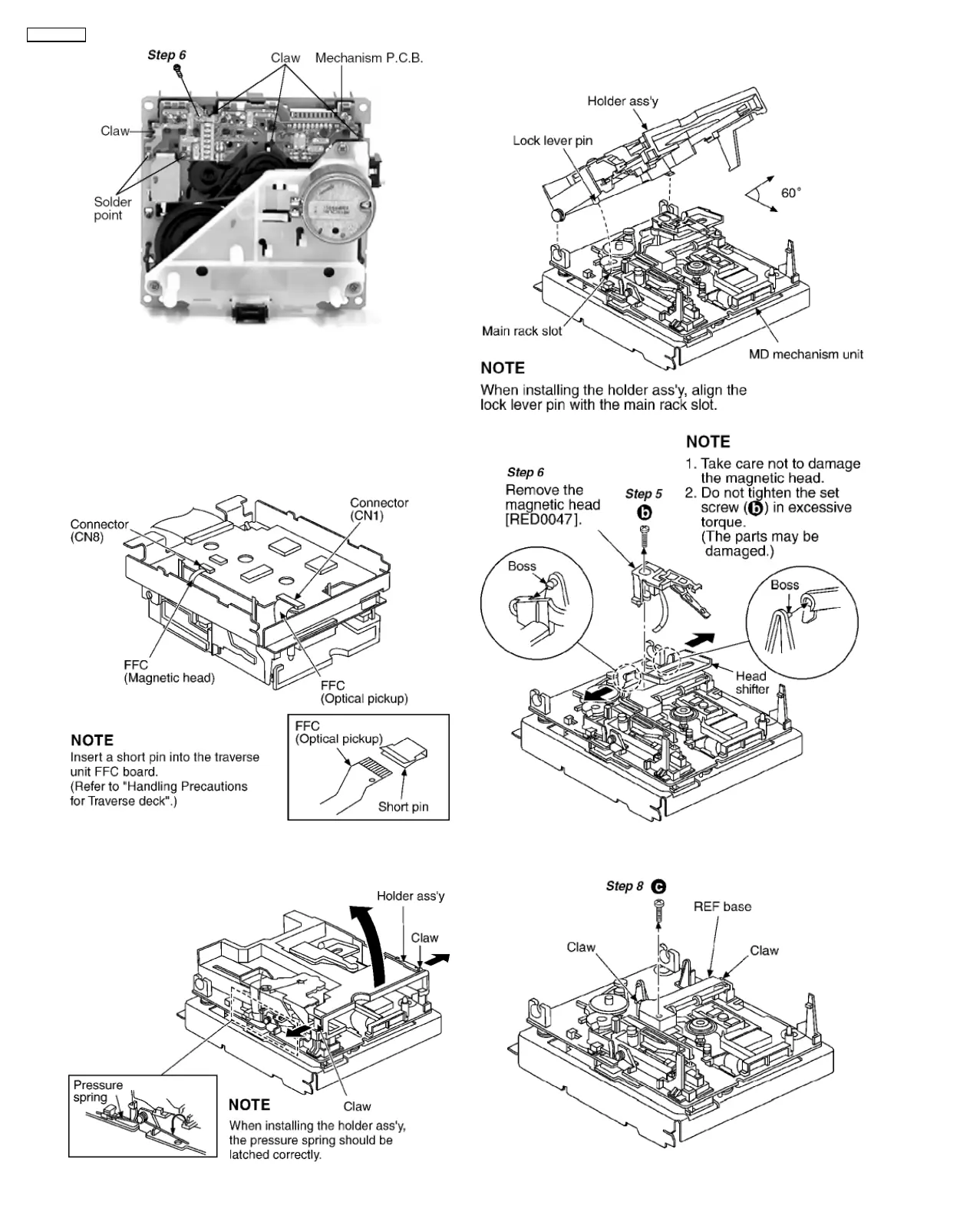

Step 7 Desolder the plunger terminals.
Step 8 Release the 4 claws and remove the Mechanism P.C.B.
8.3.3. Replacement for the Magnetic
Head and Optical Pick-up.
Step 1 Remove the 2 FFCs from the connector.
Step 2 Remove the pressure spring from latch.
Step 3 Release the 2 claws and then lift up the holder ass’y.
Step 4 Set the holder ass’y and MD mechanism unit at a 60
degree angle and then pull out the holder ass’y.
Step 7 Spread the lugs of head shifter and then release the
lugs from boss.
Step 9 Release the 2 claws and then remove the REF base.
16
SA-PM30MD
