Panasonic SA-PM30MD - Page 17

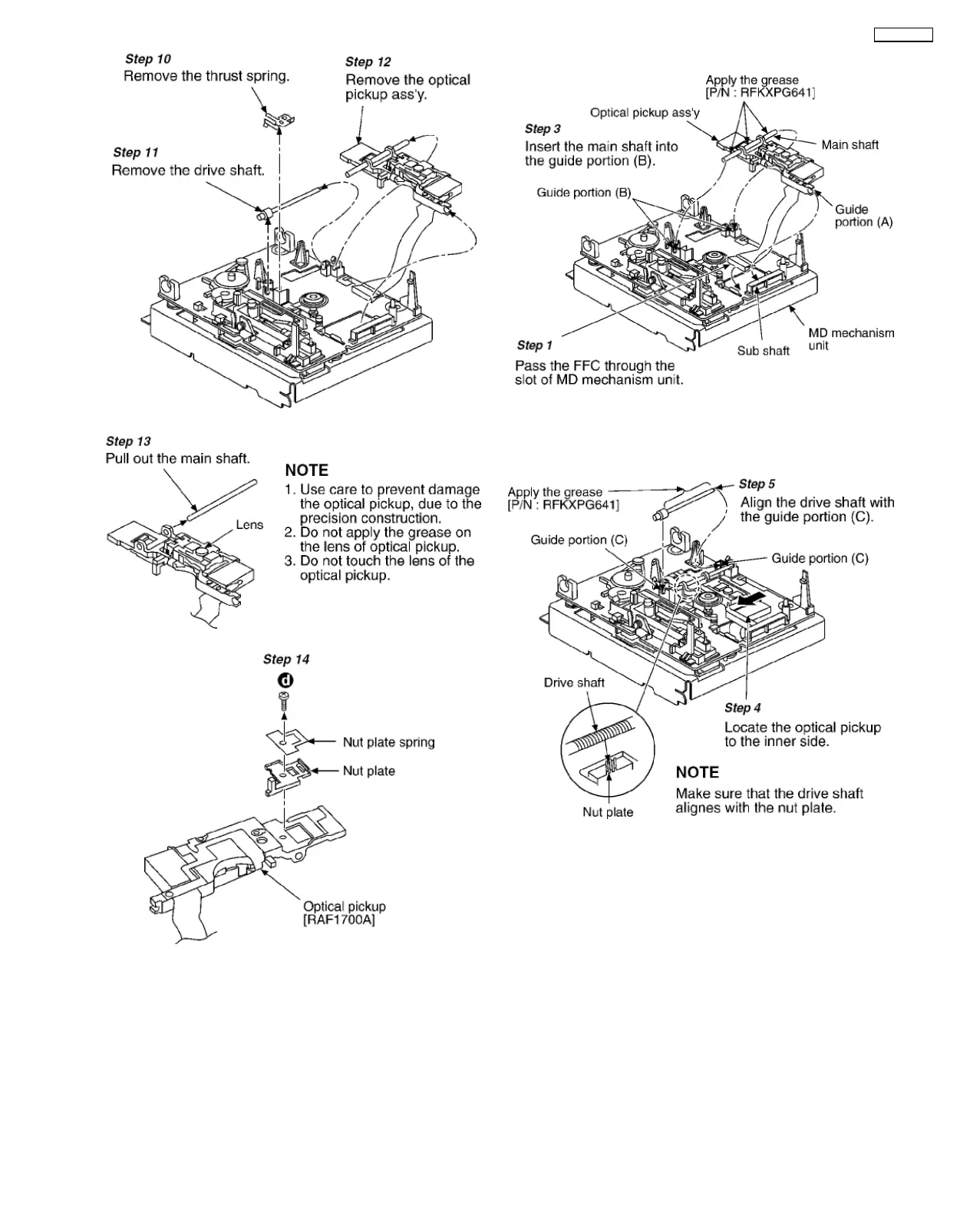

Step 15 Remove the nut plate spring and nut plate.
Notice for installing the optical pickup
Step 2 Align the guide portion (A) of optical pickup with the sub
shaft.
Note : Take care not to bend the FFC.
17
SA-PM30MD
