Panasonic SA-PMX150 - Service and Doctor Mode Operations

13
6 Service Mode
This unit is equipped with features of self diagnostic & doctor mode setting for checking the functions & reliability.

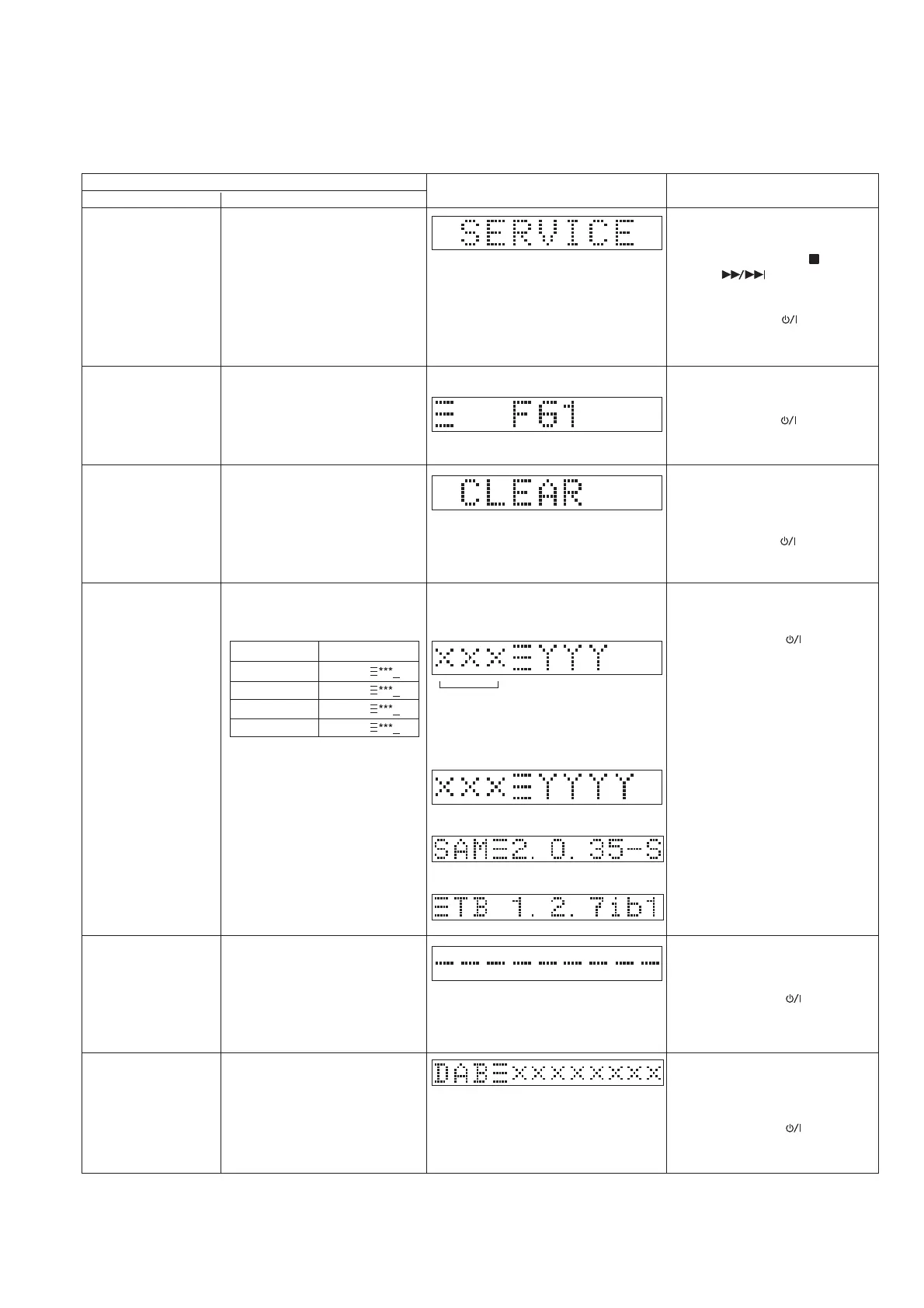

6.1. Service Mode Table
Service Mode To enter into Service Mode
checking
Item
FL display Key operation
Mode name Description
Error code information
Delete Error code
Example:
System will perform a check on
any unusual/error code from the
memory
To clear the stored in memory
(EEPROM IC)
i) Opecon version
Software Version
iii) AllPlay version
Cold Start
a) To display model name &
Opecon version
c) To display AllPlay version
ii) SDK version b) To display SDK version
Step 1 : Select CD mode
(Ensure no disc is inserted).
Step 2 : Press and hold [ ] follow by
[ ] on main unit for 2
second .
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
Step 1 : Press [STOP] on main unit.
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
Step 1 : Press and hold [OK] on
remote control for more than
5 second.
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
Version display
(Display 1)
Press [DISPLAY] button on the
remote control.
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
Press [SETUP] button on the remote
control.
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
To activate cold start upon next
power up.
(Backup data are initialized)
(Display 2)
(DAB-SCB-F54444 -0001- 0034-V6.0.23.Ex61368-7)
(Example Display scrolling )
Tuner DAB
module version
(For PMX152)
1) Change to DAB selector.
2) Press [SOUND] button on the
remote control.
• To exit, press the [TA] on the main
unit or using the remote control.
• Unplug the AC cord.
To display Tuner DAB module
version.
(Display 3)
iv) DTB version c) To display DTB version
(Display 4)
Model Name
PMX80
PMX82/84/82M
PMX150
PMX152
Version display
7IA
7IB
7IC
7ID
