Panasonic SA-PMX150 - Disassembly of Front Panel Unit

30

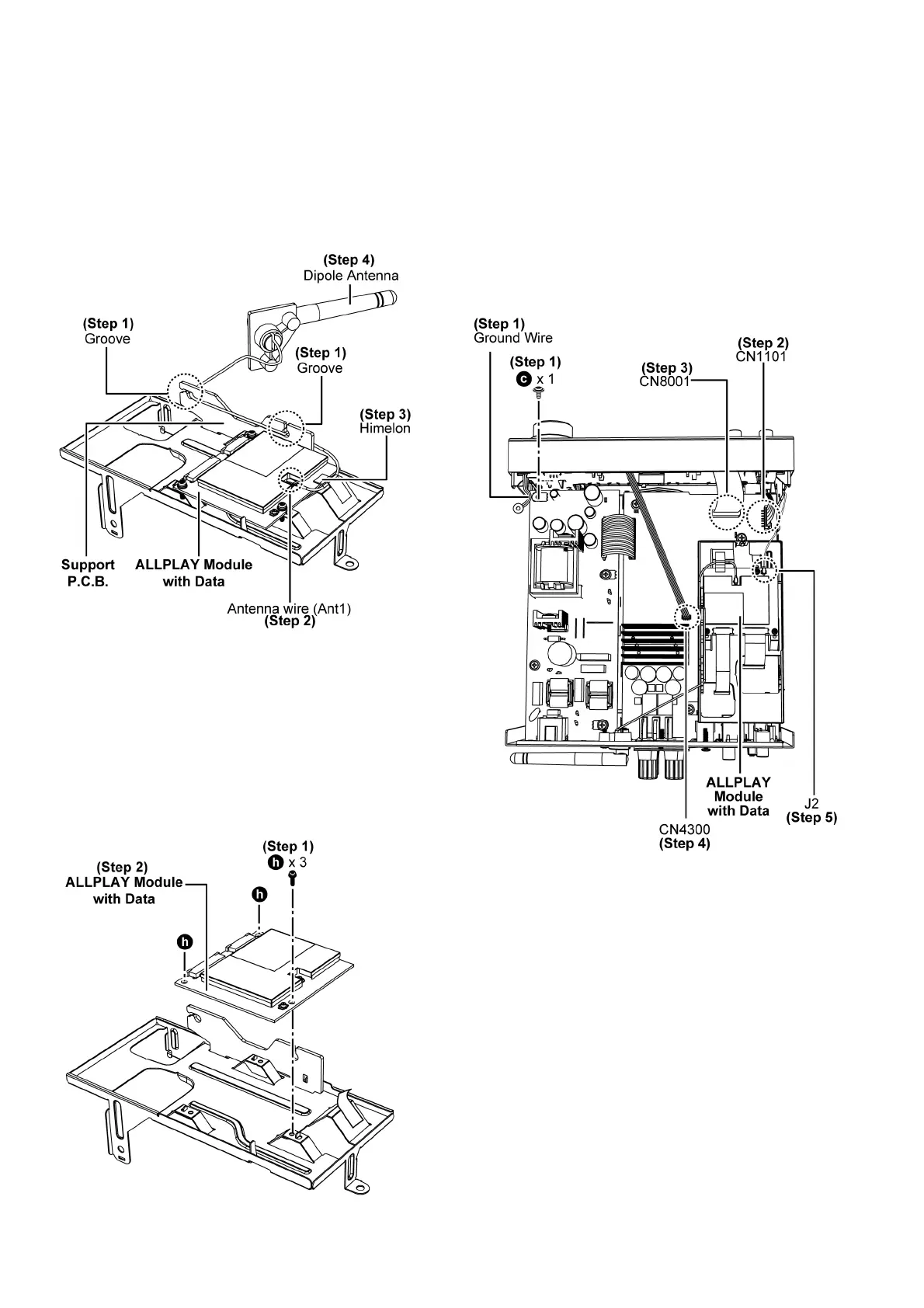

8.5.1. Disassembly of Dipole Antenna
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
Step 1 : Release antenna wire from the grooves.
Step 2 : Detach antenna wire at connector (Ant1) on ALLPLAY
Module with Data.
Step 3 : Lift up himelon.
Step 4 : Remove Dipole Antenna.
8.5.2. Disassembly of ALLPLAY Module
with Data
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
• Refer to “Disassembly of Dipole Antenna”
Step 1 : Remove 3 screws.
Step 2 : Remove ALLPLAY Module with Data.
8.6. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”
Step 1 : Remove screw and detach ground wire.
Step 2 : Detach 7P wire at connector (CN1101) on Main P.C.B..
Step 3 : Detach 19P FFC at connector (CN8001) on Main
P. C . B . .
Step 4 : Detach 5P wire at connector (CN4300) on Main P.C.B..
Step 5 : Detach antenna wire at connector (J2) on ALLPLAY
Module with Data.
