Panasonic SA-PMX150 - Disassembly of Panel Block

31

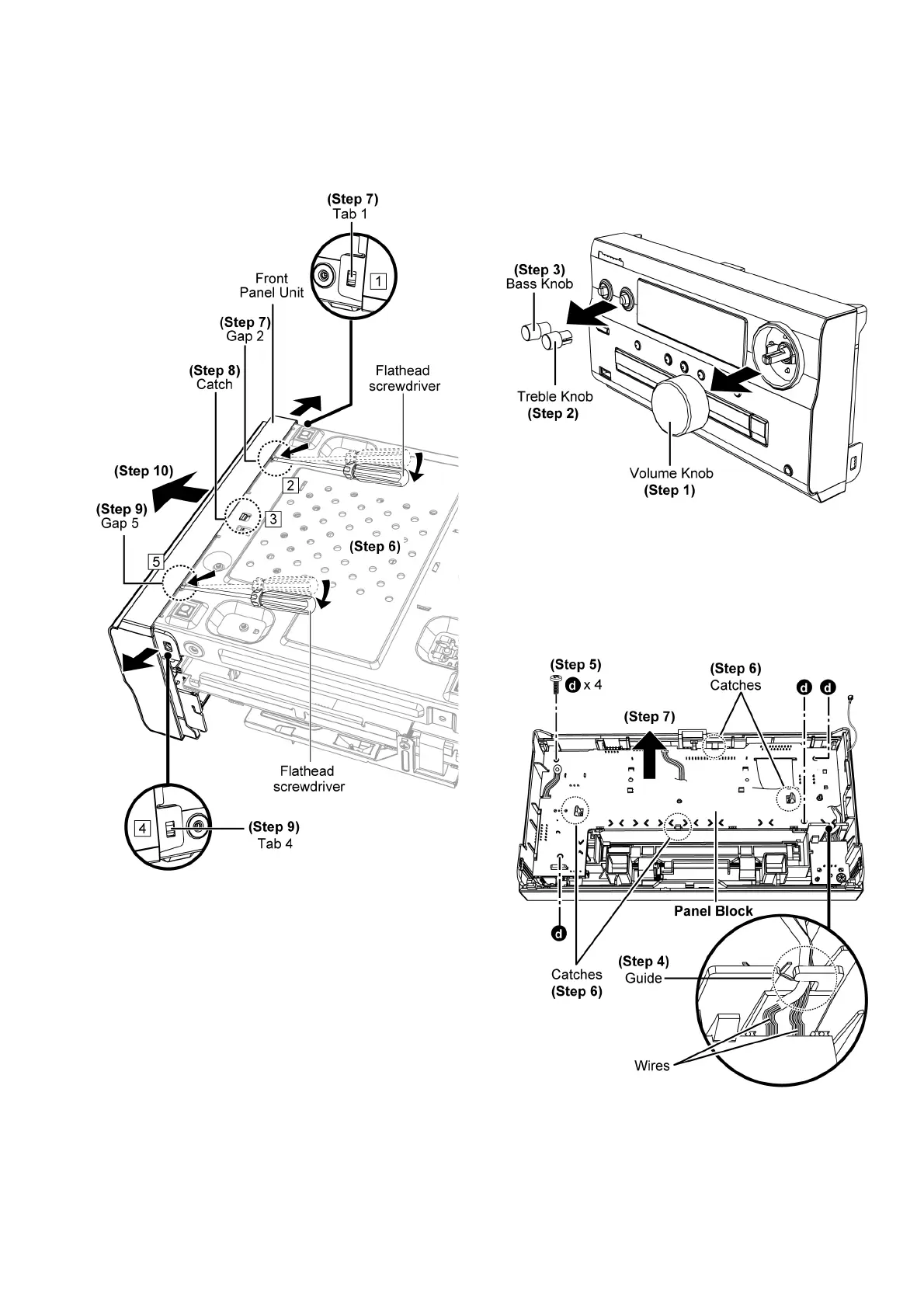

Step 6 : Upset the set.
Step 7 : Release tab 1 and gap 2.
Step 8 : Press to release catch.
Step 9 : Release tab 4 and gap 5.
Step 10 : Slightly lift forward and remove Front Panel Unit.
8.7. Disassembly of Panel Block
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove Volume Knob.
Step 2 : Remove Treble Knob.
Step 3 : Remove Bass Knob.
Step 4 : Release wires from the guide.
Step 5 : Remove 4 screws.
Step 6 : Release catches.
Step 7 : Remove Panel Block.
