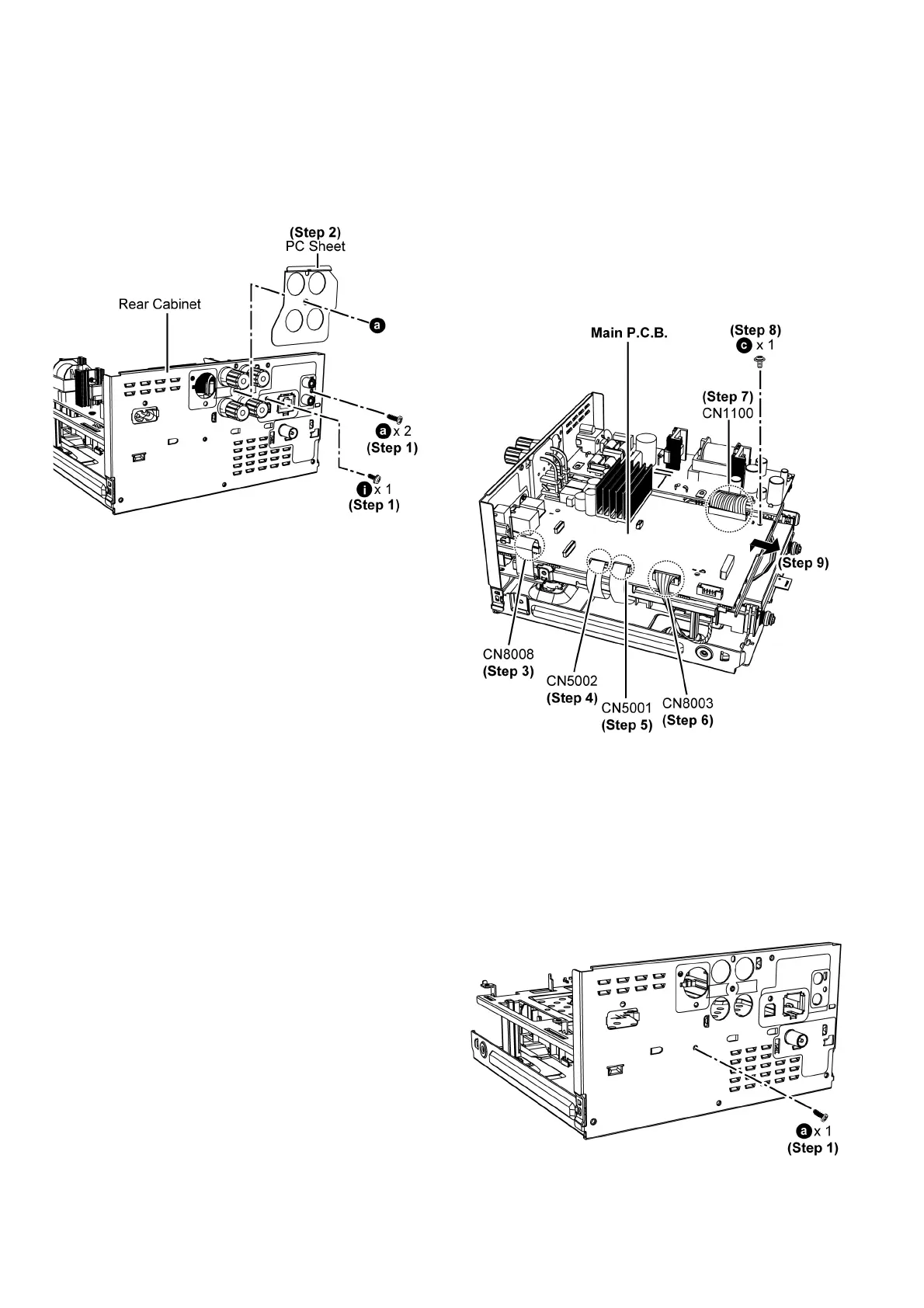

8.11. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove 3 screws.
Step 2 : Remove PC Sheet.
Step 3 : Detach 13P FFC at connector (CN8008) on Main
P.C.B.. (For Tuner)
Step 3 : Detach 10P FFC at connector (CN8008) on Main
P.C.B.. (For DAB)
Step 4 : Detach 24P FFC at connector (CN5002) on Main
P. C . B . .
Step 5 : Detach 10P FFC at connector (CN5001) on Main
P. C . B . .
Step 6 : Detach 9P wire at connector (CN8003) on Main P.C.B..
Step 7 : Detach 15P wire at connector (CN1100) on Main
P. C . B . .
Step 8 : Remove screw.
Step 9 : Lift up to remove Main P.C.B..
8.12. Disassembly of Inner Chassis
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
Step 1 : Remove screw.
