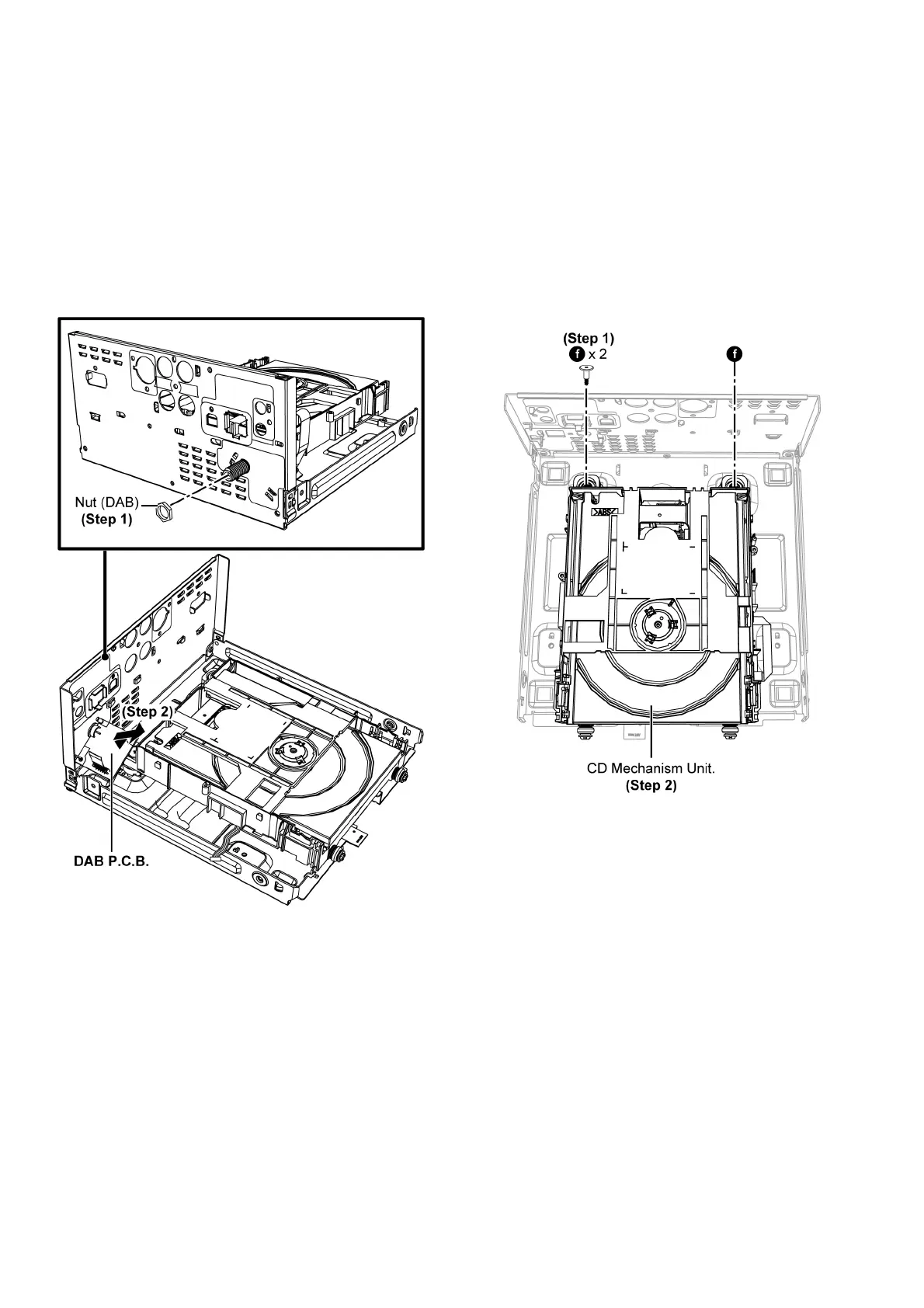

8.14. Disassembly of DAB P.C.B.
(For PMX152 only)
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”
Step 1 : Remove Nut (DAB)..
Step 2 : Lift up to remove DAB P.C.B..
8.15. Disassembly of CD
Mechanism Unit
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of ALLPLAY Module Block”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of SMPS P.C.B.”
• Refer to “Disassembly of Main P.C.B.”
• Refer to “Disassembly of Inner Chassis”
• Refer to “Disassembly of Tuner P.C.B. or DAB P.C.B.”
Step 1 : Remove 2 screws.
Step 2 : Remove CD Mechanism Unit.
