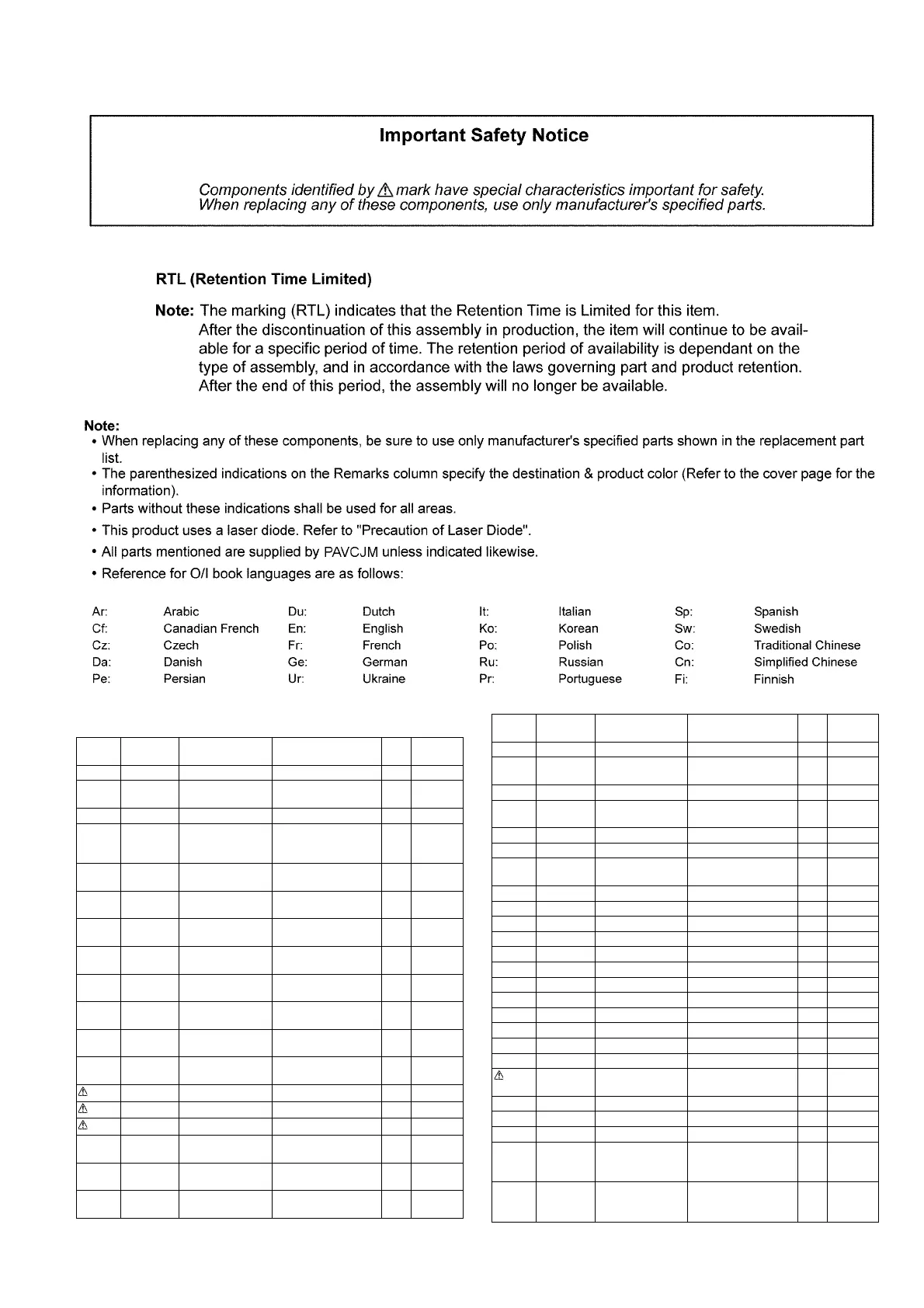

15.3. Mechanical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 TZH3QEZ003 10P FFC WIRE
(MECHA TO MAIN
PCB)
1
2 TZH3QEZ008 13P FFC (TUNER-
MAIN)
1 150EGS,
150PCS
3 TZH3QKZ012 19P FFC (PANEL-
MAIN)
1
4 REX1823 7P WIRE (USB-
MAIN)
1
6 TNMX030 5P WIRE (PANEL-
MAIN)
1
7 REX1827-1 9P WIRE (BLUE-
TOOTH-MAIN)
1
8 REX1526 15P WIRE (SMPS-
MAIN)
1
9 REX1541 2P WIRE (SMPS-
MAIN)
1
10 TZH3QEZ011 10P FFC (DAB-
MAIN)
1 152EGS
12 RGR0474M-A REAR CABINET 1 150PCS
12 RGR0474M-B REAR CABINET 1 150EGS
12 RGR0474N-A REAR CABINET 1 152EGS
17 RYP2063N-S FRONT PANEL
ASS’Y
1 150EGS,
150PCS
17 RYP2063P-S FRONT PANEL
ASS’Y
1 152EGS
17-1 RGK2605-S VOL RING ORNA-
MENT
1
17-2 RGW0458-S TUNE KNOB 2
17-3 RGW0431-S VOLUME KNOB
ASS’Y
1
22 TEKX073 PC SHEET 1
26 RSC1097 D-AMP HEAT
ABSORBER
1
27 RSC1305 THERMAL PAD 1
28 RMN1059 FL HOLDER 1
29 XTB3+8JFJ SCREW 12 150EGS,
150PCS
29 XTB3+8JFJ SCREW 11 152EGS
30 RHD26046-L SCREW 5
31 RHD30007-1SJ SCREW 2
33 RHD30111-31 SCREW 3
34 RHDX031008 SCREW 2
35 RHDX30005-J SCREW 7
36 XTB3+8JFJ-J SCREW 2
38 RMN1115 GROUND SPRING 1
40 RHD26043-1 SCREW 2
41 XYN3+C8FJK SCREW 1
42 RHN95002 DAB NUT 1 152EGS
46 TXJ0190150 1P ANTENNA WIRE 1
48 RFKKMX100EGS TOP AL ORNAMENT
ASS'Y
1
49 RGQ0748-K ANTENNA HOLDER 1
50 RHD20024-1 SCREW 3
53 N1CYYYY00012 DIPOLE ANTENNA 1
54 TZH3QEZ009 20P FFC (ALL-
PLAY MODULE-
MAIN)
1
55 TZH3QEZ010 30P FFC (ALL-
PLAY MODULE-
MAIN)
1
