Panasonic SA-PT160E - Page 2

MPEG4 (*.asf) (For E/EG only)
USB device file system: FAT12
FAT16
FAT32
USB Port power: 500 mA (Max)
O
OO
ODISC SECTION (E/EG areas)
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video, DivX (*1, *2)]
(2) DVD-RAM [DVD-VR, MP3 (*2, *6), JPEG (*2, *3), MPEG4
(*2, *4), DivX (*1, *2)]
(3) DVD-R [DVD-Video, DVD-VR, MP3 (*2, *6), JPEG (*2, *3),
MPEG4 (*2, *4), DivX (*1, *2)]
(4) DVD-R DL [DVD-Video, DVD-VR]
(5) DVD-RW [DVD-Video, DVD-VR, MP3 (*2, *6), JPEG (*2, *3),
MPEG4 (*2, *4), DivX (*1, *2)]
(6) +R/+RW [Video]
(7) +R DL [Video]
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD (*5), MP3 (*2, *6),
WMA (*2, *7), JPEG (*2, *3), MPEG4 (*2, *4), DivX (*1, *2)]
*1 Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.
*2 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.
*3 Exif Ver 2.1 JPEG Baseline files
OPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2, or 4:4:4).
Extremely long and narrow pictures may not be displayed.
*4 MPEG4 data recorded with the Panasonic SD multi cameras
or DVD video recorders.
OConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G.726 audio system.
*5 Conforming to IEC62107
*6 MPEG-1 Layer 3, MPEG-2 Layer 3
*7 Windows Media Audio Ver.9.0 L3
ONot compatible with Multiple Bit Rate (MBR)
O
OO
ODISC SECTION (EB area)
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video]
(2) DVD-RAM [DVD-VR, MP3 (*1, *4), JPEG (*1, *2)]
(3) DVD-R [DVD-Video, DVD-VR, MP3 (*1, *4), JPEG (*1, *2)]
(4) DVD-R DL [DVD-Video, DVD-VR]
(5) DVD-RW [DVD-Video, DVD-VR, MP3 (*1, *4), JPEG (*1, *2)]
(6) +R/+RW [Video]
(7) +R DL [Video]
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD (*3), MP3 (*1, *4),
WMA(*1,*5),JPEG(*1,*2)
*1 The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups.
*2 Exif Ver 2.1 JPEG Baseline files
OPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2, or 4:4:4).
Extremely long and narrow pictures may not be displayed.
*3 Conforming to IEC62107
*4 MPEG-1 Layer 3, MPEG-2 Layer 3
*5 Windows Media Audio Ver.9.0 L3
ONot compatible with Multiple Bit Rate (MBR)
Pick up
Wavelength (DVD/CD): 662/785 nm
Laser power (DVD/CD): CLASS 1/CLASS 1M
Audio output (Disc)
Number of channels: 5.1ch(FL,FR,C,SL,SR,
SW)
O
OO
OVIDEO SECTION
Video System: PAL 625/50, PAL 525/60,
NTSC
Composite Video Output:
O
OO
OOutput level: 1Vp-p(75Ω)
O
OO
OTerminal: Scart jack (1 system)
S-video Output:
O
OO
OY output level: 1Vp-p(75Ω)
O
OO
OC output level: PAL; 0.3 Vp-p (75 Ω)
NTSC; 0.286 Vp-p (75 Ω)
O
OO
OTerminal Scart jack (1 system)
RGB Video Output:
O
OO
OR output level: 0.7Vp-p(75Ω)
O
OO
OG output level: 0.7Vp-p(75Ω)
O
OO
OB output level: 0.7Vp-p(75Ω)
O
OO
OTerminal: Scart jack (1 system)
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses DL2SU (Single tray) mechanism.
Power Supply:
This unit uses Switching Mode Power Supply (SMPS).

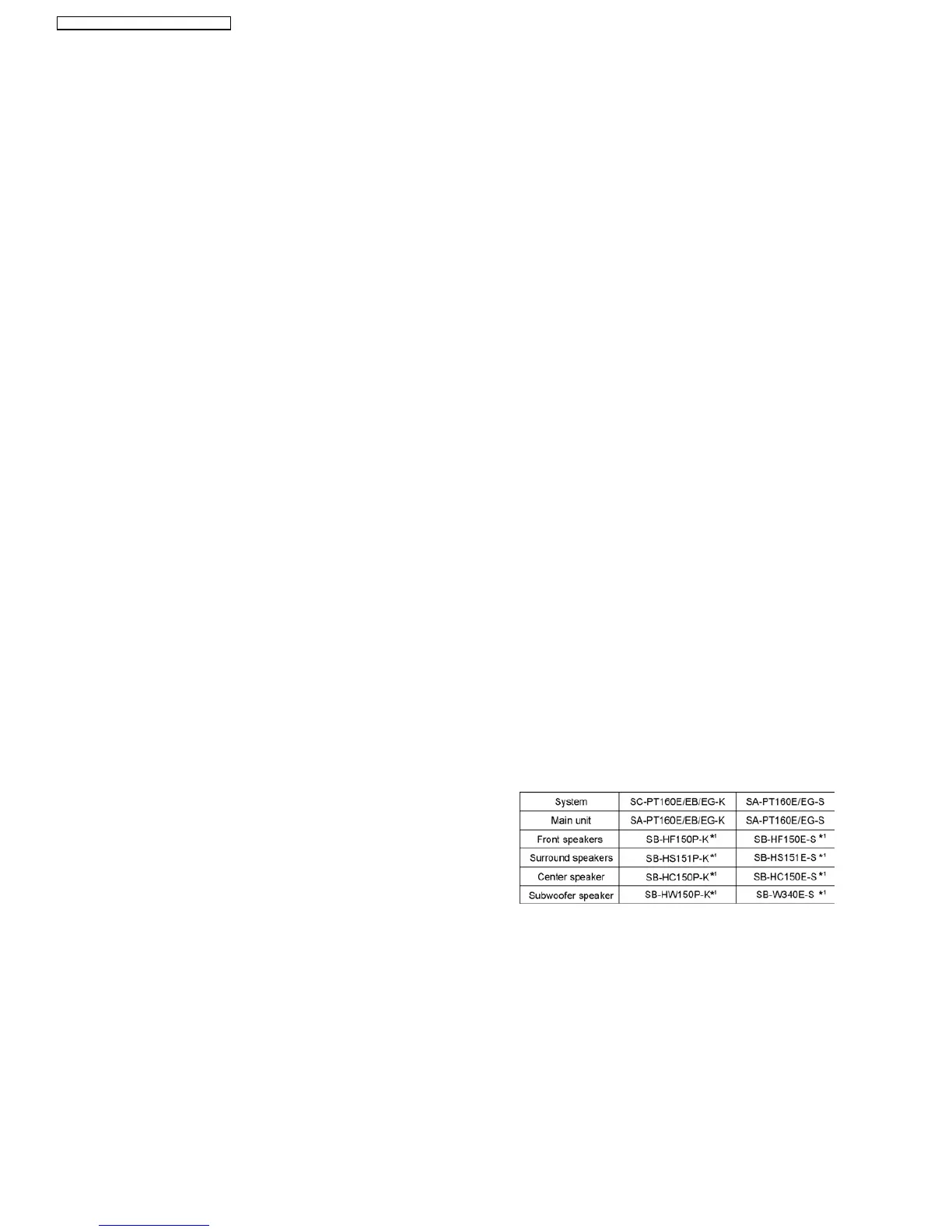

Refer to their respective original service manuals for *1
2
SA-PT160E / SA-PT160EB / SA-PT160EG
