Panasonic SA-PT160E - Disassembly of Traverse Unit

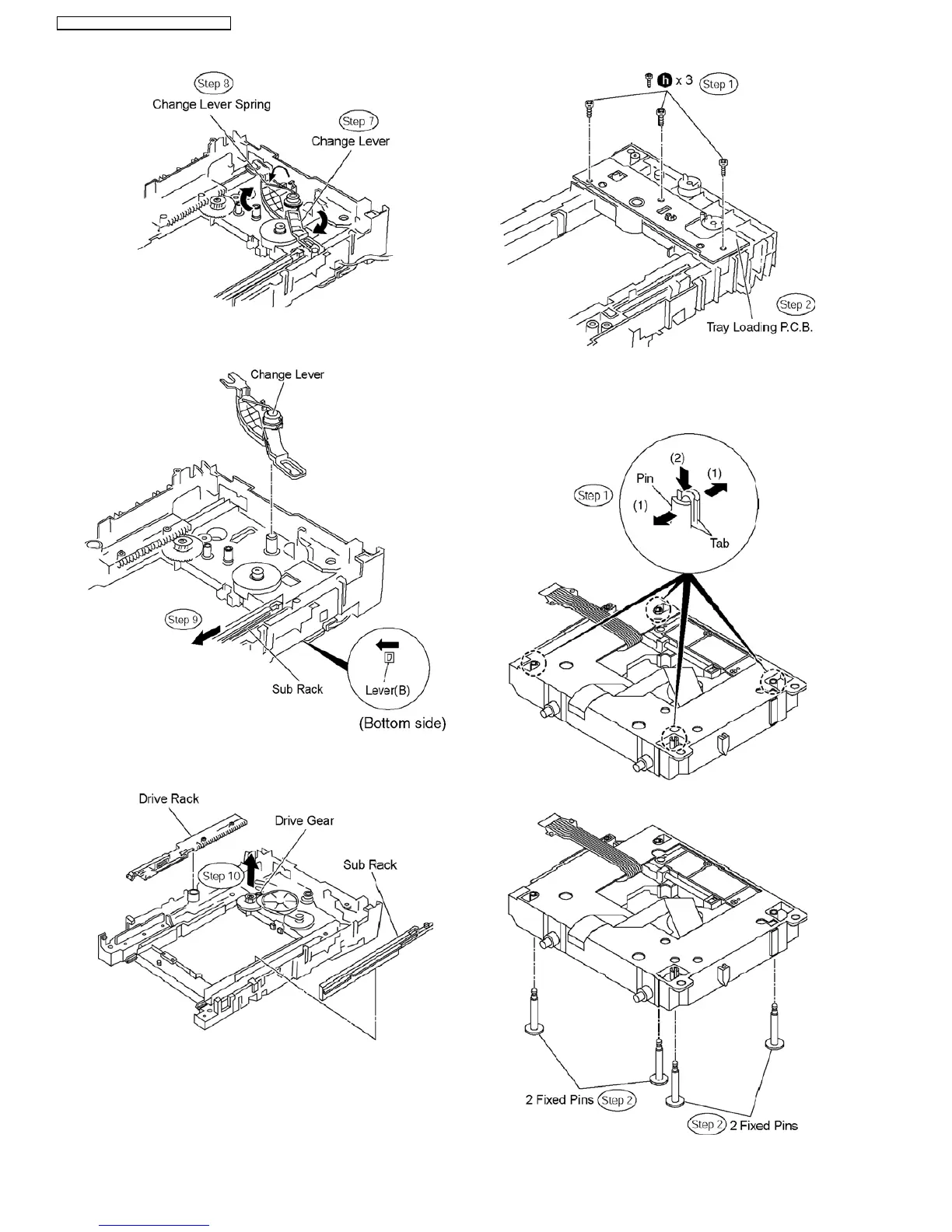

Step 9 Pull the lever (B) at the bottom side in the direction of
arrow and remove the change lever.
Step 10 Remove the drive rack, the sub rack and the drive gear
in the direction of arrow.
10.1.4. Disassembly of Tray Loading
P.C.B.
Step 1 Remove 3 screws
Step 2 Remove Tray Loading P.C.B.
10.1.5. Disassembly of Traverse Unit
Step 1 Spread the tabs to push in the pin in the direction of
arrows.
Step 2 Remove 4 fixed pins.
48
SA-PT160E / SA-PT160EB / SA-PT160EG
