Panasonic SA-PT160E - Disassembly Procedure; Disassembly of DVD Mechanism Unit; Disassembly of Tray

10 Assembly and
Disassembly of DVD
Mechanism Unit
10.1. Disassembly Procedure
10.1.1. Disassembly of Traverse Unit (with
Middle Chassis)

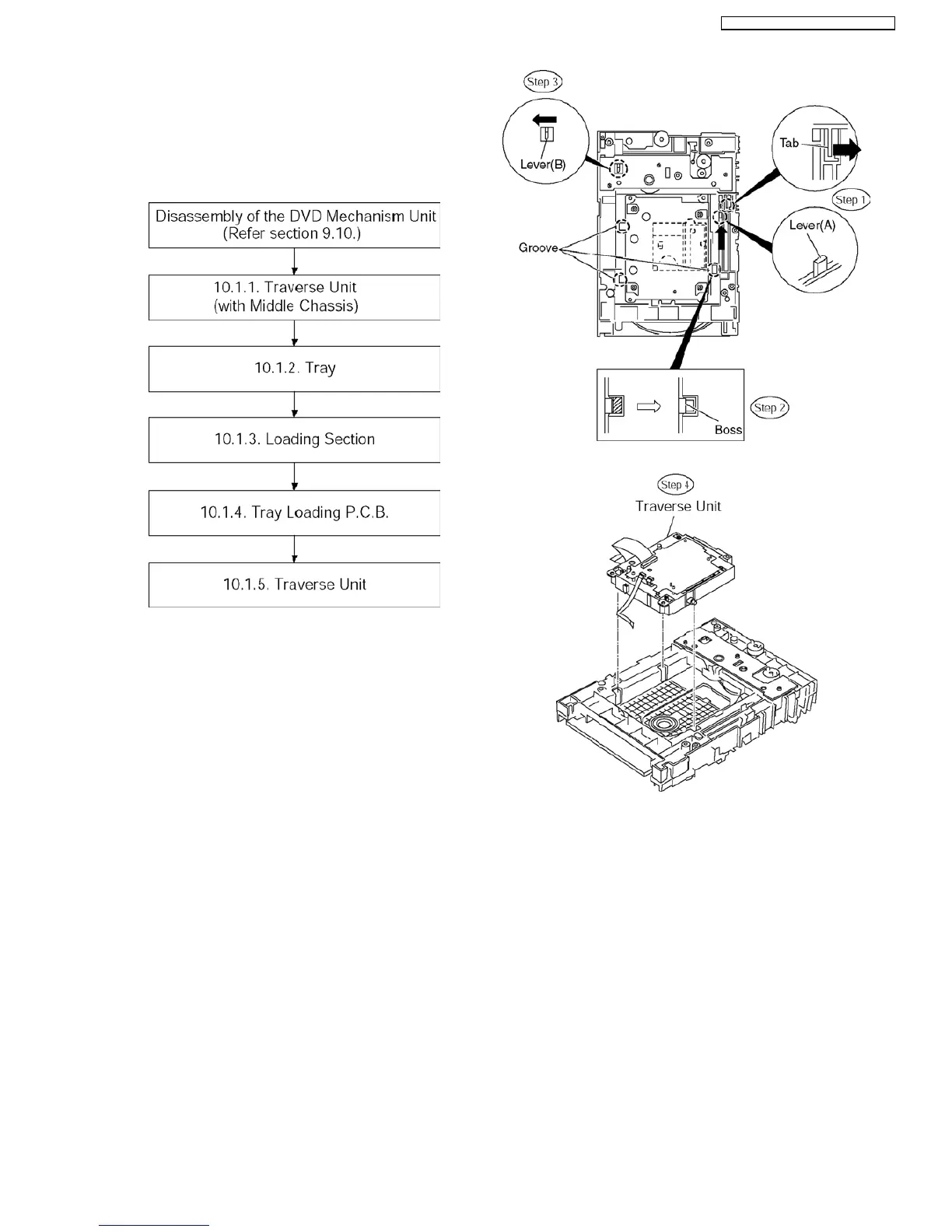

Step 1 Slide the lever (A) in the arrow direction (to the opposite
side) till it stops.
Step 2 Slide the lever (A) further by bending the tab at the right
side of the lever A in the right direction. (The right groove opens
and the boss becomes seen.)
Step 3 Open the lever (B) to left. (The 2 grooves at the left side
open.).
Step 4 Remove the traverse unit.
10.1.2. Disassembly of Tray
Step 1 Slide the clamp plate while pressing the stopper in the
arrow direction, and remove the clamp plate.
