18 Schematic Diagram Notes
•
• •
• This schematic diagram may be modified at any time
with the development of new technology.

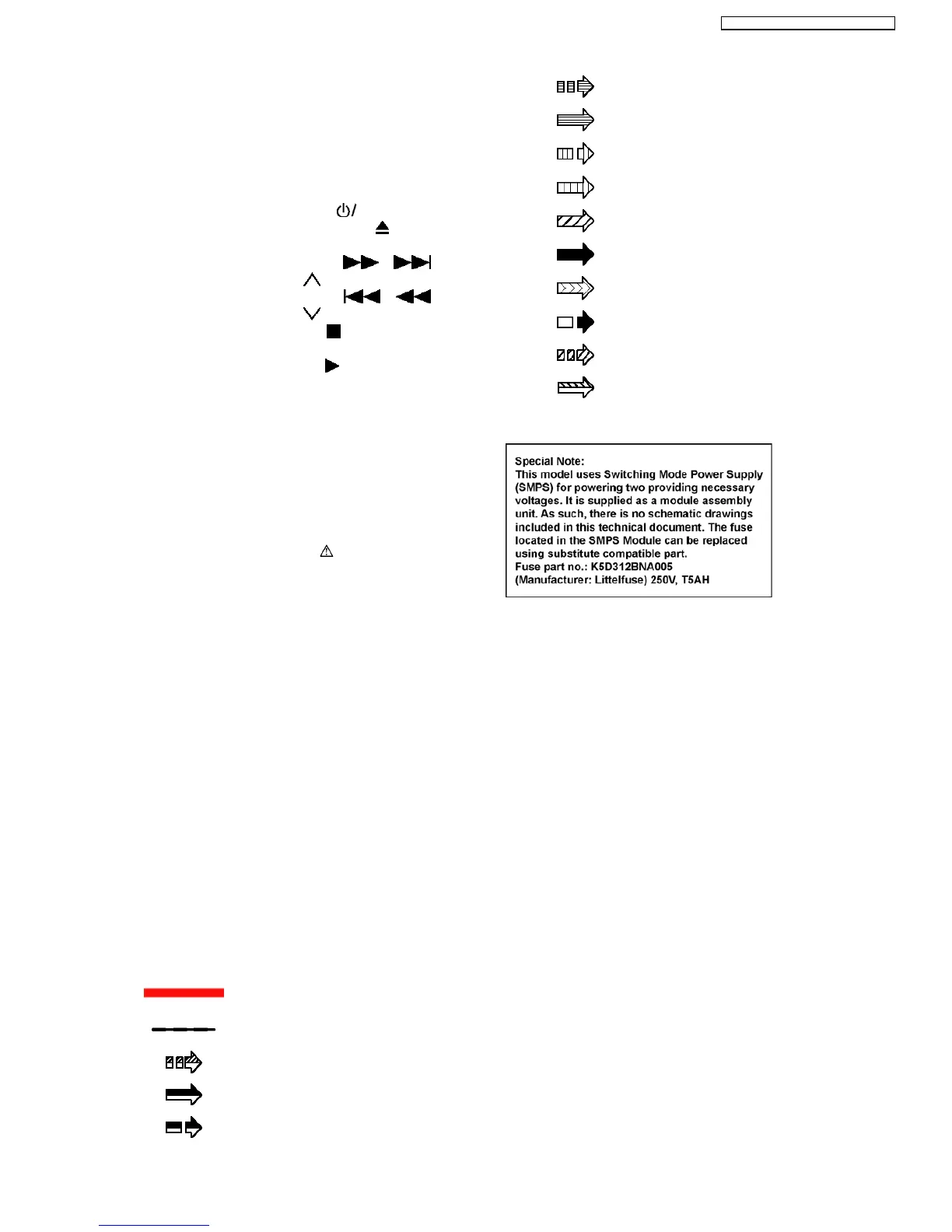

Notes:
S901: Play switch.
S902: Open switch.
S6800: Power switch (
).
S6801: Open / close switch (
Open /
Close).
S6802: Forward switch (
/ /
TUNING
).
S6803: Reverse switch (
/ /
TUNING
).
S6804: Stop switch (
/ -TUNE MODE / —
FM MODE).
S6805: Play switch (
/ Memory).
S6806: Selector switch.
VR6800: Volume jog.
•
• •
• Indicated voltage values are the standard values for the unit
measured by the DC electronic circuit tester (high-
impedance) with the chassis taken as standard. Therefore,
there may exist some errors in the voltage values,
depending on the internal impedance of the DC circuit
tester.
•
• •
• Important safety notice:
Components identified by
mark have special
characteristics important for safety.
Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-
noise (resistors), etc. are used.
When replacing any of components, be sure to use only
manufacturer´s specified parts shown in the parts list.
•
• •
• Resistor
Unit of resistance is OHM [Ω] (K=1,000, M=1,000,000).
•
• •
• Capacitor
Unit of capacitance is µF, unless otherwise noted. F=Farad,
pF=Pico-Farad
•
• •
• Coil
Unit of inductance is H, unless otherwise noted.
•
• •
• *
For indication only.
•
• •
• Voltage and signal line
: +B signal line
: -B signal line
: USB signal line
: DVD RF signal line
: Motor Drive signal line
: DVD Audio signal line
: DVD Video signal line
: CD Head signal line
: DVD Head signal line
: Main signal line
: Tracking Error signal line
: Focus Error signal line
: FM signal line
: AUX signal line
: TV Audio signal line
71
SA-PT160E / SA-PT160EB / SA-PT160EG
