14.5. Waveform Chart

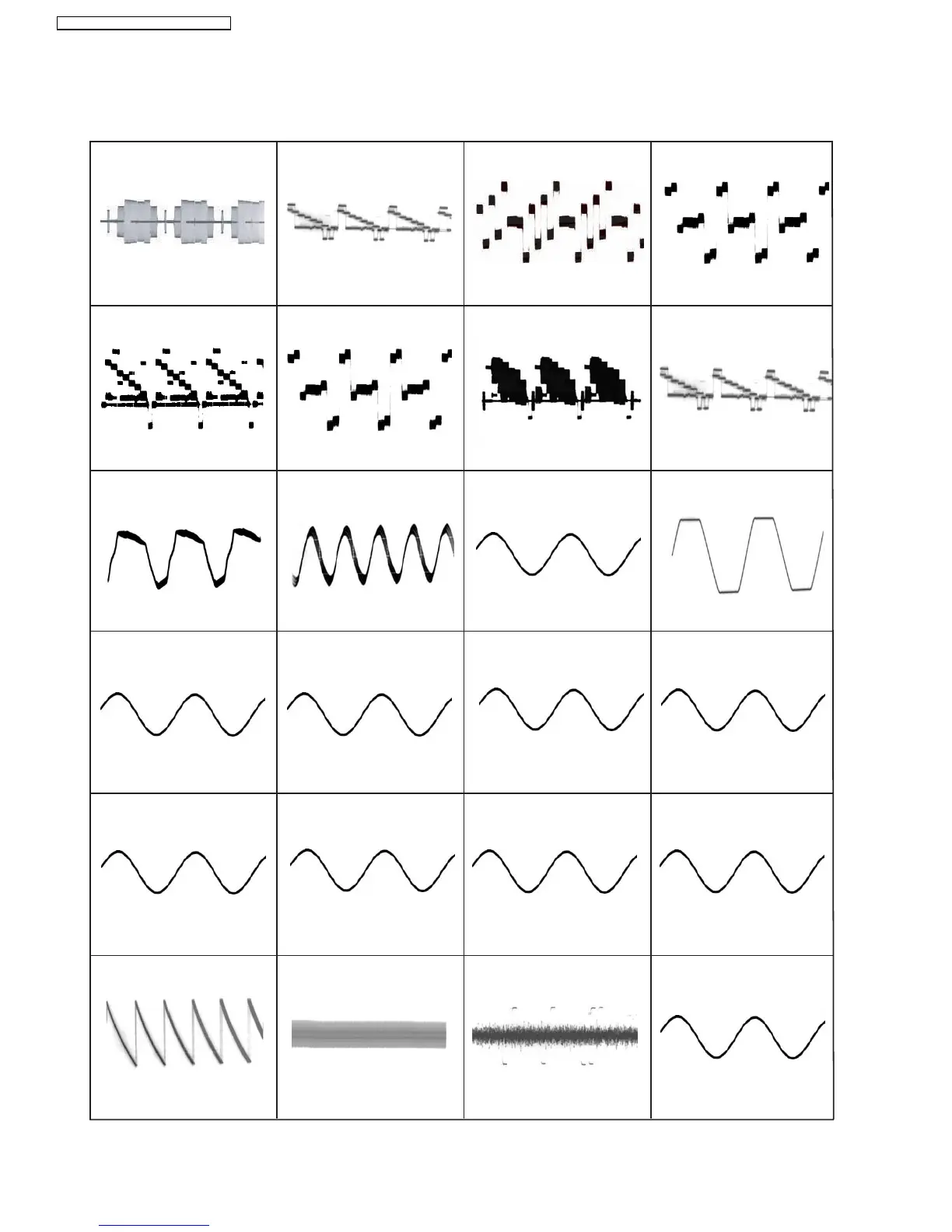

14.5.1. Waveform 1
WF No. IC1101-4 (PLAY)
1.3Vp-p(20usec/div)
WF No. IC1101-8,21,24 (PLAY) WF No. IC1101-11 (PLAY)
0.5Vp-p(20usec/div)
WF No. IC1101-13 (PLAY)
0.5Vp-p(20usec/div)
WF No. IC1101-18 (PLAY)
0.9Vp-p(20usec/div)0.8Vp-p(20usec/div)
WF No. IC1101-15 (PLAY)
WF No. IC1102-2 (PLAY)
2.1Vp-p(20usec/div)
WF No. IC2018-13 (PLAY)
200Vp-p(5msec/div)
WF No. IC2018-15 (PLAY)
3.4Vp-p(50nsec/div)
WF No. IC2102-79,80,81,82
83,84 (PLAY)
1.4Vp-p(200usec/div)
WF No. IC1101-32 (PLAY)
2.1Vp-p(20usec/div)
1.1Vp-p(20usec/div)
WF No. IC2102-95,99 (PLAY)
2Vp-p(200usec/div)
WF No. IC2102-96 (PLAY)
0.3Vp-p(200sec/div)
WF No. IC2102-100 (PLAY)
0.7Vp-p(200usec/div)
WF No. IC5100- 2,12(PLAY)
0.6Vp-p(200usec/div)
2.1Vp-p(200usec/div)
WF No. IC5100-6,8 (PLAY)
WF No. IC5200- 2,12(PLAY)
0.6Vp-p(200usec/div)
2.1Vp-p(200usec/div)
WF No. IC5200-6,8 (PLAY)
WF No. IC5300- 2,12(PLAY)
0.6Vp-p(200usec/div) 2.1Vp-p(200usec/div)
WF No. IC5300-6,8 (PLAY)
WF No. IC8001-64,67 (PLAY)
0.4Vp-p(200usec/div)
WF No. IC6901-5 (PLAY)
2.1Vp-p(5usec/div)
WF No. IC8001-95,96 (PLAY)
WF No. IC8001-122,126 (PLAY)
3.4Vp-p(200usec/div)
4Vp-p(200usec/div)
