11.3. Checking & Repairing SMPS
Module P.C.B.
•
• •
• Follow (Step 1) to (Step 13) of Item 11.2.

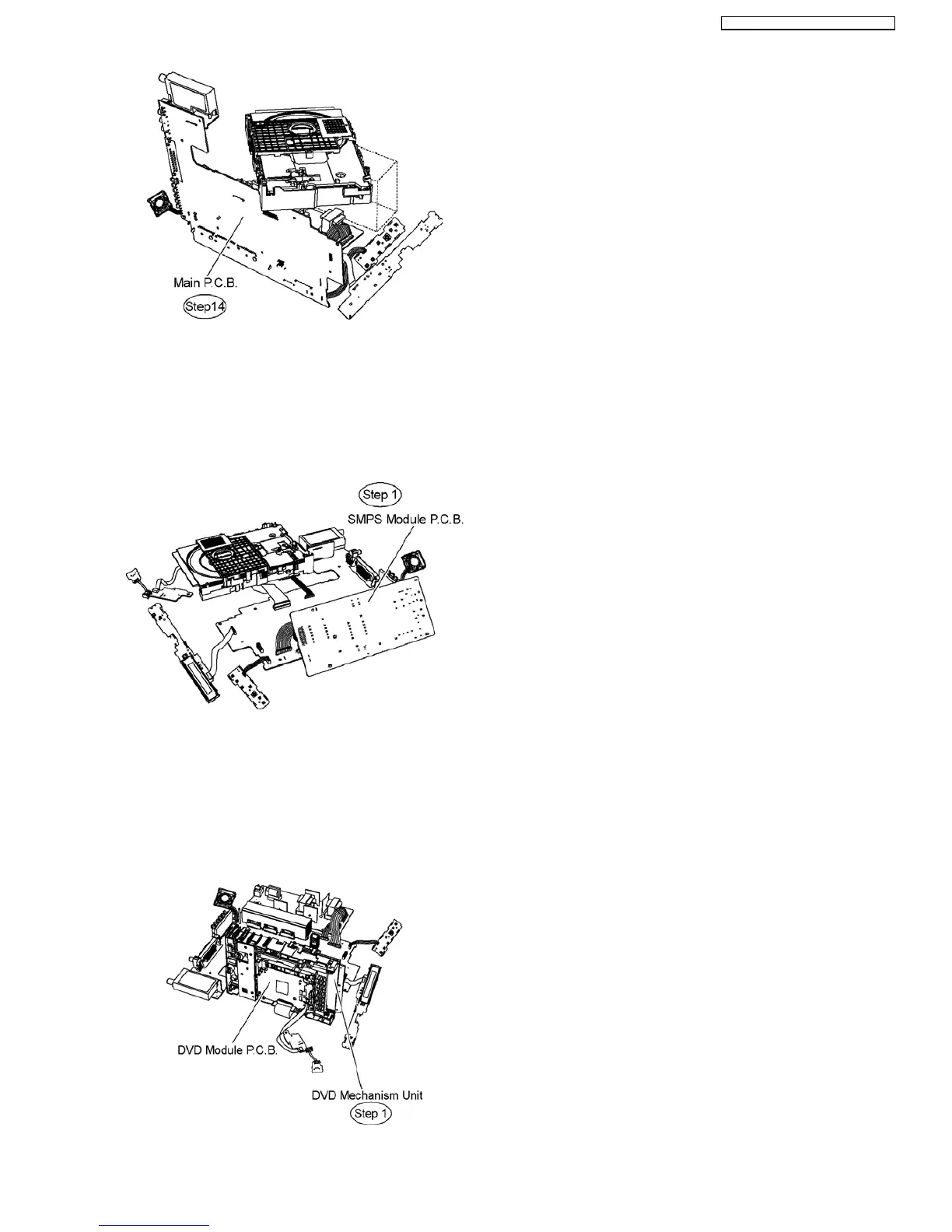

Step 1 Turn over the SMPS Module P.C.B. according to the
diagram shown below.
11.4. Checking & Repairing DVD
Module P.C.B.
•
• •
• Follow (Step 1) to (Step 13) of Item 11.2.
Step 1 Turn over the DVD mechanism unit according to the
diagram shown below.
