Panasonic SA-VK61D - O) AC Inlet P.C.B. & (P) Voltage Selector P.C.B

21.11. (O) AC Inlet P.C.B. & (P) Voltage Selector P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
FC4
FC3
F2
250V T1.6AL
PbF
W1A
YEL
W3A
D.BLU
W5A
ORG
W6A
BWN
W4A
BLK
W2A
PUR
W7A
L.BLU
J521
P1
5
6
7
8
1
2
3
4
P4
P2
P6
P3
P5
S501
VOLTAGE
SELECTOR
J495
J494
J493
J492
J491
1
CN953
2
3
F1
250V T3.15AL
FC2 FC1
PbF
J587
J586
J584
J585
JK500
AC IN
110V
127V
220V-230V
240V
50HZ/60HZ
Z501
T502
SUB-TRANSFORMER
L500
3
4
1
2

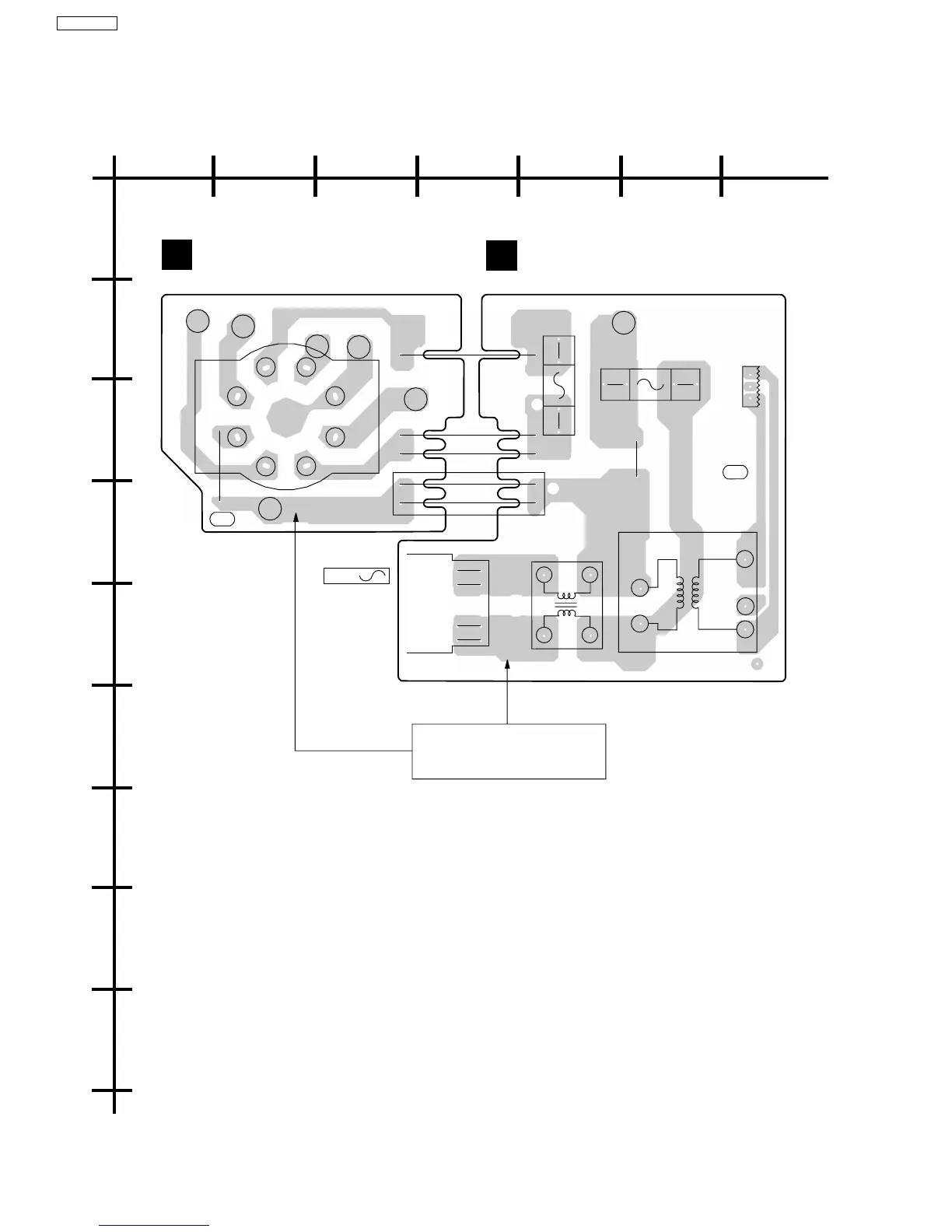

VOLTAGE SELECTOR
P.C.B (REPX0379C)
AC INLET
P.C.B (REPX0379C)
PL1
CAUTION
RISK OF ELECTRIC SHOCK
AC VOLTAGE LINE.
PLEASE DO NOT TOUCH THIS P.C.B
P
O
124
SA-VK61DGS
