Panasonic SA-VK61D - DVD Changer Unit Main Component Replacement Procedures

17.8.1. Replacement of the Traverse Deck
· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the Disassembly for the Top Ornament Unit of Item
17.4.
· Follow the (Step 1) - (Step 4) of Item 17.5.
· Follow the (Step 1) - (Step 2) of Item 17.5.1.

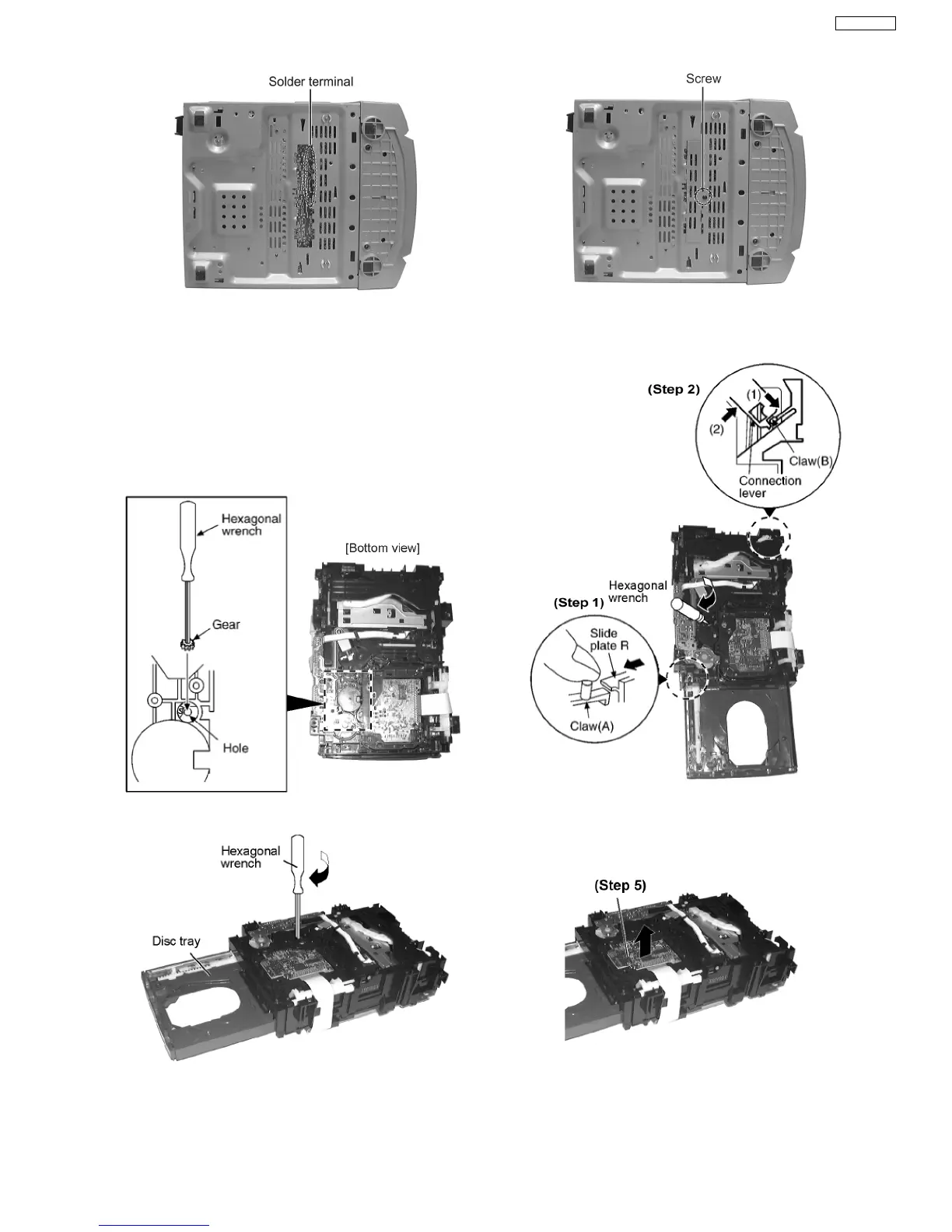

Step 1 Insert the gear with hexagonal wrench into the hole.
Step 2 Rotate the hexagonal wrench in the direction of arrow
(clockwise), and then open the disc tray fully.
Step 5 Fix back the bottom chasis with a screw as shown.
Step 3 With pressing the claw (A), rotate the hexagonal wrench
clockwise. (The slide plate R moves for a little amount.)
Step 4 Pressing the claw (B) in the direction of arrow (1), the
connection lever moves in the direction of arrow (2).
Step 5 Lift up the traverse deck ass’y.
