Panasonic SA-VK61D - Disassembly of Deck Mechanism Unit

· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the Disassembly for the Top Ornament Unit of Item
17.4.
· Follow the Disassembly for the DVD changer unit of Item
17.5.

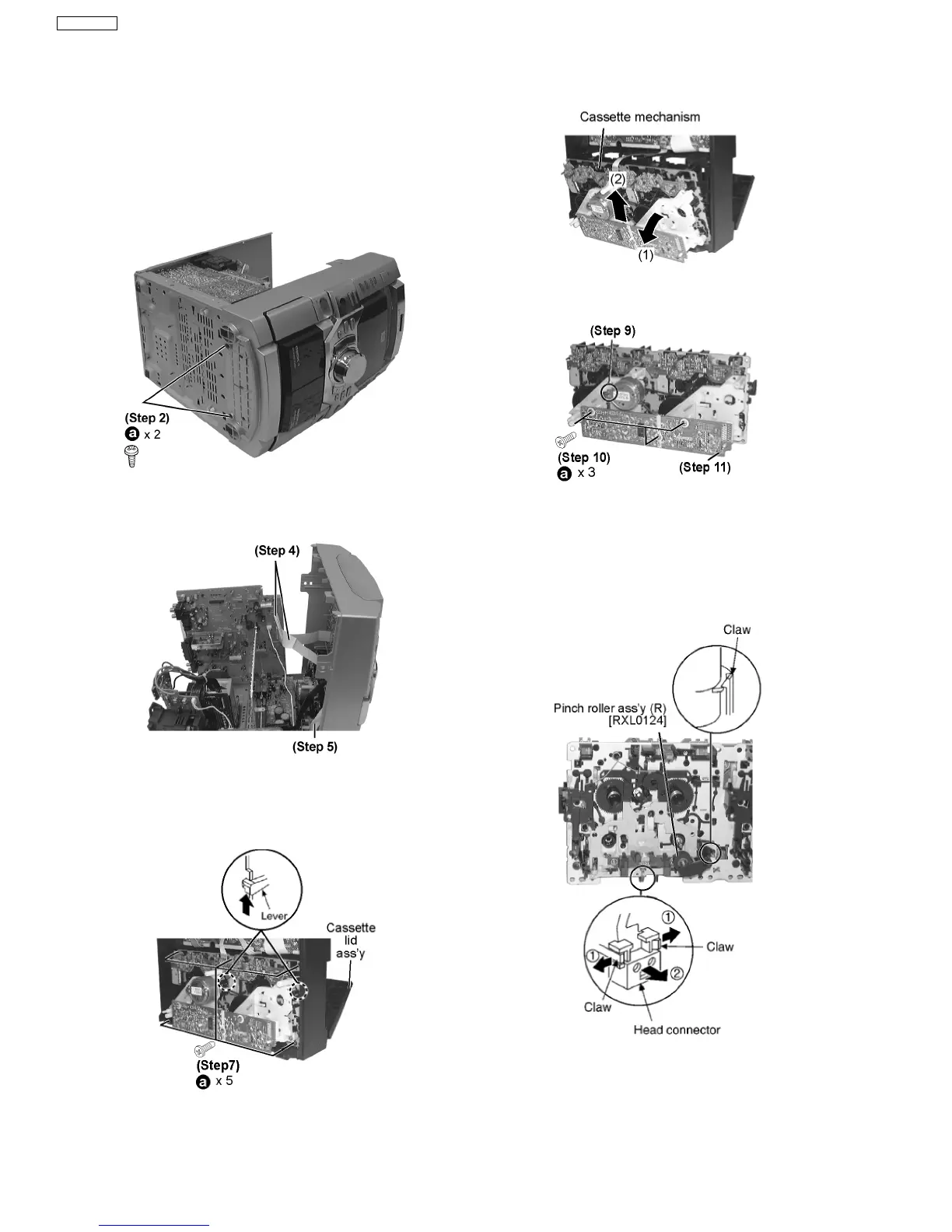

Step 1 Lay the unit as shown.
Step 2 Remove 2 screws.
Step 3 Release the 2 claws, and then draw the front panel
ass’y forward.
Step 4 Detach FFC Board (CN601 & CN602).
Step 5 Detach flat cable wire (CN1001).
Step 6 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 7 Remove the 5 screw.
Step 8 Tilt the cassette mechanism in the direction of arrow (1),
and then remove it in the direction of arrow (2).
· Disassembly of Deck P.C.B.
Step 9 Unsolder the motor terminals.
Step 10 Remove 4 screws.
Step 11 Remove Deck P.C.B.
* The mechanism as shown below is for DECK1. For the
one of DECK 2, perform the same procedures.
· Disassembly of pinch roller ass’y & head block
Step 12 Release the 2 claws, and then remove the pinch roller
(R), (F).
Step 13 Release ther 2 claws, and then remove the head
connector.
17.9. Disassembly of Deck Mechanism Unit
50
SA-VK61DGS
