Panasonic SA-VKX95EE - Page 93

93

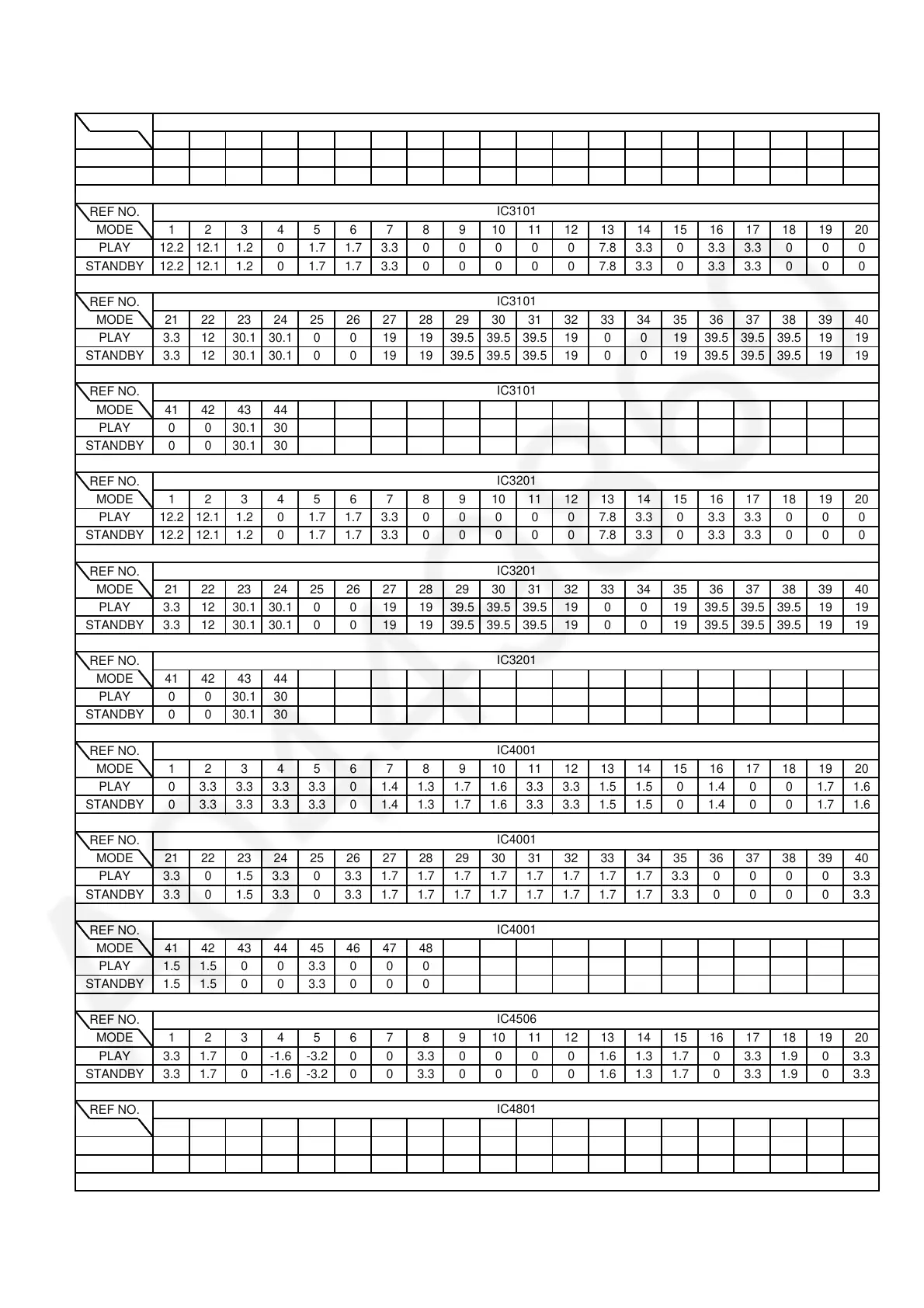

14.1.7. Main P.C.B. Ass'y (3/5)
REF NO.
MODE 41 42 43 44
PLAY 0 0 30.1 30
STANDBY 0 0 30.1 30
REF NO.
MODE 1234567891011121314151617181920
PLAY 12.2 12.1 1.2 0 1.7 1.7 3.3 000007.83.303.33.3000
STANDBY 12.2 12.1 1.2 0 1.7 1.7 3.3 000007.83.303.33.3000
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
PLAY 3.3 12 30.1 30.1 0 0 19 19 39.5 39.5 39.5 19 0 0 19 39.5 39.5 39.5 19 19
STANDBY 3.3 12 30.1 30.1 0 0 19 19 39.5 39.5 39.5 19 0 0 19 39.5 39.5 39.5 19 19
REF NO.
MODE 41 42 43 44
PLAY 0 0 30.1 30
STANDBY 0 0 30.1 30
REF NO.
MODE 1234567891011121314151617181920
PLAY 12.2 12.1 1.2 0 1.7 1.7 3.3 000007.83.303.33.3000
STANDBY 12.2 12.1 1.2 0 1.7 1.7 3.3 000007.83.303.33.3000
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
PLAY 3.3 12 30.1 30.1 0 0 19 19 39.5 39.5 39.5 19 0 0 19 39.5 39.5 39.5 19 19
STANDBY 3.3 12 30.1 30.1 0 0 19 19 39.5 39.5 39.5 19 0 0 19 39.5 39.5 39.5 19 19
REF NO.
MODE 41 42 43 44
PLAY 0 0 30.1 30
STANDBY 0 0 30.1 30
REF NO.
MODE 1234567891011121314151617181920
PLAY 0 3.3 3.3 3.3 3.3 0 1.4 1.3 1.7 1.6 3.3 3.3 1.5 1.5 0 1.4 0 0 1.7 1.6
STANDBY 0 3.3 3.3 3.3 3.3 0 1.4 1.3 1.7 1.6 3.3 3.3 1.5 1.5 0 1.4 0 0 1.7 1.6
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
PLAY 3.3 0 1.5 3.3 0 3.3 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 3.3 00003.3
STANDBY 3.3 0 1.5 3.3 0 3.3 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 3.3 00003.3
REF NO.
MODE 41 42 43 44 45 46 47 48
PLAY 1.5 1.5 0 0 3.3 0 0 0
STANDBY 1.5 1.5 0 0 3.3 0 0 0
REF NO.
MODE 1234567891011121314151617181920
PLAY 3.3 1.7 0 -1.6 -3.2 0 0 3.3 00001.61.31.703.31.903.3
STANDBY 3.3 1.7 0 -1.6 -3.2 0 0 3.3 00001.61.31.703.31.903.3
REF NO.
MODE 1234
PLAY 3.3 0 1.8 3.3
STANDBY 3.3 0 1.8 3.3
IC3201
SA-VKX95GA/GS/EE MAIN P.C.B. ASS'Y
IC4001
IC4001
IC4001
IC4506
IC4801
IC3001
IC3101
IC3101
IC3201
IC3201
IC3101
