Note:

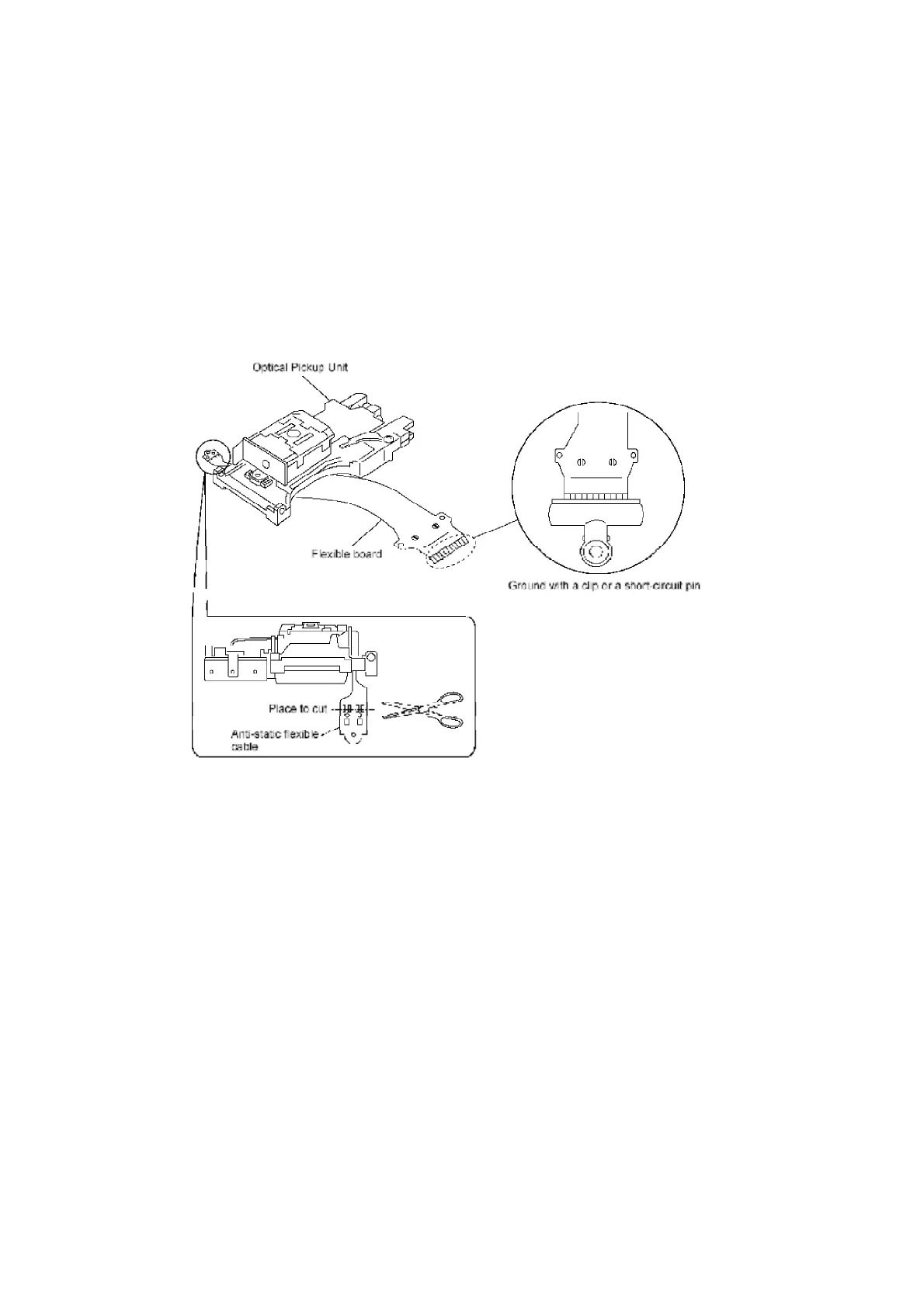

- If an anti-static soldering iron is not available, short-circuit the
terminal surface of the flexible cable and then the land using a clip
or equivalent device.
- For short-circuit of the above laser diode, remove soldering as
instructed in this manual after completing repair.
10. Self-Diagnosis Function and Service Mode
10.1. Self-Diagnosis Function (VTR Section)
10.1.1. Sef-Diagnosis Display
<Overview>
The details of failures detected in circuit or mechanism by the microcomputer will be
automatically displayed on the FIP as the result of self diagnosis.
<Setting>
The details of a failure applicable to an error code are displayed on the minute, ten seconds, one
second position of the FIP.
<Display>
FIP display example:
17
