Panasonic SB-WA310 - Page 63

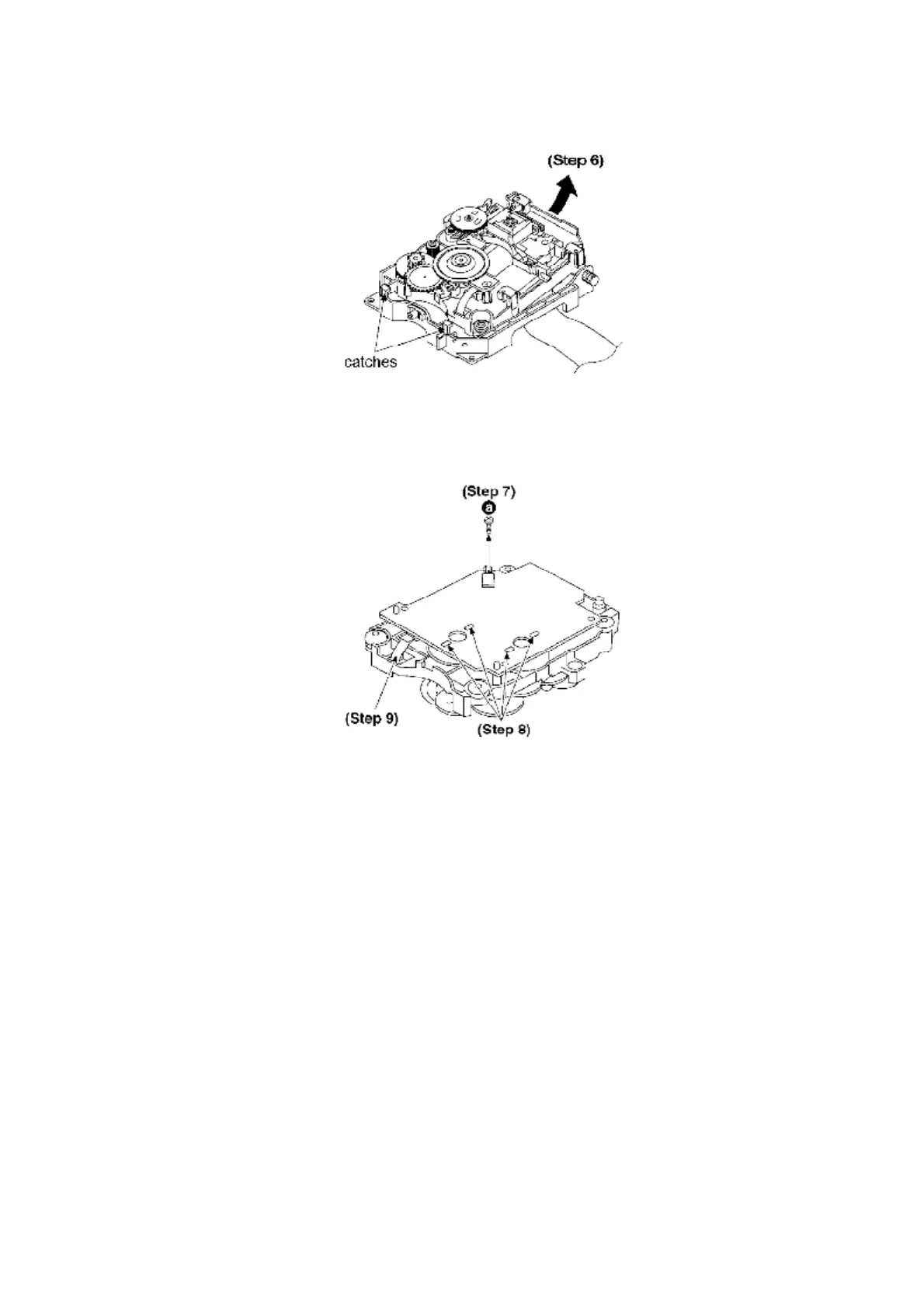

Step 7: Remove the screw.
Step 8: Remove the soldering of the motor terminals.
Step 9: Detach the FFC.
Step 10: Turn over the DVD Module (1) P.C.B.
Step 11: Remove the FFC from the connector.
[Note]
After removing FFC from connector, place the short pin to the FFC terminal.
63
