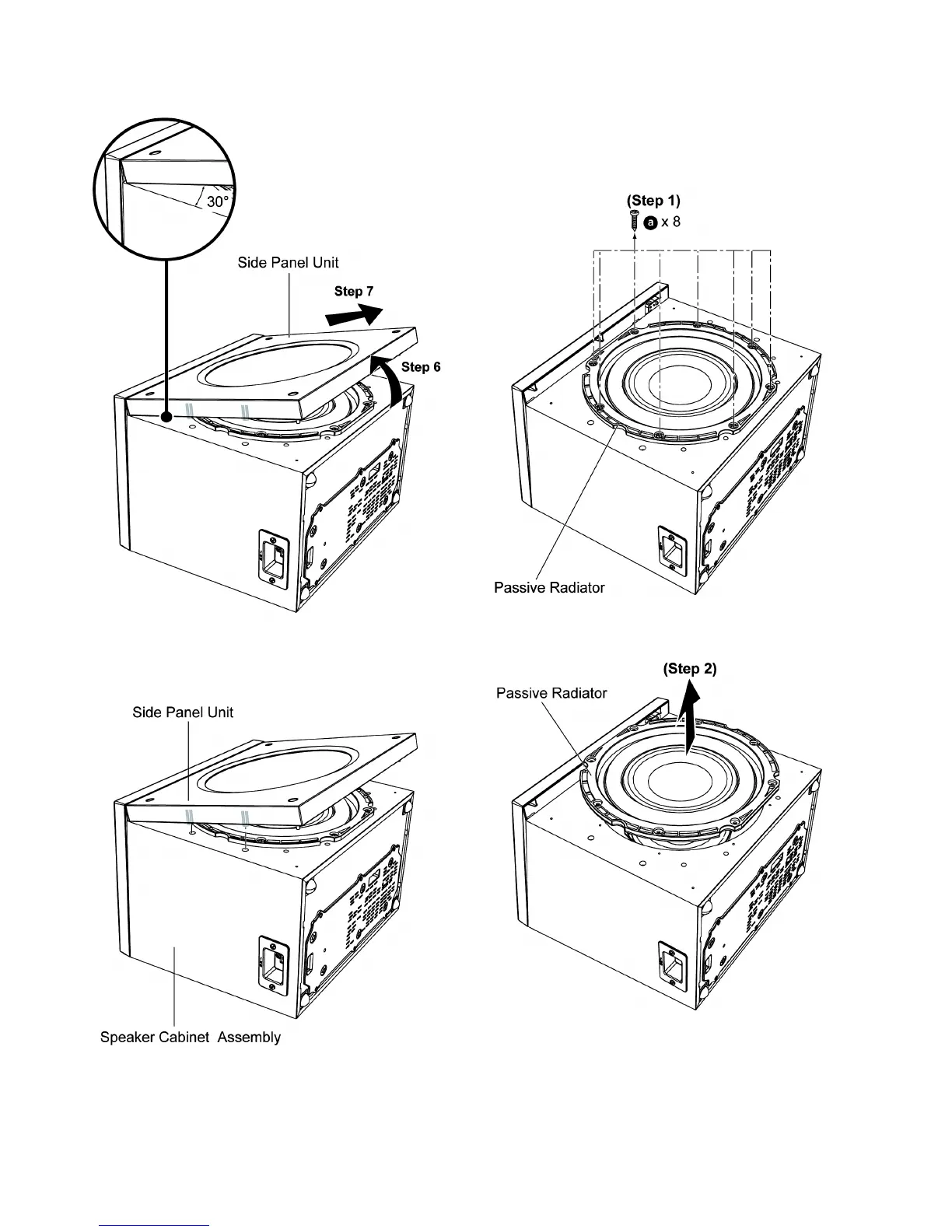

Step 6 : Lift up the Side Panel Unit by 30° as shown.
Step 7 : Slide out the Side Panel Unit as arrow shown.
Caution : During assembly of the Side Panel Unit, align the
bosses to their respective holes on the Speaker Cabinet
Assembly and attach it.
7.4. Disassembly of Passive Radia-
tor
• Refer to “Disassembly of Side Panel Unit”.
Step 1 : Remove 8 screws.
Step 2 : Lift up and remove Passive Radiator as arrow shown.
