Connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
Compatible with FULL HD 3D TV and Blu-ray Player
≥ This unit can pass through the 3D signal from a 3D compatible Blu-ray Player to a FULL HD 3D TV.
ARC (Audio Return Channel)
(Available only when using an ARC compatible
TV)
With this function it is possible to receive the digital
audio signal from the TV without connecting any
other audio cable.
≥ Refer to the operating instructions of the TV for
the settings to output digital audio.
A HDMI cable (not supplied)
§ Be sure to connect to the TV’s ARC compatible terminal.
(Refer to the operating instructions for the TV.)
≥ If the connected TV is ARC compatible, but audio is not
output to this unit, connect using the optical digital audio
cable. (> right, “Basic connection (with an optical digital
audio cable compatible TV)”)
A HDMI cable (not supplied)
B Optical digital audio cable
(not supplied)
≥ When connected to an ARC compatible TV, set “TV Audio” to
“ARC Off” to output the audio signal from the optical digital
audio cable. (> 20, “TV Audio”)
Connection to a TV
∫ HDMI
The HDMI connection supports VIERA Link
“HDAVI Control” (> 16) when used with a
compatible Panasonic TV.
≥ Use High Speed HDMI Cables that have the HDMI logo (as
shown on the cover). It is recommended that you use
Panasonic’s HDMI cable.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50
(5.0 m), etc.
≥ Non-HDMI-compliant cables cannot be utilised.
∫ OPTICAL IN
Connect the optical digital audio cable if the TV is
not ARC compatible (> below).

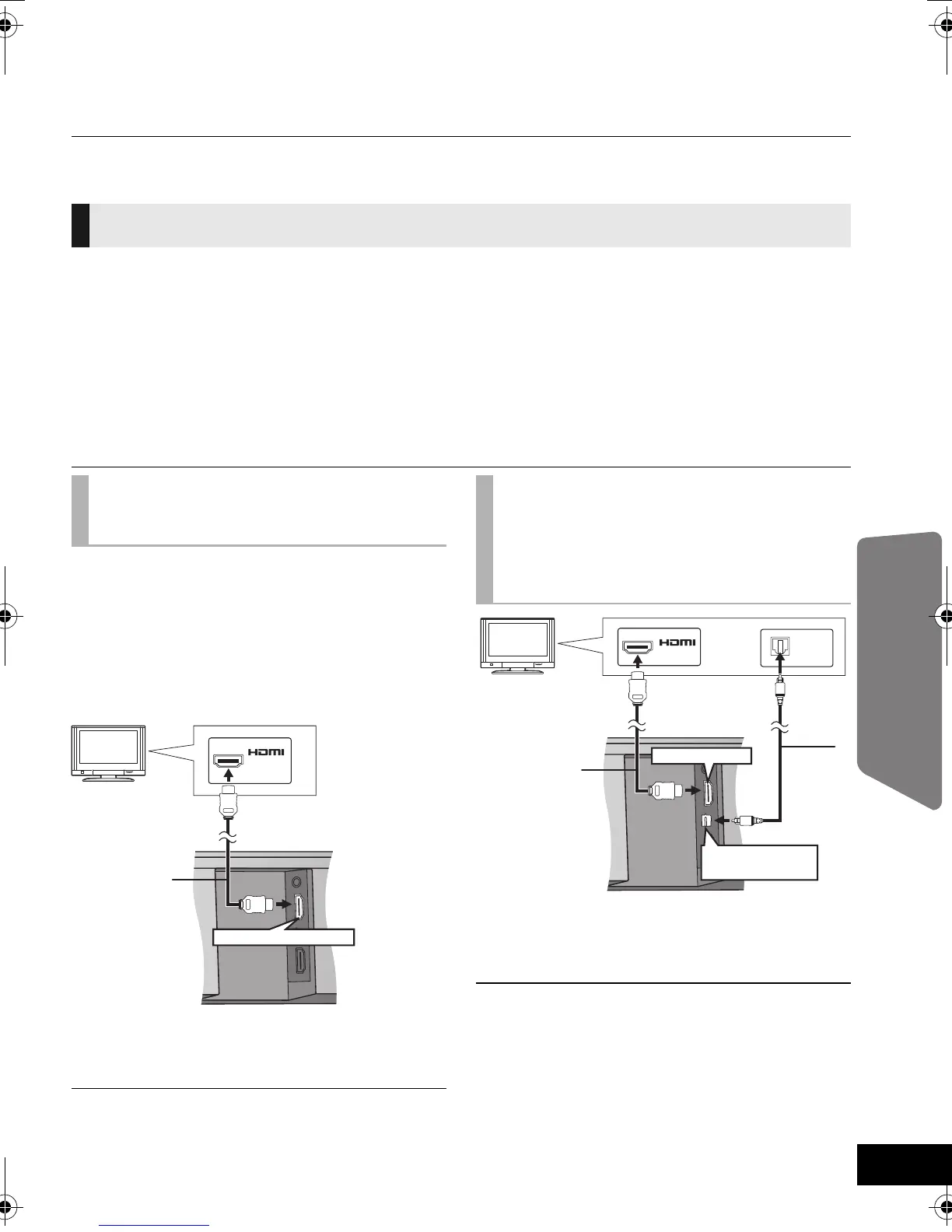

Basic connection (with an
ARC compatible TV)
AV IN
(ARC)
HDMI AV OUT (ARC)
Basic connection
(with an optical digital
audio cable compatible
TV)
OPTICAL
OUT
AV IN
OPTICAL DIGITAL
AUDIO IN
HDMI AV OUT
