26
3 Complete all the necessary connections to this unit. (> 11)
≥ Connect the AC mains lead to this unit, but do not connect it to the household mains socket until the
installation is completed.
≥ For details, refer to the operating instructions for this unit.

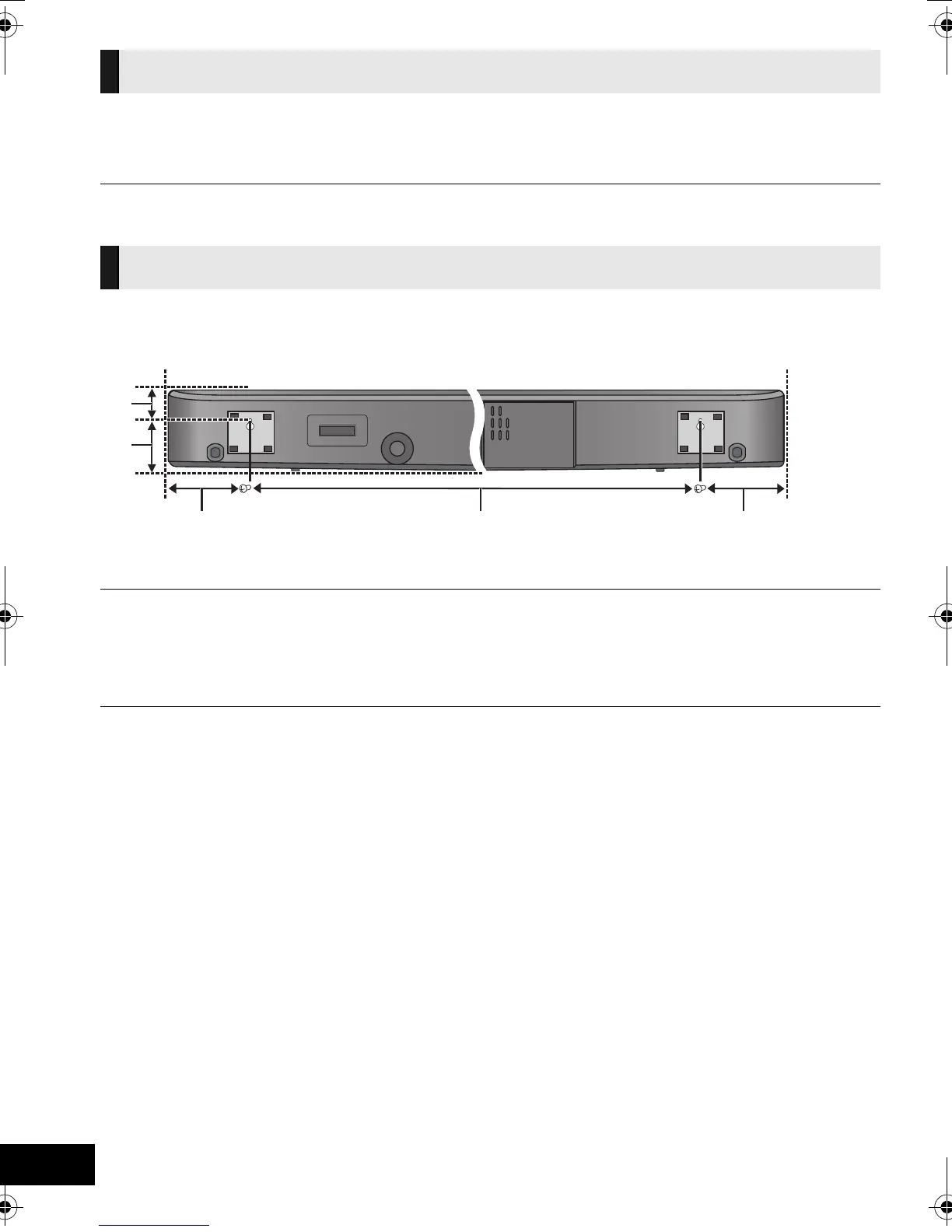

4 Use the measurements indicated below to identify the screwing positions on
the wall.
A 36 mm
B 72 mm
C 108.5 mm
D 812 mm
≥ Position the unit with at least 20 mm of space above the unit and 100 mm on either side of the unit. If not, it will not be
possible to attach the unit to the wall.
≥ Be sure that there is enough space above the unit and that the screw hole positions are level with each other before
drilling into the wall.
≥ Be sure to use a spirit level to ensure that both screwing positions are horizontal to each other.
5 Checking the strength of the installation location.
≥ Check the wall strength at the 2 screwing positions. If the strength at any of these positions is lacking,
provide sufficient reinforcement.
jThe position in the wall where the screw is to be attached should be capable of supporting over
20 kg.
Connections
Placement
SCHTB500EGGNGS_RQTX1185-B.book Page 26 Wednesday, July 7, 2010 5:18 PM
