21
Operating Instructions
With the IR Blaster connection, it is possible to send the IR signal received by this unit’s remote control
signal sensor to the TV’s sensor.
Use the TV’s remote control within this unit’s remote control signal sensor’s operation range.
≥For the operation range, refer to page 6.

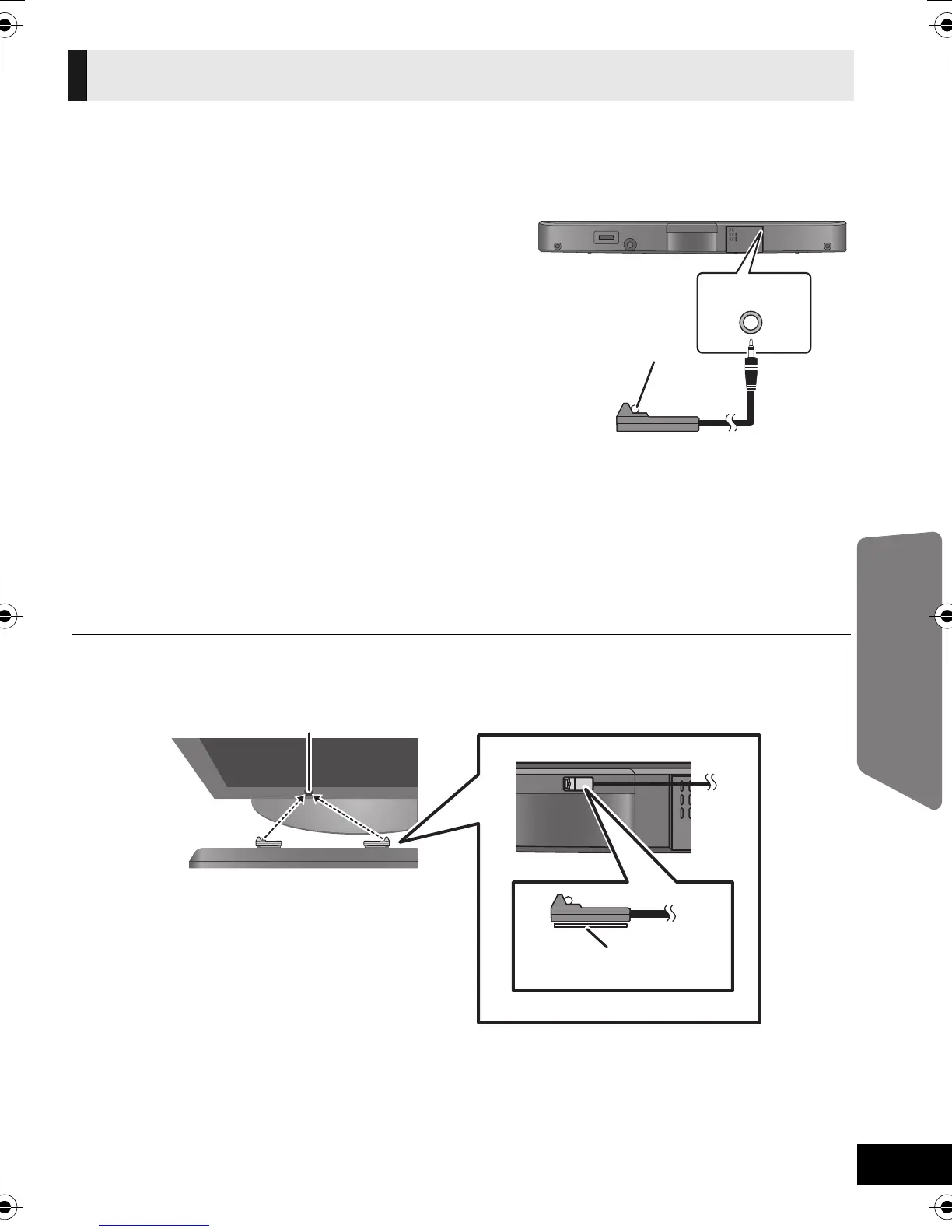

1 Connect the jack plug to this unit’s Ir
SYSTEM terminal.
2 Place the infrared emitter in sight of the
TV’s remote control signal sensor.
≥ For the location of the TV’s remote control signal
sensor, refer to the operating instructions for the TV.
3 Aim the TV’s remote control at this unit’s
remote control sensor and operate the TV.
≥ For the location of this unit’s remote control signal
sensor, refer to page 6.
≥ Make sure to clean the surface, where the adhesive
tape is to be attached.
≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may
remain. Once you have confirmed the TV is operating correctly, secure it by attaching the adhesive
tape.
≥ The supplied IR Blaster is only compatible with Panasonic TVs.
∫ Placement example
On the rear of this unit:
Using the IR Blaster
TV remote control signal sensor
Adhesive tape
SCHTB500EGGNGS_RQTX1185-B.book Page 21 Wednesday, July 7, 2010 5:18 PM
