13
Operating Instructions
≥Connect only after all other connections are complete.
≥This system consumes a small amount of AC power, even when it is turned off (this unit; approx. 0.2 W,
the active subwoofer; approx. 0.4 W). In the interest of power conservation, if you will not be using this
system for a long time, unplug it from the household mains socket.
≥The supplied AC mains lead is for use with this unit and the active subwoofer only.
Do not use it with other equipment. Also, do not use cords for other equipment with this unit or the active
subwoofer.
Turn on the active subwoofer after all connections are complete.
Press [C I, B Í] on the active subwoofer.
A Unit on/off button [C I, B Í]
Use this button to turn the unit on and off.
C I:
The active subwoofer is on
B Í:
The active subwoofer is off
B WIRELESS LINK indicator
≥ Red:
The active subwoofer is on and the wireless link
is deactivated
≥ Green:
The active subwoofer is on and the wireless link
is activated

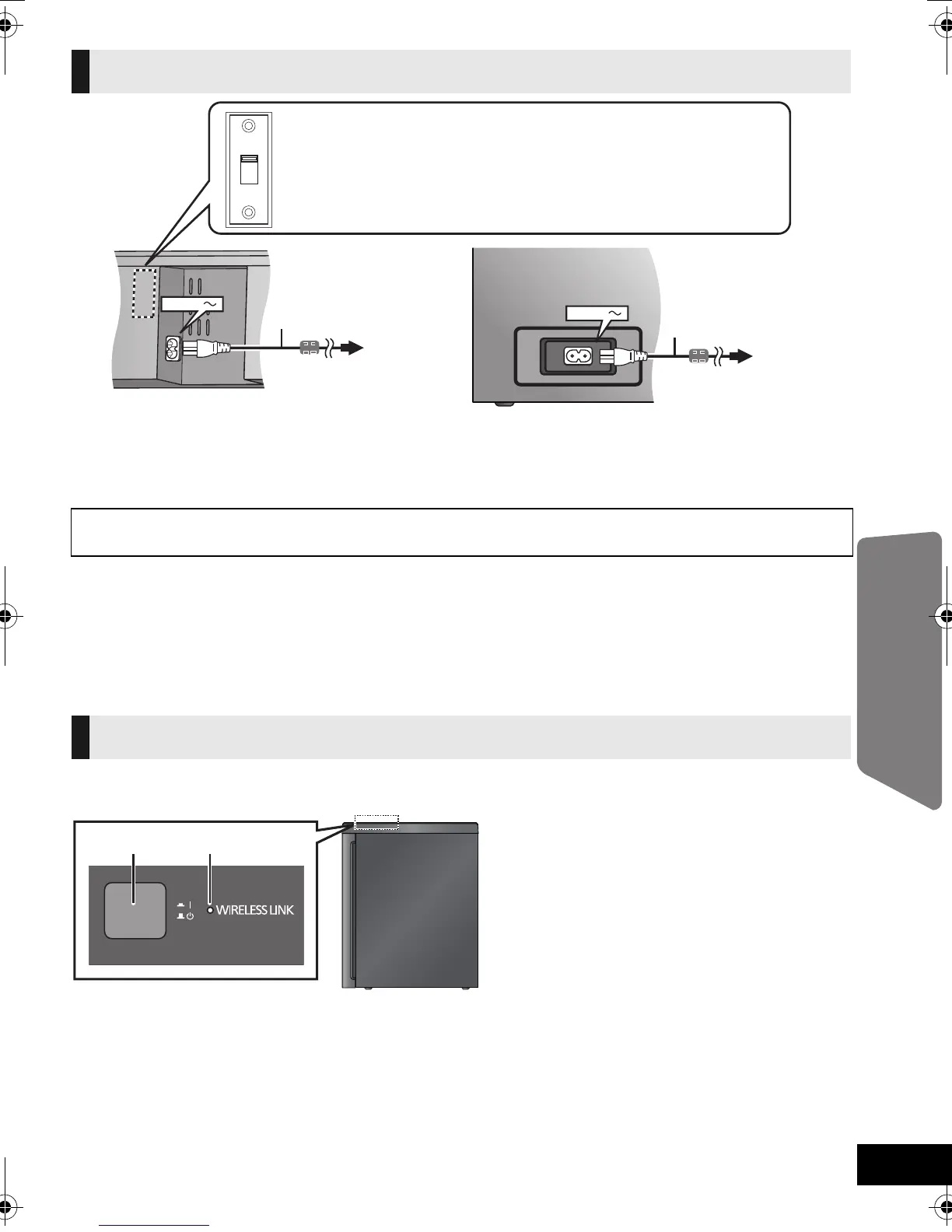

AC mains lead connection
(For Saudi Arabia and Kuwait)
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 22 BEFORE CONNECTION.
AC IN
AC IN
110
−
127V
220
−
240V
VOLT ADJ
A AC mains lead (supplied)
≥ Do not use any other AC mains lead except the supplied one.
B To a household mains socket
Rear of this unit
Rear of the active subwoofer
(For Asia and Africa)
Before connecting the AC mains lead
Set the voltage.
Use a flat-head screwdriver to move the voltage selector to the
appropriate position for the area in which this system is used.
Active subwoofer wireless connection
SCHTB500EGGNGS_RQTX1185-B.book Page 13 Wednesday, July 7, 2010 5:18 PM
