14
Using this unit
Preparation
≥ Turn on the TV.
≥ If VIERA Link is activated on both the connected
TV and this unit, make sure to change the TV’s
settings for this unit. (> 16, “Linked operations
with the TV (VIERA Link “HDAVI Control
TM
”)”)
≥ If VIERA Link is not activated or if the TV is not
compatible with VIERA Link, reduce the volume
of the TV to its minimum.

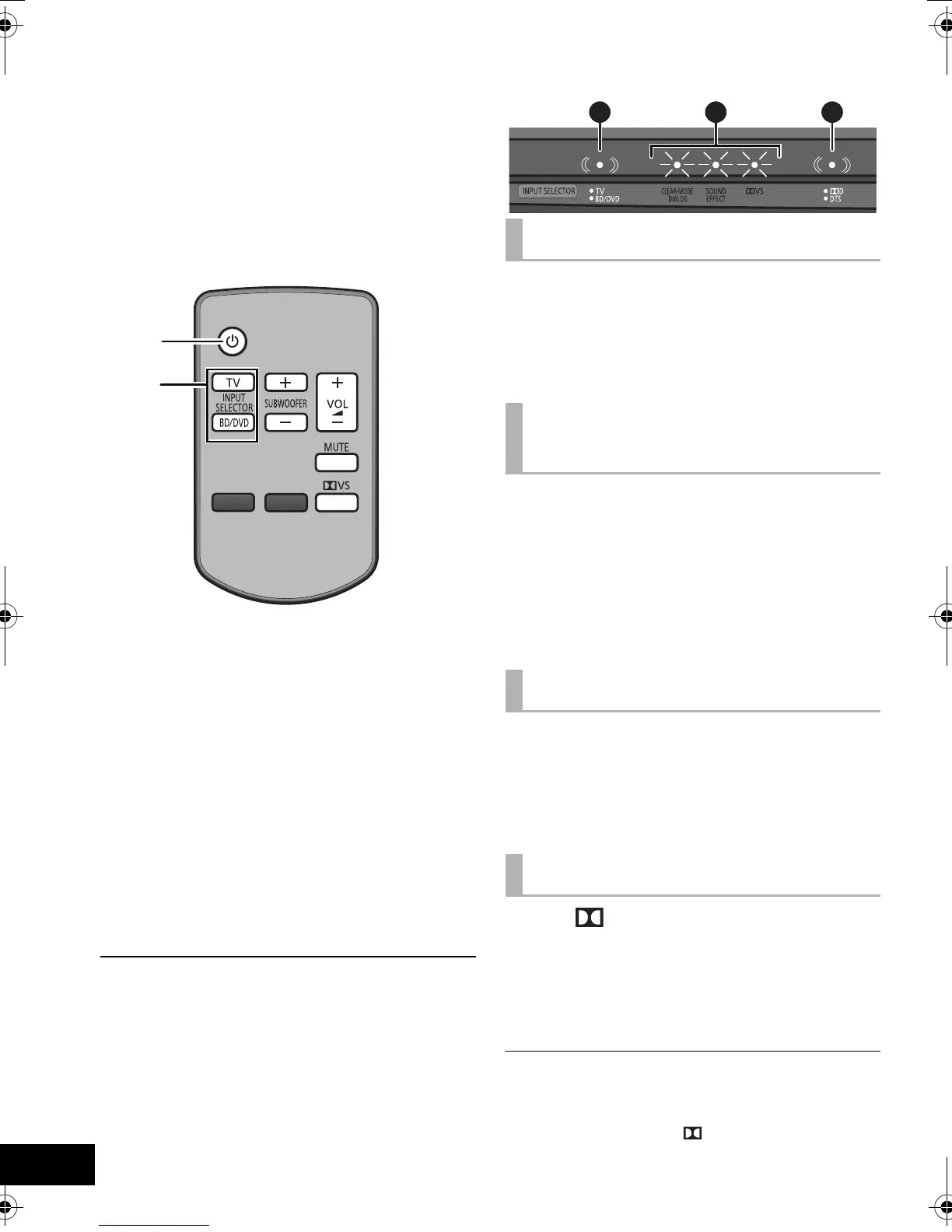

1 Press [Í] to turn on this unit.
≥ The current status (audio source, active
audio effects and audio format) is displayed.
The audio effects and audio format indicator
will turn off after 4 sec.
2 Press [C I, B Í] on the active
subwoofer to turn it on.
≥ Make sure the wireless link indicator lights
green. (> 13)
3 Press [TV] or [BD/DVD] to select
the audio source. (> right)
≥ If you have selected [BD/DVD], make sure to
select the TV’s input channel for this unit and
start the playback.
≥ Before turning off this unit, be sure to reduce the volume.
≥ Even if this unit is turned off, the device connected to the
HDMI AV IN terminal will continue to output audio or video to
the TV.
A The selected audio source is indicated
Green:
When the TV is the audio source
Red:
When the device connected to the HDMI AV IN
terminal is the audio source
Press [i VOL j] to adjust the volume
of the speakers.
Press [i SUBWOOFER j] to adjust
the subwoofer level.
B The indicators blink from left to right (i) or from
right to left (s).
≥ The indicators will not blink when it has reached
the maximum or minimum.
Press [MUTE].
B The indicators blink simultaneously while
muting.
≥ To cancel, press the button again or adjust the
volume.
≥ Muting is cancelled if this unit is turned off.
Press [ VS] to indicate the audio
format.
C The current audio format is indicated for 4 sec.
Green: Dolby Digital
Red: DTS
Off: PCM or LPCM
≥ The audio format status is also indicated for 4 sec if the audio
format on the selected source (TV, Blu-ray Disc/DVD Player,
etc.) is changed.
≥ The Dolby Virtual Speaker ( VS) audio effect status is also
indicated. (> 15)
1
2
Audio source indicator
To adjust the volume/
subwoofer level
To mute the sound
Audio format indicator
