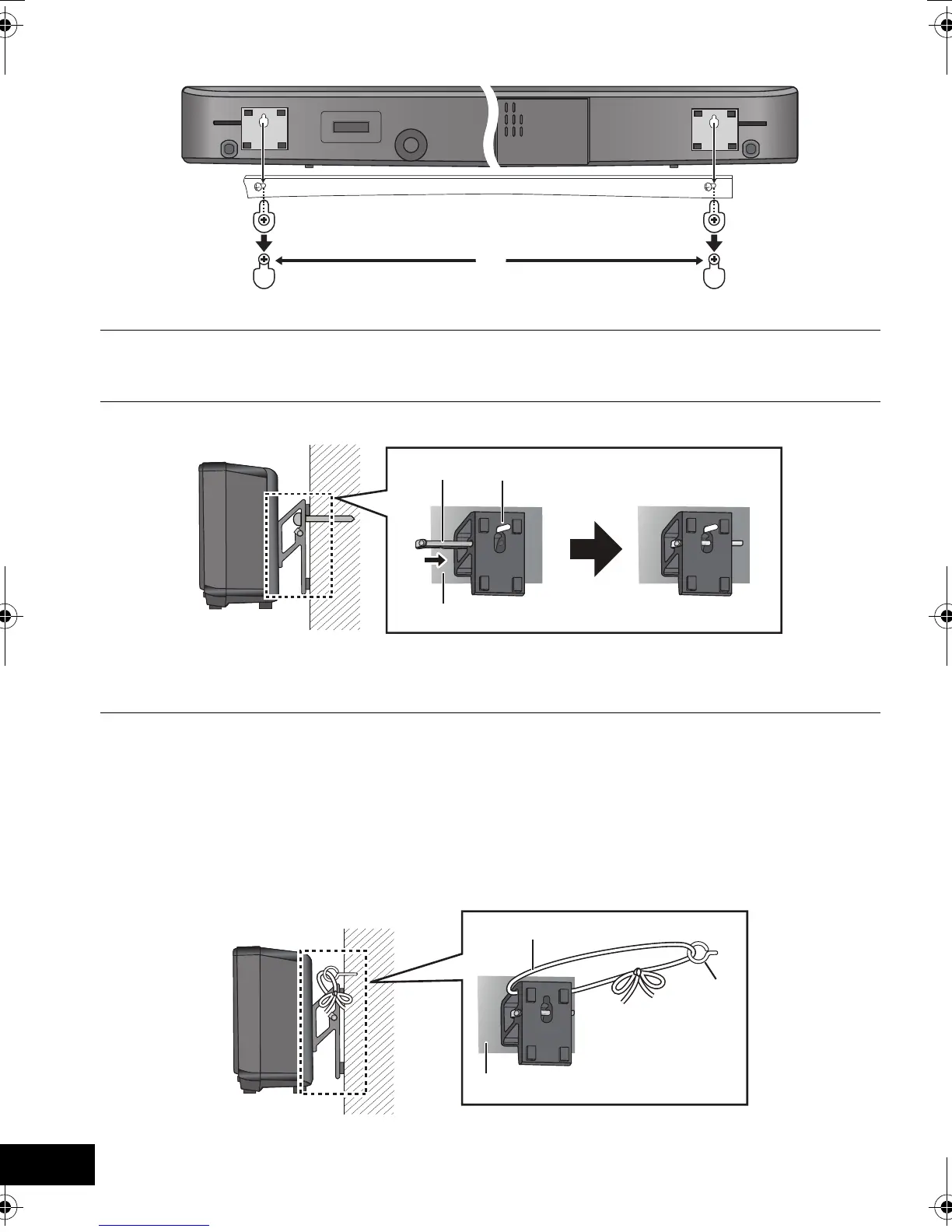

9 Mount the unit securely onto the screws.
A Move this unit so that the screw is in this position.

≥ Be sure that both the wall mount brackets are securely attached to the screws.
≥ If this unit is tilting forward, remove this unit from the screws and adjust by tightening the screws.
10 Push the lock pins fully into place.
A Rear of this unit
B Lock pin (supplied)
C Screw (not supplied)

≥ Be sure to attach both lock pins correctly.
11 Attach the cord to a wall with a screw (not supplied).
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Check the strength of the installation location. The position in the wall where the screw is to be
attached should be capable of supporting over 20 kg. If the strength at any of these positions is
lacking, provide sufficient reinforcement.
A Rear of this unit
B Fall prevention cord (not supplied)
C Screw eye (not supplied)







E.g.,
SCHTB500EGGNGS_RQTX1185-B.book Page 28 Wednesday, July 7, 2010 5:18 PM

Panasonic SC-HTB500 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	4 Ω
Tweeter diameter	65 mm
Soundbar speaker RMS power	120 W
Tweeter diameter (imperial)	2.5 \
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Recommended usage	Home theatre
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	1029 x 58 x 108 mm
Subwoofer dimensions (WxDxH)	250 x 356 x 323 mm
HDMI in	1
Connectivity technology	Wired
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	29 W

Weight and Dimensions

Soundbar weight	2800 g
Subwoofer weight	6700 g
