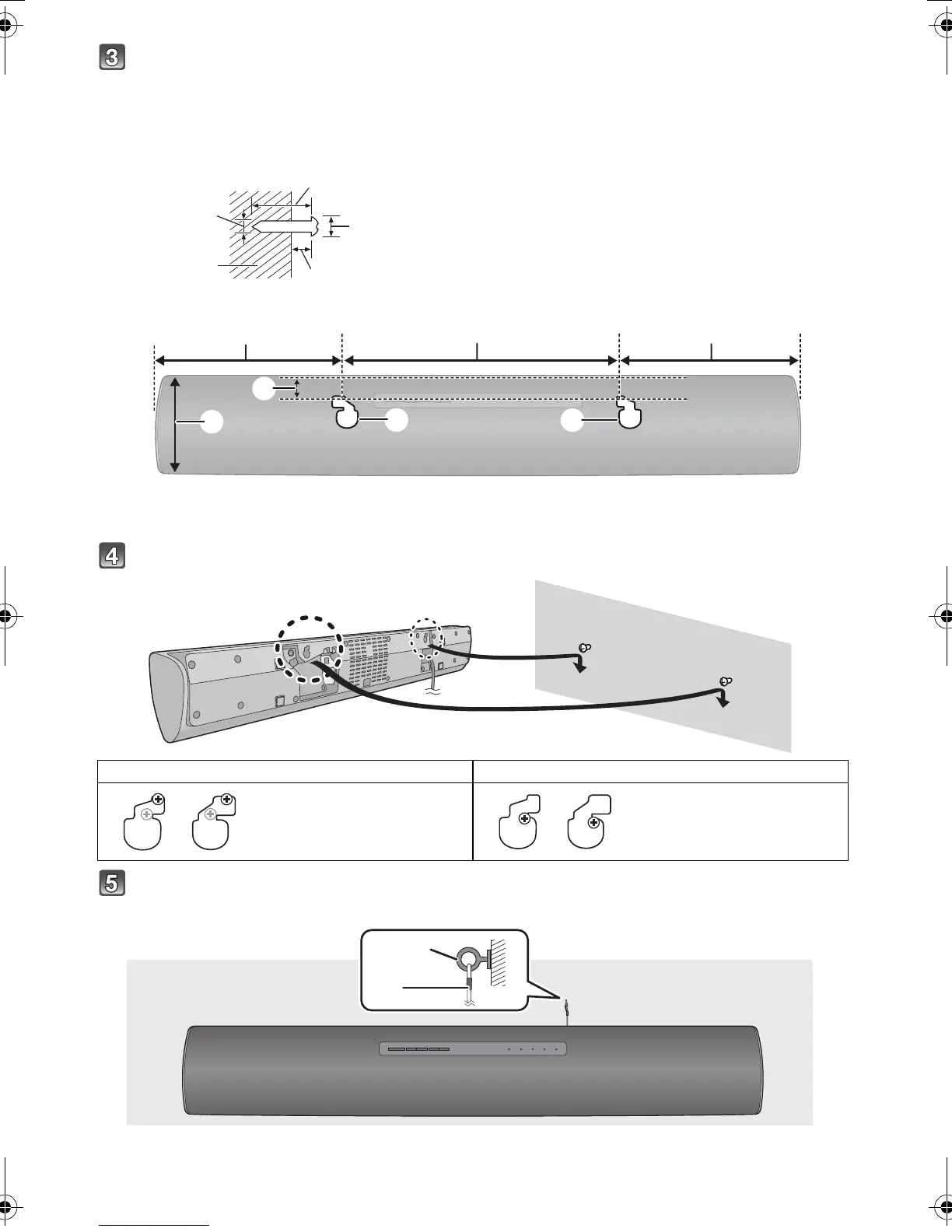

Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Leave at least 10 mm of space on both sides of the main unit. Without sufficient space, it is not possible to mount the
main unit successfully.
≥ Be sure to use a level to insure that both mounting holes are level to each other.
Front view (semi-transparent image)
Fit the main unit securely onto the screw(s).
Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.
M Screw eye
N Cord
B At least 30 mm
C ‰4.0 mm
D ‰7.5 mm to ‰9.4 mm
E Wall or pillar
F 7.5 mm to 8.5 mm
G 320 mm H 215 mm I 215 mm
J 15 mm K 115 mm L Wall mounting hole
DO DO NOT
≥ Move the speaker so
that the screw is in this
position.
≥ In this position, the
speaker will likely fall if
moved to the left or right.











