Panasonic SC-HTB8 - Control Reference Guide; This System (Front); This System (Rear)

6
VQT5J42

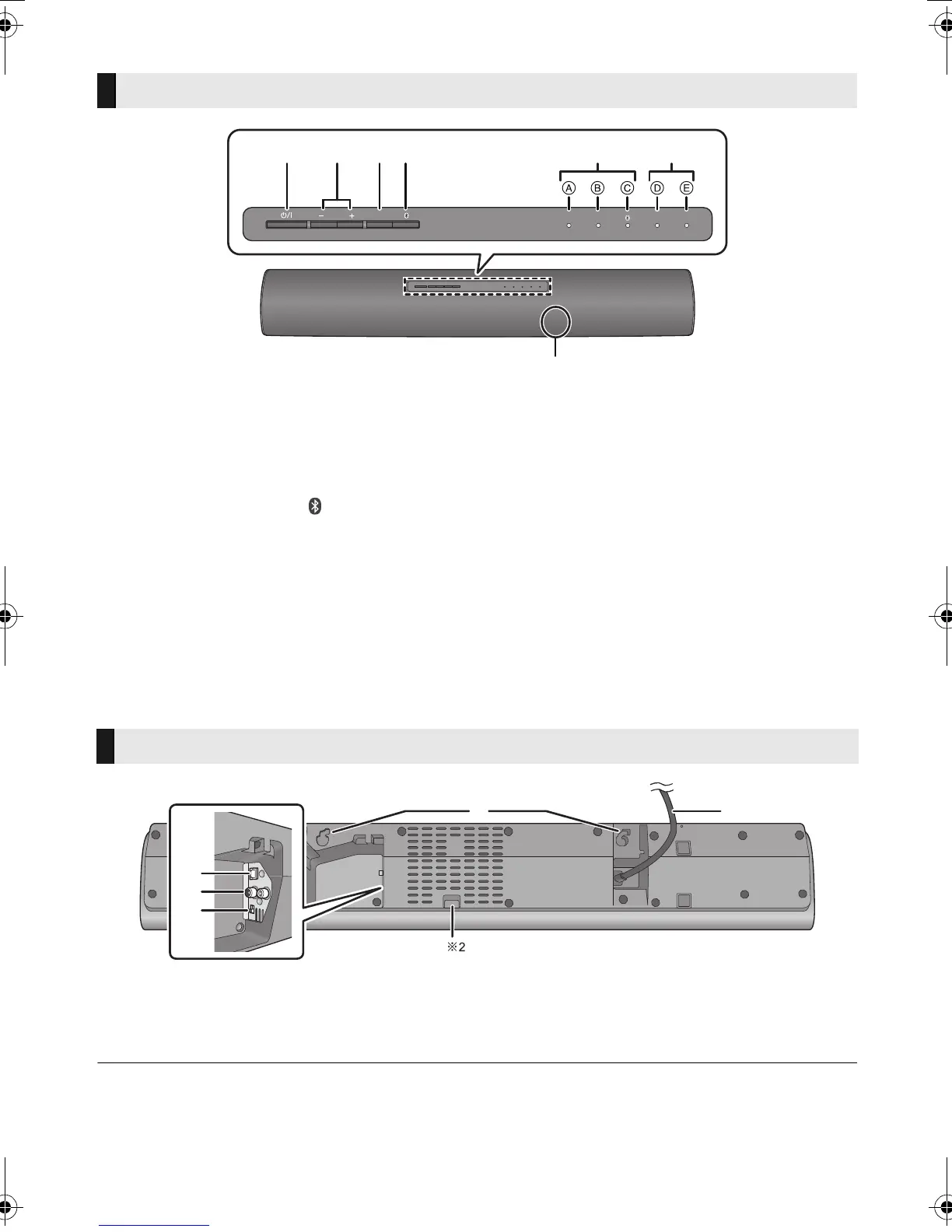

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
2 Adjust the volume of this system (> 15)
3 Select the input source (> 15)
“TV” --# “BD/DVD” --# “ ” (Bluetooth
®
)
^-------------------------------------------------}
4 Select the Bluetooth
®
device as the source
(> 15)
5 Input selector indicators
§1
A TV indicator
Lights green when the TV is the audio source
B BD/DVD indicator
Lights amber when the device connected to the
BD/DVD terminal is the audio source
C Bluetooth
®
indicator
Lights amber when the Bluetooth
®
device is the
audio source
6 Sound mode indicators
§1
D CLEAR VOICE indicator
Lights amber when clear voice is the current
sound mode
E SURROUND indicator
Lights amber when surround is the current
sound mode
7 Remote control signal sensor (> 7)
8 AC mains lead (> 8)
9 Wall mounting hole
10 OPTICAL DIGITAL AUDIO IN terminal (> 8)
11 AUDIO IN terminal (> 8)
12 MULTI ANGLE switch (> 12, 13)
Switch the audio quality according to the placement
method of the main unit.
§1 The indicators will also blink in various conditions. (> 18)
§2 For service use only
This system (Front)
ヷヰロ リワヱヶヵ
⾼
ヱモリンリワヨ
ヵヷ ャュバュヷュ ヤロユモンチヷヰリヤユ ヴヶンンヰヶワュ
1 2 34
56
7
This system (Rear)
10
11
12
89
