Panasonic SC-PM03

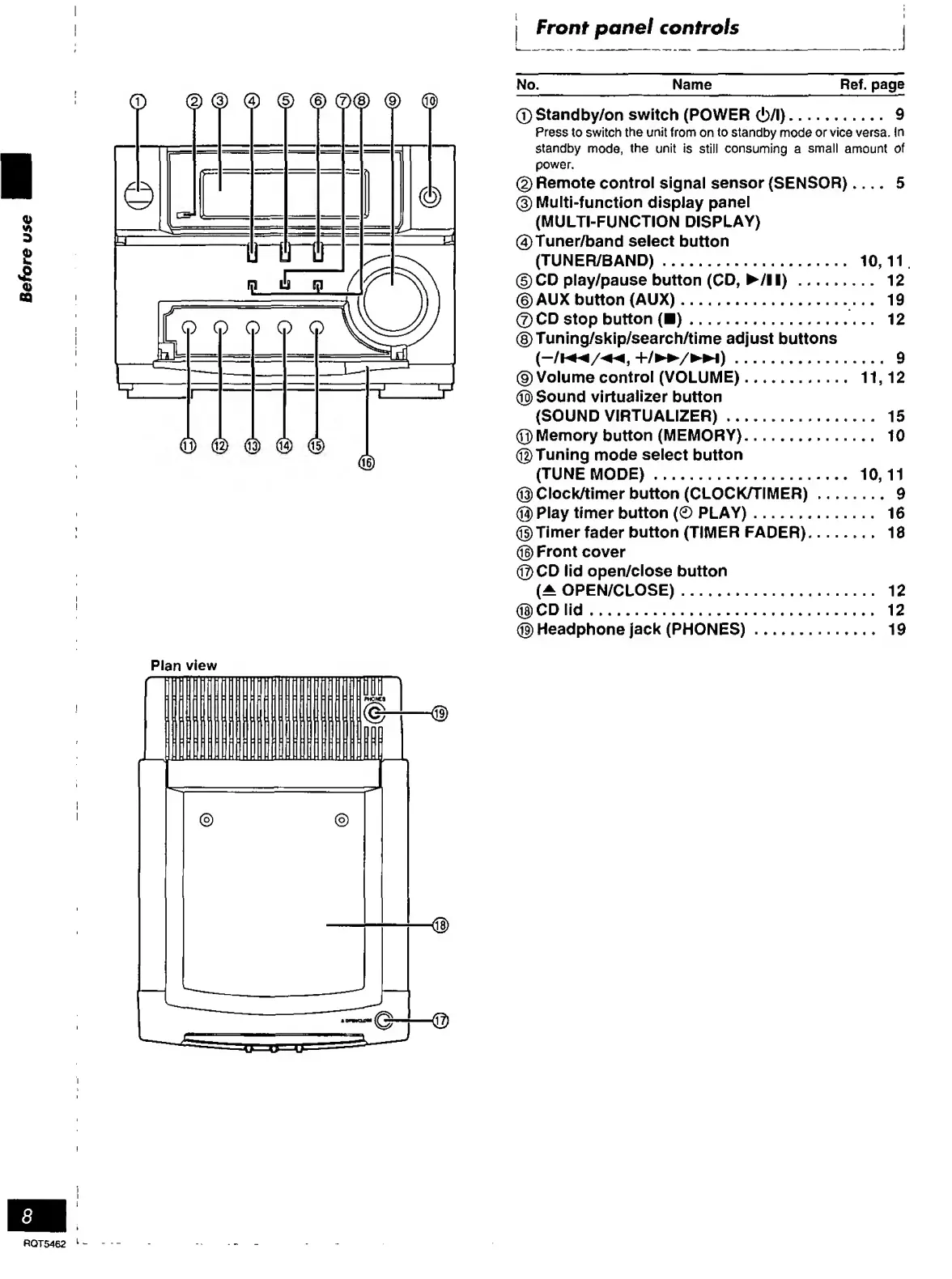

Front panel controls
No. Name Ref. page
© Standby/on switch (POWER (!)/l). 9
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power,
( 2 ) Remote control signal sensor (SENSOR).... 5
@ Multi-function display panel
(MULTI-FUNCTION DISPLAY)
©Tuner/band select button
(TUNER/BAND). 10,11 .
(5) CO play/pause button (CO, ^/l I) . 12
©AUX button (AUX). 19
©CD stop button ( ■ ) . 12
©Tuning/skip/search/time adjust buttons
(-/w-</-*^,-l-/ ► ► / ► ► ^). 9
© Volume control (VOLUME). 11,12
© Sound virtuaiizer button
(SOUND VIRTUALIZER). 15
©Memory button (MEMORY). 10
©Tuning mode select button
(TUNE MODE). 10,11
©Clock/timer button (CLOCK/TIMER). 9
© Play timer button (© PLAY). 16
©Timer fader button (TIMER FADER). 18
® Front cover
© CD lid open/close button
(A OPEN/CLOSE). 12
©CD lid. 12
© Headphone jack (PHONES). 19
