Panasonic SC-PM10 User Manual

RQT6682
6
Before use

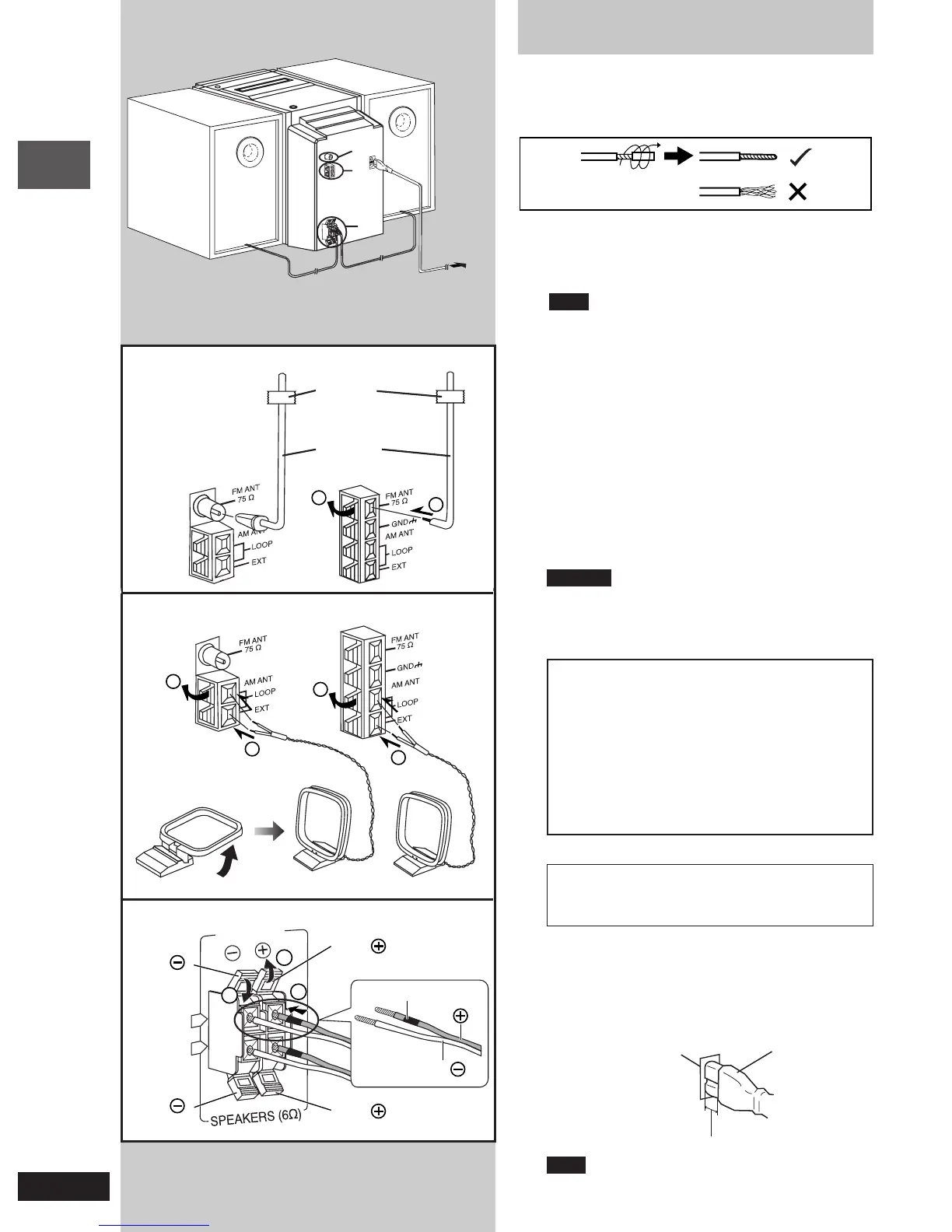

Connections
• Plug the AC mains lead into a household mains socket
only after all other connections have been made.
• To prepare the AM loop antenna wire and speaker cords,
twist the vinyl cover tip and pull off.
1 Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position
where radio signals are received with the least amount
of interference.
Note
For the best reception:
An FM outdoor antenna is recommended. (\ page 7)
2 Connect the AM loop antenna.
After attaching the antenna, turn on the system and
tune in a broadcast station. Put the antenna where the
reception is best and interference is minimal.
3 Connect the speaker cables.
Connect the speaker cords without tags to the black
terminals, so (+) and (–) are correct.
Connect the speaker cords with red tags to the red
terminals, so (+) and (–) are correct.
Never allow the exposed wires to contact each other
when connected.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
The combination of the main unit and speakers provide
the best sound. Using other speakers can damage the
unit and sound quality will be negatively affected.
Caution
• Use the speakers only with the recommended
system.
Failure to do so may lead to damage to the
amplifier and/or the speakers, and may result
in the risk of fire. Consult a qualified service
person if damage has occurred or if you
experience a sudden change in performance.
• Do not attach these speakers to walls or
ceilings.
4 Connect the AC mains lead.
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 4 BEFORE CONNECTION.
Insertion of Connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front part of the
connector may jut out as shown in the drawing.
However there is no problem using the unit.
Appliance inlet
Connector
Approx. 3.5 mm
Note
The included AC mains lead is for use with this unit
only. Do not use it with other equipment.
1
2
3
For Others
AM loop antenna
For Europe
For Europe
Adhesive
tape
FM indoor
antenna
For Others
L
R
(SB-PM10)
3
2
1
1
2
3
Red ( )
Copper
( )
Red tag
Silver ( )
1
2
1
2
2
1
Black ( )
Black ( )
Red ( )
To household
mains socket
RQT6682(2-10).P65 1/2/03, 6:24 PM6

Panasonic SC-PM10 Specifications

Amplifier Section

FTC power output	14W per channel (6 Ω)
RMS power output	15W per channel (6 Ω)
Output impedance - Headphone	16-32 Ω

FM Tuner Section

Frequency range (200 kHz steps)	87.9–107.9 MHz
Frequency range (100 kHz steps)	87.5–108.0 MHz
Sensitivity	2.0 µV (IHF)

AM Tuner Section

Frequency range	520 – 1710 kHz (10 kHz steps)
Sensitivity S/N 20 dB (at 1000 kHz)	560 µV/m

Cassette Deck Section

Tape speed	4.8 cm/s
Wow and flutter	0.15% (WRMS)
Fast forward and rewind time	Approx. 120 seconds with C-60 cassette tape

CD Section

Sampling frequency	44.1 kHz
Beam source/wavelength	Semiconductor laser/780 nm
Wow and flutter	Below measurable limit

Speaker Section

Speaker full range	10 cm (4˝) cone type
Tweeter	6 cm (2 [3]/8˝) cone type
Dimensions (WxHxD)	140 x 225 x 228 mm

General

Power supply	AC 120 V, 60 Hz
Power consumption	38 W
Dimensions (WxHxD)	165 x 228 x 313 mm
