Panasonic SDR-S10P - Using the LCD Monitor

Before using
......••..••...• ", ..••••............... 1

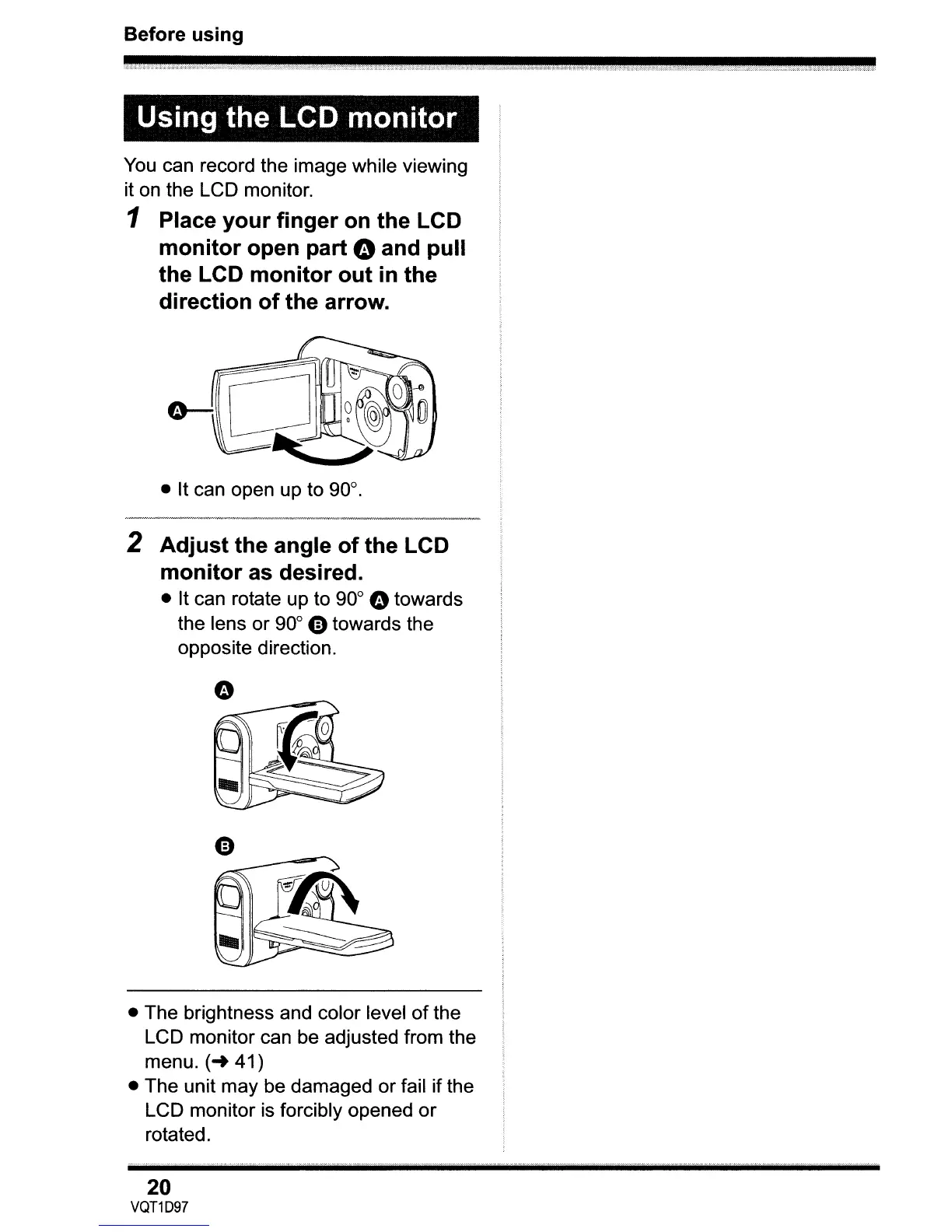

Using the LCD monitor
You can record the image while viewing
it on the LCD monitor.
1 Place your finger on the LCD
monitor open part e and pull
the LCD monitor out in the
direction of the arrow .
• It can open up to 90°.
2 Adjust the angle of the LCD
monitor as desired.
• It can rotate up to 90° G towards
the lens or 90°
e towards the
opposite direction.
• The brightness and color level
of the
LCD monitor can be adjusted from the
menu. (
.. 41)
• The unit may be damaged or fail if the
LCD monitor
is forcibly opened or
rotated.
20
VQT1D97
