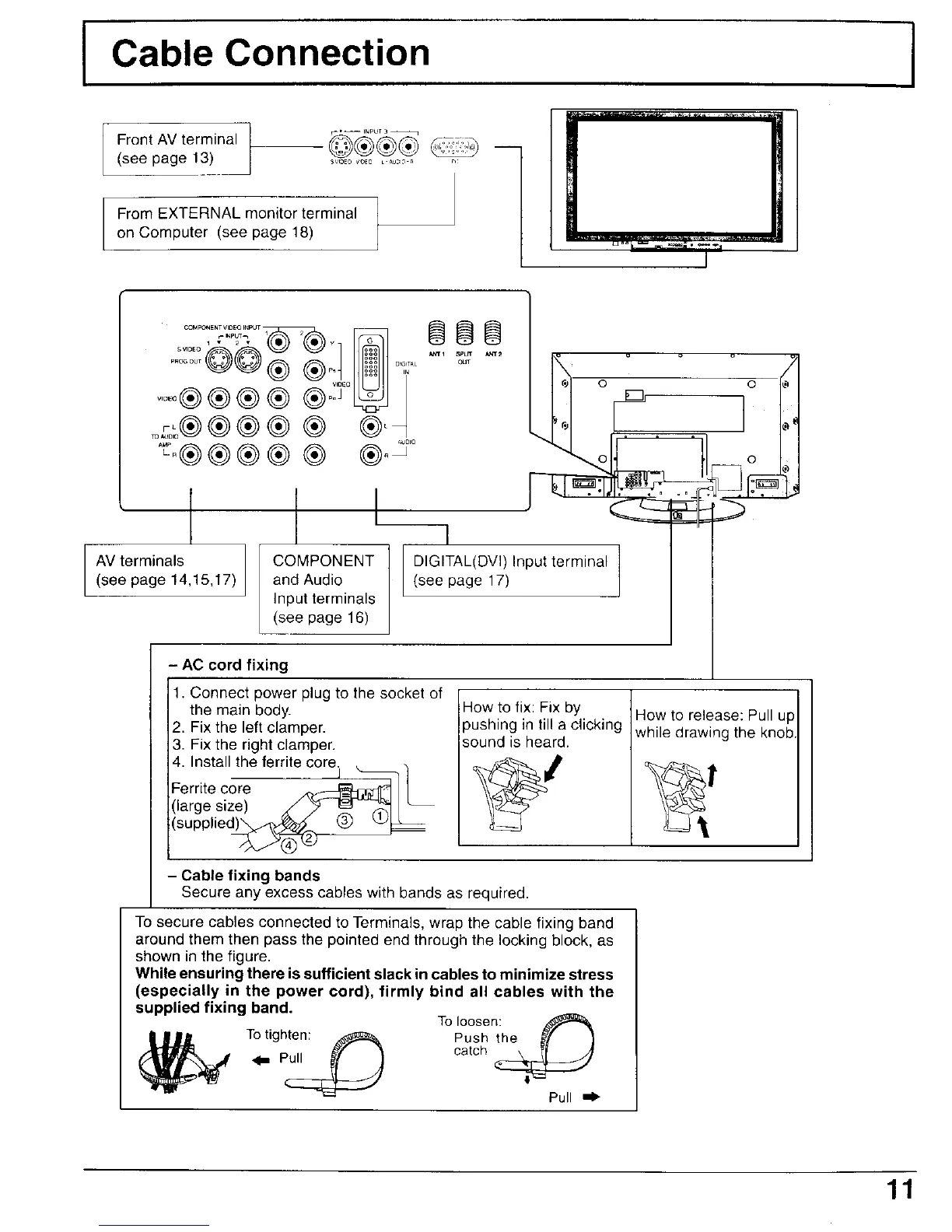

I Cable Connection I
Front AV terminal
(see page 13)
_
SVlOEO v,r_EO L AUdiO n
From EXTERNAL monitor terminal
on Computer (see page 18)
......_® ®-I Illi_lll°'_....
.....
.....®®®® ®o_
_oro_o®®®®® ®_
a_®®®® ® ®_°'°
0 " -- - 0
AV terminals
(see page 14,15,17)
COMPONENT
and Audio
Input terminals
(see page 16)
DIGITAL(DVI) Input terminal
(see page 17)
- AC cord fixing
1. Connect power plug to the socket of
the main body.
2. Fix the left clamper.
3. Fix the right clamper.
4. Install the ferrite _._]_core]
Ferrite core -/_-_ 1
(large.size) _/ _ _ _
(supphed)_ _ Lt._=
How to fix: Fix by
!pushing in till a clicking
sound is heard.
How to release: Pull up
while drawing the knob
- Cable fixing bands
Secure any excess cables with bands as required.
To secure cables connected to Terminals, wrap the cable fixing band
around them then pass the pointed end through the locking block, as
shown in the figure.
While ensuring there is sufficient slack in cables to minimize stress
(especially in the power cord), firmly bind all cables with the
supplied fixing band.
Totighten:
To loosen:
Push the #f 1
catch
Pull _1_
11
