Panasonic TH-37PA20

Cable Connection

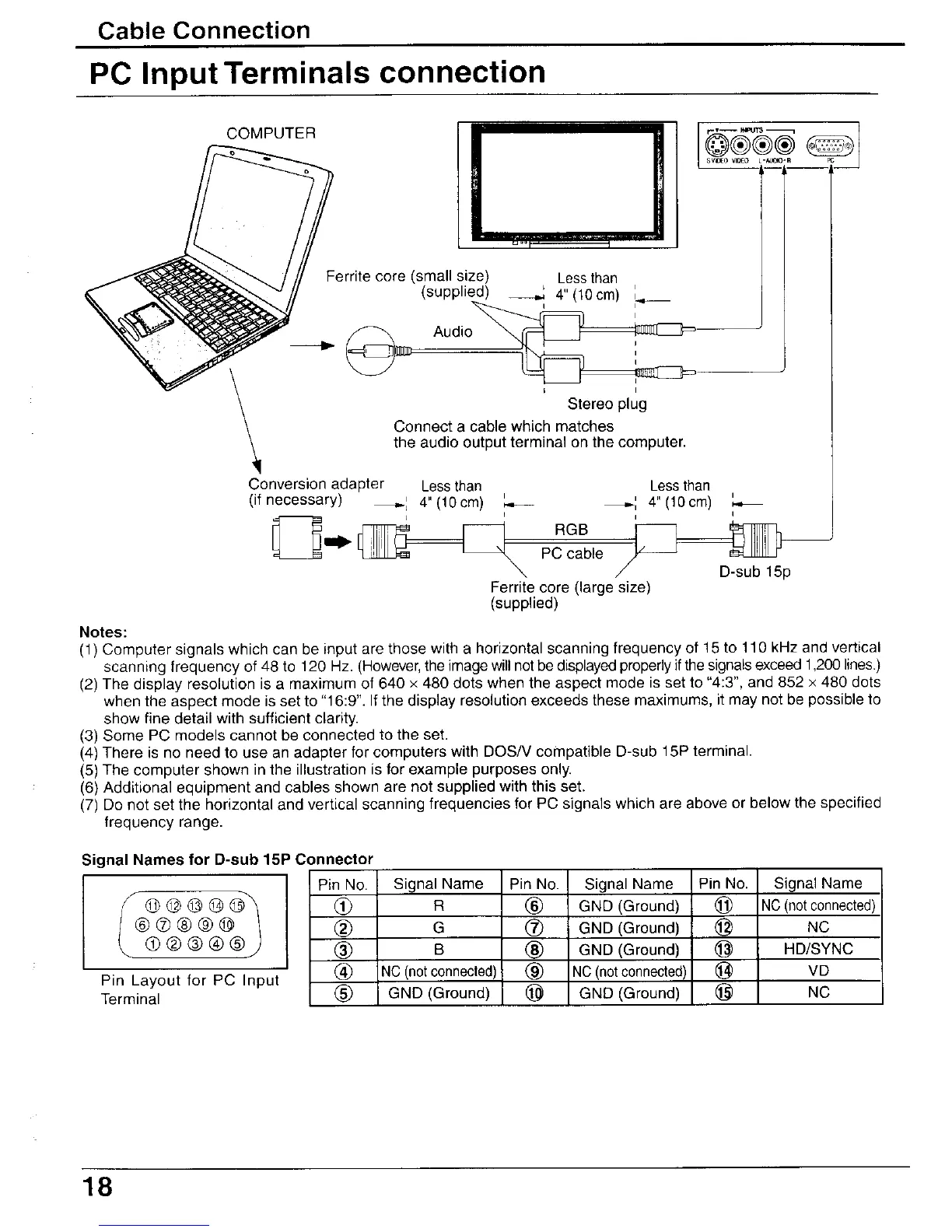

PC Input Terminals connection
COMPUTER
_errite core (small size) Lessthan
(supplied) _ 4"(10cm) _,__
_'__._/ _ Audio _--_ _
\ Stereo plug
\ Connect a cable which matches
the audio output terminal on the computer.
Conversion adapter Less than Less than
(if necessary) _[ 4"(10cm) _ _', 4"(10cm)
RGB
PC cable
Ferrite core (large size)
(supplied)
Notes:
(1) Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical
scanning frequency of 48 to t 20 Hz. (However, the image will notbe displayed properly ifthe signals exceed 1,200 lines.)
(2) The display resolution is a maximum of 640 x 480 dots when the aspect mode is set to "4:3", and 852 x 480 dots
when the aspect mode is set to "16:9". If the display resolution exceeds these maximums, it may not be possible to
show fine detail with sufficient clarity.
(3) Some PC models cannot be connected to the set.
(4) There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminal.
(5) The computer shown in the illustration is for example purposes only.
(6) Additional equipment and cables shown are not supplied with this set.
(7) Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
Signal Names for D-sub 15P Connector
I Pin No. Signal Name
® a
Pin Layout for PC Input @ NC (not connected)
Terminal (_) GND (Ground)
Pin No.
®
Q
®
®
®
Signal Name Pin No. Signal Name
GND (Ground) @ NO(notconnected)
GND (Ground) @ NC
GND (Ground) _) HD/SYNC
NC (notconnected) ® VD
GND (Ground) (_ NC
18
