Panasonic TH-37PA20

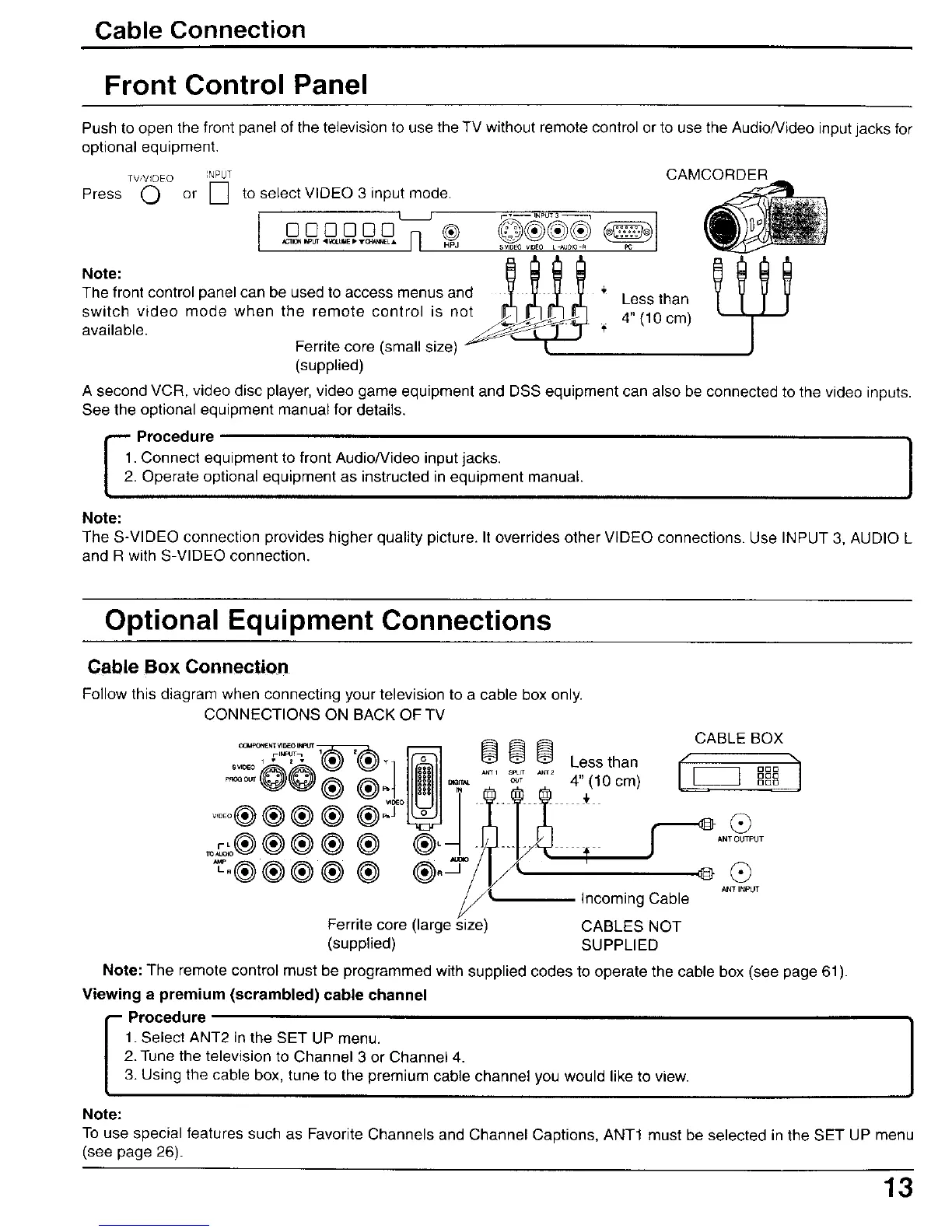

Cable Connection
Front Control Panel
Push to open the front panel of the television to use the TV without remote control or to use the Audio/Video input jacks for
optional equipment•
TV,VOEO INPUT
Press O or I I to select VIDEO 3 input
mode,
SVlDEO VIDEO L _U[_IO
Note: _ _ _ _
Thefrontcontrolpanelcanbeusedtoaccessmenusand _y_y_y_?
switch video mode when the remote control is not rljlVq_ _ ['q
available. __S__
Ferrite core (small size) _ !,
(supplied)
Less than
4" (10 cm)
CAMCORDER
A second VCR, video disc player, video game equipment and DSS equipment can also be connected to the video inputs.
See the optional equipment manual for details.
_2 rocedure
•Connect equipment to front Audio/Video input jacks.
• Operate optional equipment as instructed in equipment manual.
]
Note:
The S-VIDEO connection provides higher quality picture. It overrides other VIDEO connections. Use INPUT 3, AUDIO L
and R with S-VIDEO connection.
Optional Equipment Connections
Cable Box Connection
Follow this diagram when connecting your television to a cable box only.
CONNECTIONS ON BACK OF TV
0o._._,.._,_,
.....® ® ® ® ®:r°
o_®®®® ® ®_-
_°®®®® ® ®°_"
//
Ferrite core (large size)
(supplied)
0 0 0 Less than CABLE BOX
At_11
_7 _,, 4"(10cm)
_ Incoming Cable
CABLES NOT
SUPPLIED
Note: The remote control must be programmed with supplied codes to operate the cable box (see page 61).
Viewing a premium (scrambled) cable channel
I rocedure
1.Select ANT2 in the SET UP menu.
2.Tune the television to Channel 3 or Channel 4.
3. Using the cable box, tune to the premium cable channel you would like to view.
I
Note:
To use special features such as Favorite Channels and Channel Captions, ANT1 must be selected in the SET UP menu
(see page 26).
13
