H-Freq.
V-Freq.
kHz
Hz
63.98
60.02
Signal Format
1280×1024/60
Sync
Signal
[
RGB
]
Cinema reality
XGA Mode
Auto
Off
Auto
HDMI Range
Auto
H-Freq.
Dot Clock Freq.
kHz
MHz
63.98
108.0
V-Freq. Hz
60.02
Signal Format 1280×1024/60
40
This function operates only during input from PC IN terminal.
Select Signal from the “Setup” menu during RGB or Component input signal.
Setting RGB sync signal
Confi rm that the input is set to RGB input (this setting is valid only for RGB input signal).
Auto:
The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.
Setting Component sync signal
Confi rm that the input is set to Component input (this setting is valid only for Component input signal).
Auto:
The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on Y: Uses a synchronized signal on the Video Y signal, which is input from the Y connector.
Note:
Signals input to COMPONENT/RGB IN terminals correspond to Sync on G or Sync on Y.
Sync

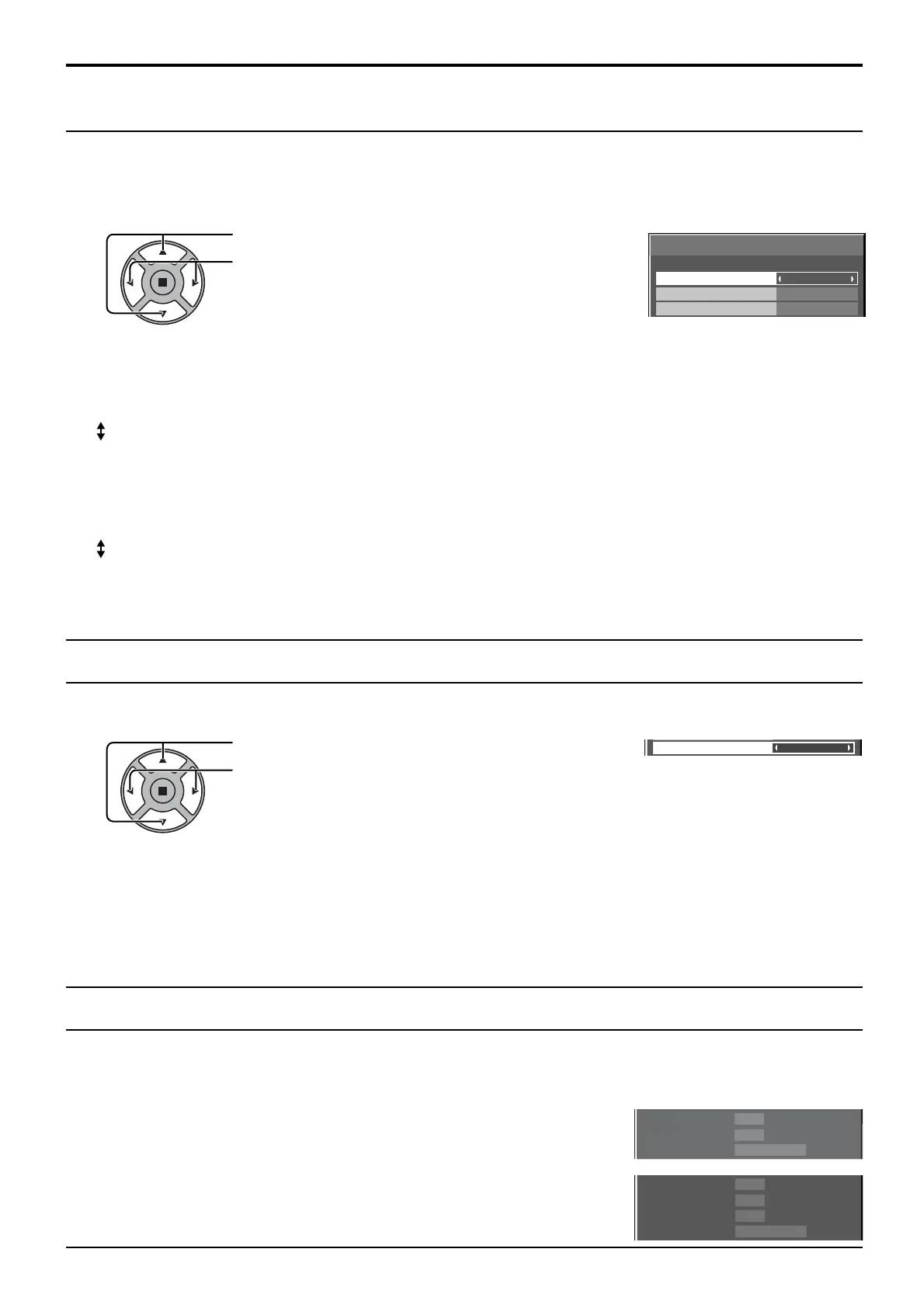

Setup for Input Signals
Press to select the “Sync”.
Press to adjust.
Press to select the “HDMI Range”.
Press to select “Video(16-235)”, “Full(0-255)”, “Auto”.
Displays the frequency and the type of the current input signal.
This display is valid only for Component / RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
The dot clock frequency is displayed during DVI signal input.
Switches the dynamic range according to the input signal from HDMI terminal.
Input signal display
HDMI Range
Video(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player
Full(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer
Auto: Switches the dynamic range automatically between “Video(16-235)” and “Full(0-255)” according to
the input signal.
Note:
This function can be set only for HDMI terminal input.
To Next Page
